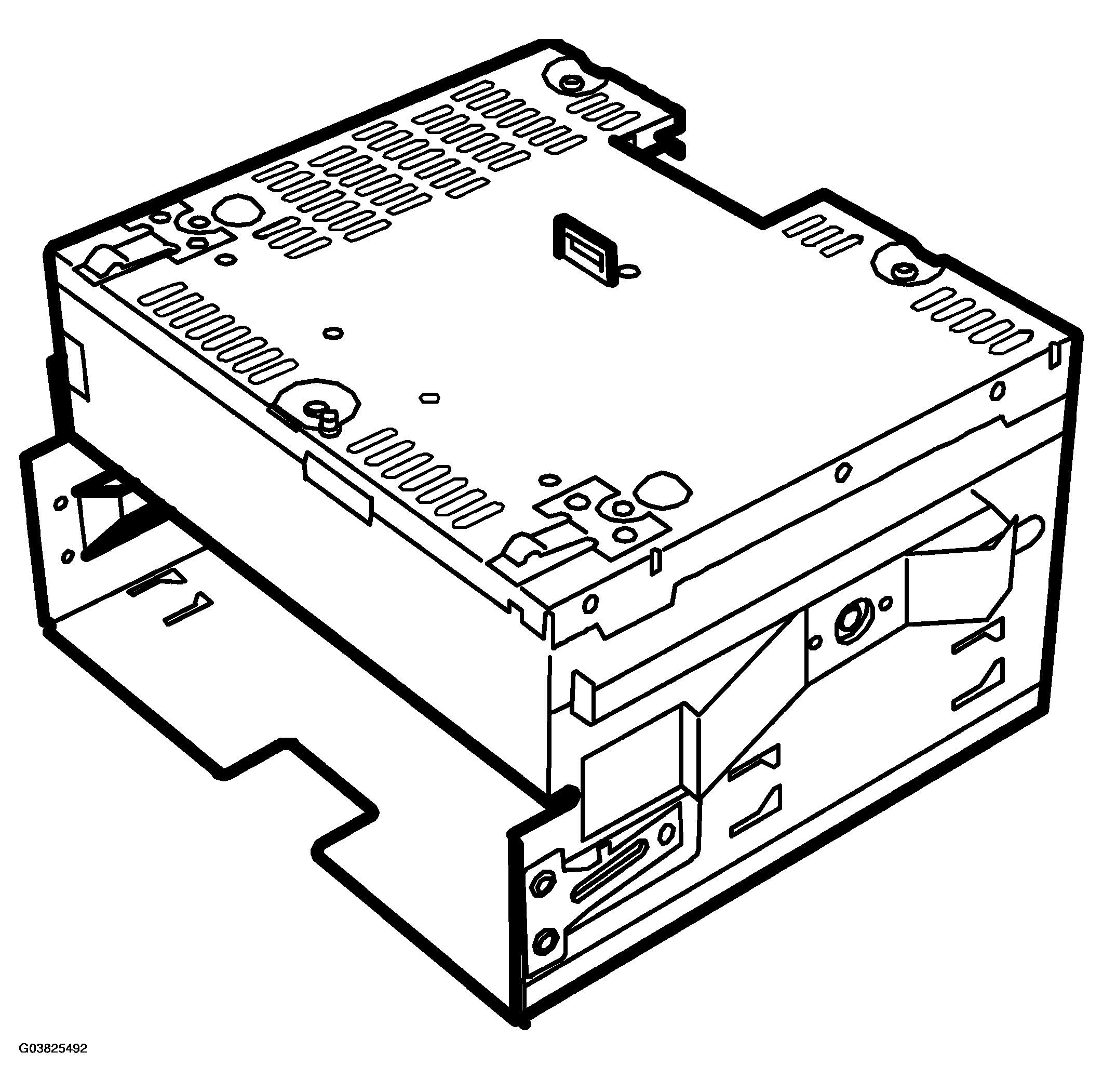

Entertainment head unit
ENTERTAINMENT HEAD UNIT SPECIFICATION
| Make | Clarion | |
| Number of pins | 40 + 4 MOST-fibres | |
| Power supply +30 | pin No. | 16 |
| Ground | pin No. | 12 |
| Instrument bus, O-BUS (sender) | pin No. | 2 |
| Instrument bus, O-BUS (receiver) | pin No. | 1 |
| Tuning system: | PLL | |
| Frequency range (EU): | FM AM |
87.5 - 108.0 MHz. 531 - 1602 kHz |
| Frequency range (US/AP): | FM AM |
87.9 - 107.9 MHz. 530 - 1710 kHz |
| Frequency range (JP): | FM AM |
76.0 - 90.0 MHz. 522 - 1629 kHz |
| Frequency response (EU): | FM (Auto/Man) AM (Auto/Man) |
100/50 kHz 9/9 kHz |
| Frequency response (US/AP): | FM (Auto/Man) AM (Auto/Man) |
200/200 kHz 10/10 kHz |
| Frequency response (JP): | FM (Auto/Man) AM (Auto/Man) |
100/100Hz 9/9 kHz |
| Rest mode power consumption | mA | 0.06 |
| Max. current consumption: | A | 15 |
