To remove

  1. Remove the cable kit connector (1). Detach and pull away.

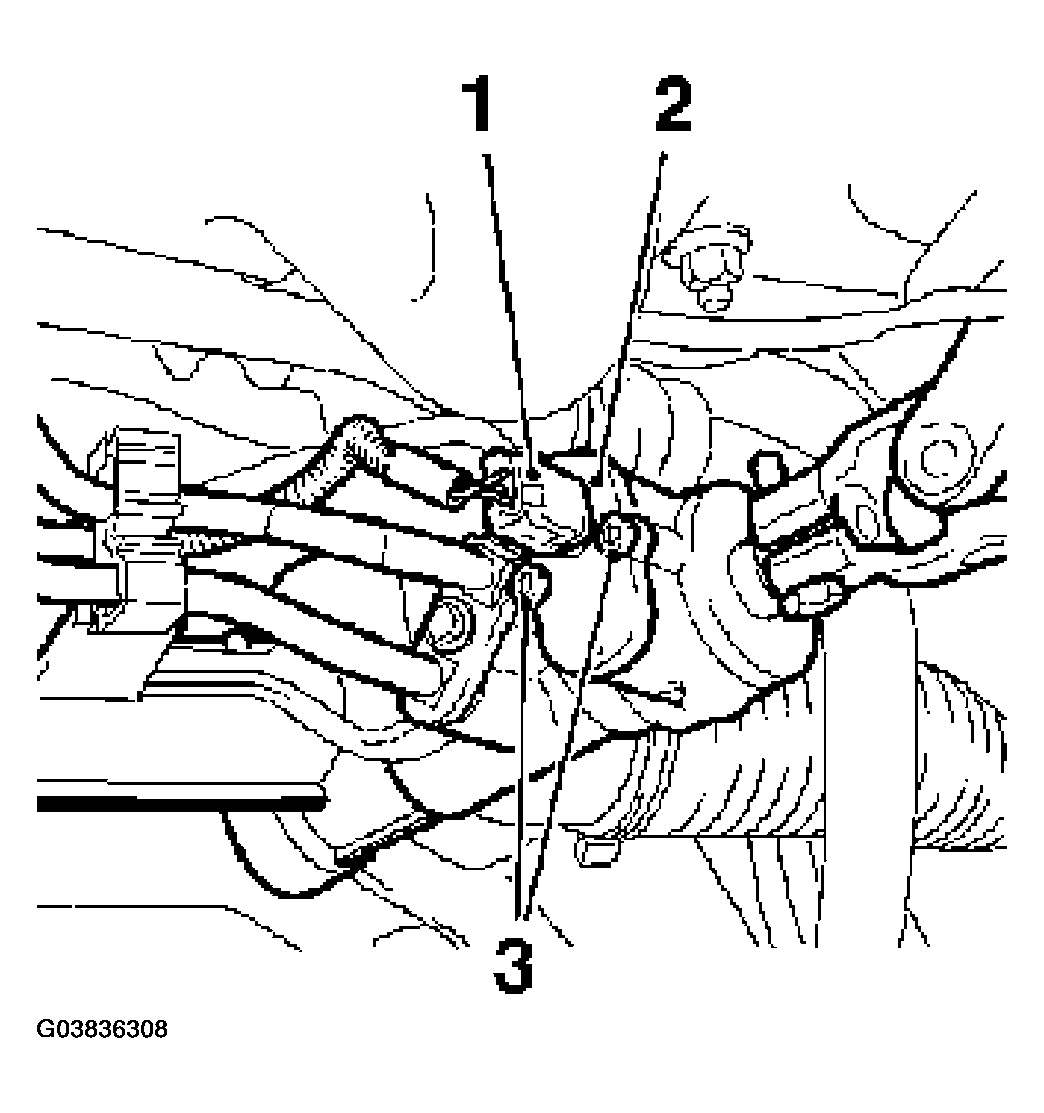

    Fig 1: Removing Steering Angle Sensor - Changing (EHPS)
    G03836308Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the steering angle sensor (2). Pull the steering angle sensor from the steering gear housing.
  3. Clean the sealing surface.
