Engine oil level switch (243), T8: Connection

PIN DESCRIPTION

Pin No. Signal type Description
1 Signal The level switch is supplied with 5V via a resistor from ECM pin 54(A).
Sufficient oil = 0V.
2 Ground Sensor's ground.

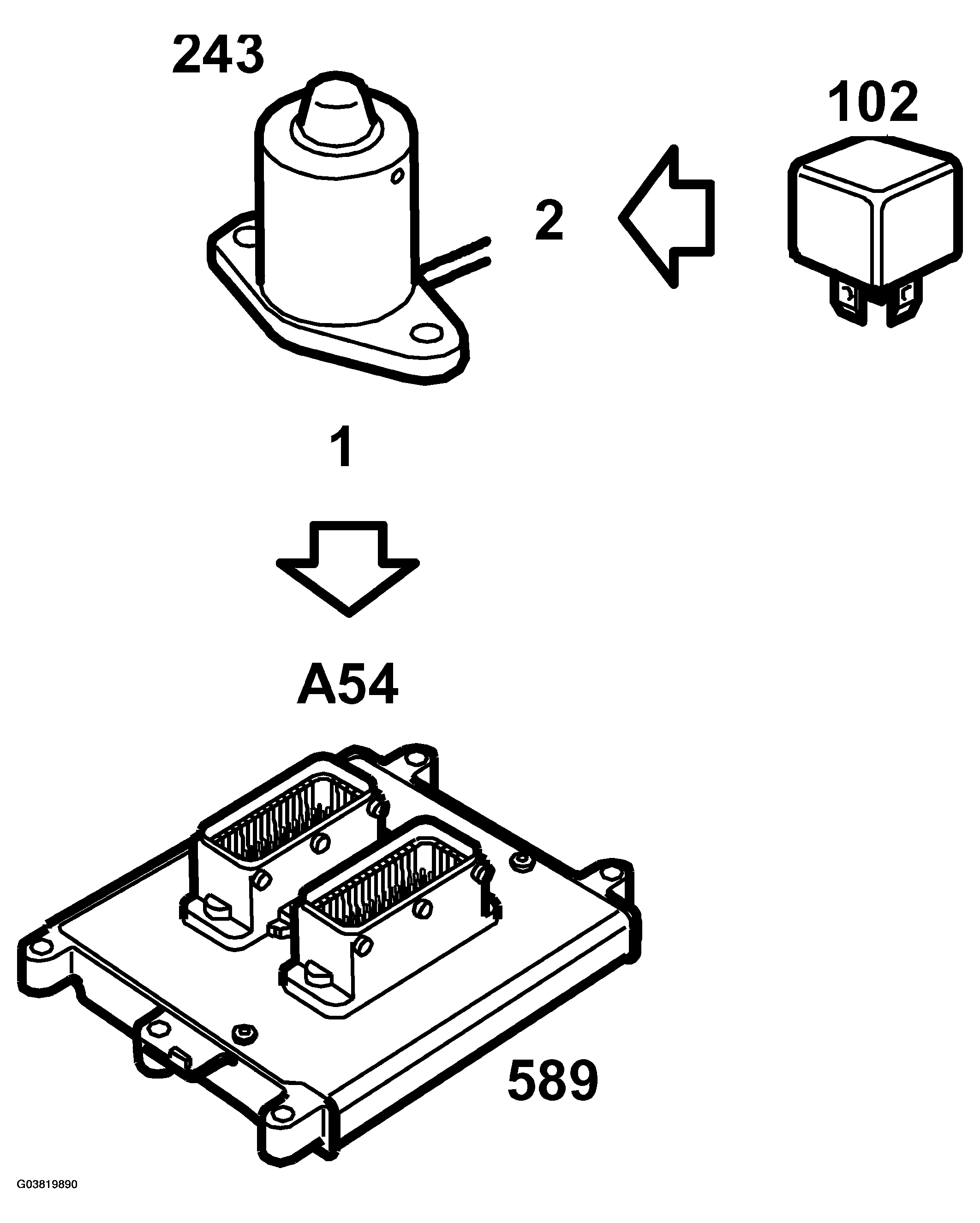

Fig 1: Identifying Engine Oil Level Switch Connector
G03819890Courtesy of SAAB-SCANIA OF AMERICA, INC.

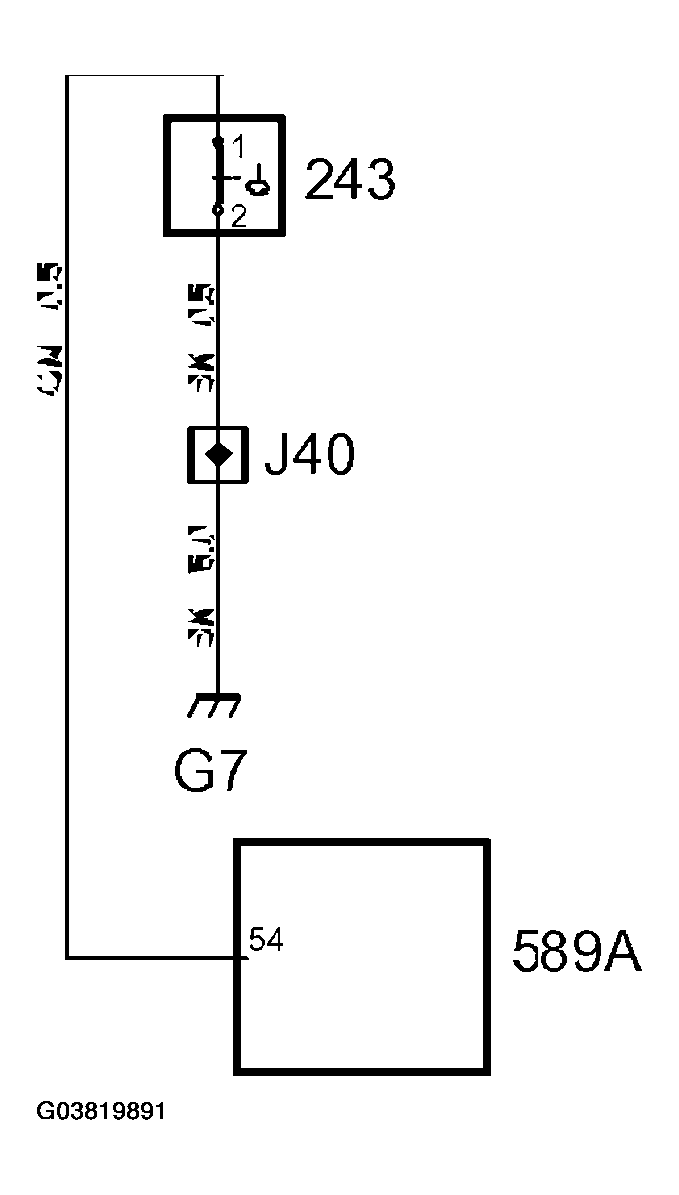

Fig 2: Engine Oil Level Switch Wiring Diagram
G03819891Courtesy of SAAB-SCANIA OF AMERICA, INC.
