Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Component location >> Intake air sensor (688) >> Location:

Intake air sensor (688): Location:

on the charge air pipe

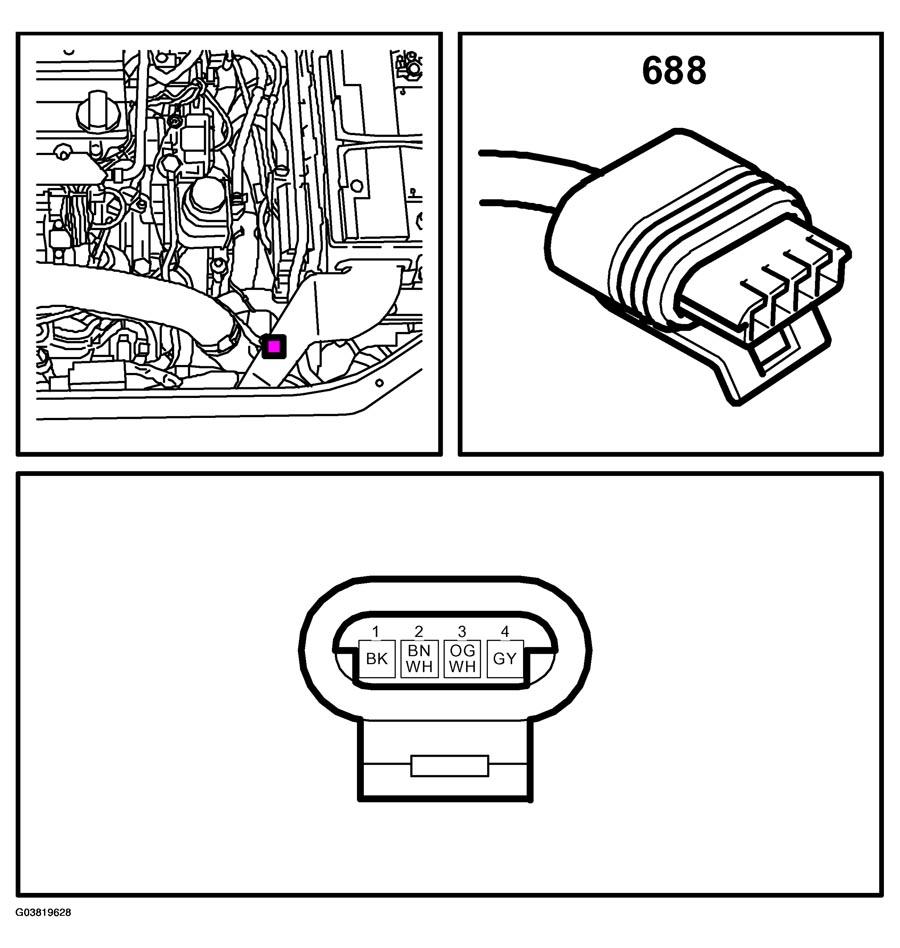

Fig 1: Identifying Intake Air Sensor - T8 Connector

G03819628

Courtesy of SAAB-SCANIA OF AMERICA, INC.
