Front load angle sensor (704F)

Location:  by the left front axle

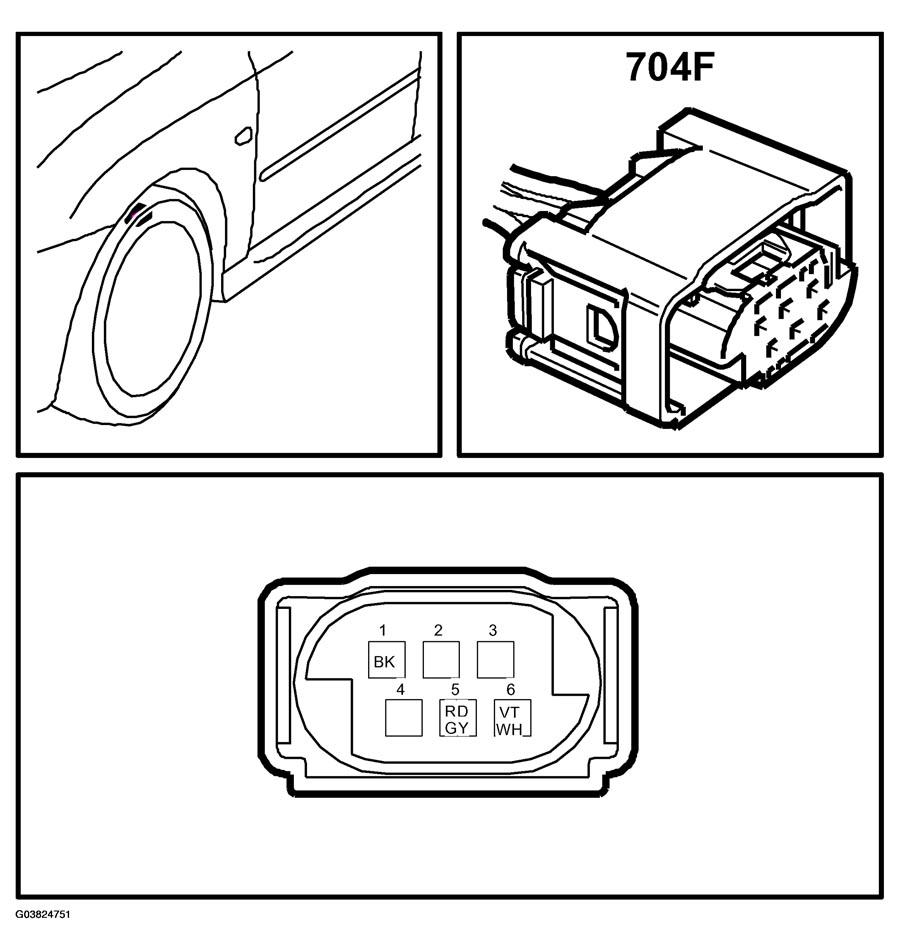

Fig 1: Identifying Connector Location - Front Load Angle Sensor (704F)
G03824751Courtesy of SAAB-SCANIA OF AMERICA, INC.
