Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Fault diagnosis, symptoms >> Memory seat cannot be operated manually >> Notes

Memory seat cannot be operated manually: Notes

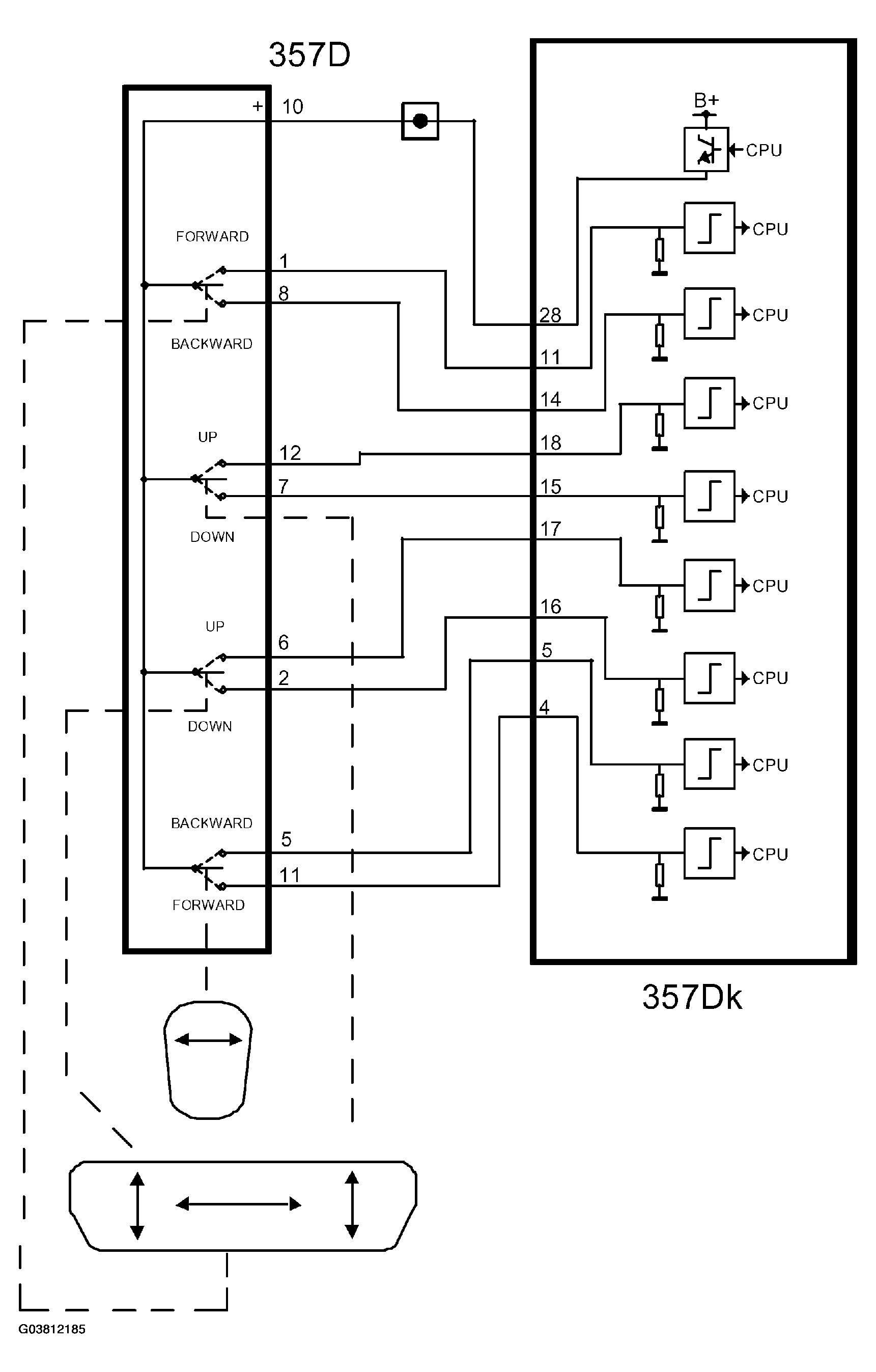

Fig 1: Circuit Diagram - Memory Seat Cannot Operated Manually

G03812185

Courtesy of SAAB-SCANIA OF AMERICA, INC.
