Reservoir Tank: Installation

Install the reservoir tank to bracket.

Connect the pipes D to return hose and suction hose to oil pump.

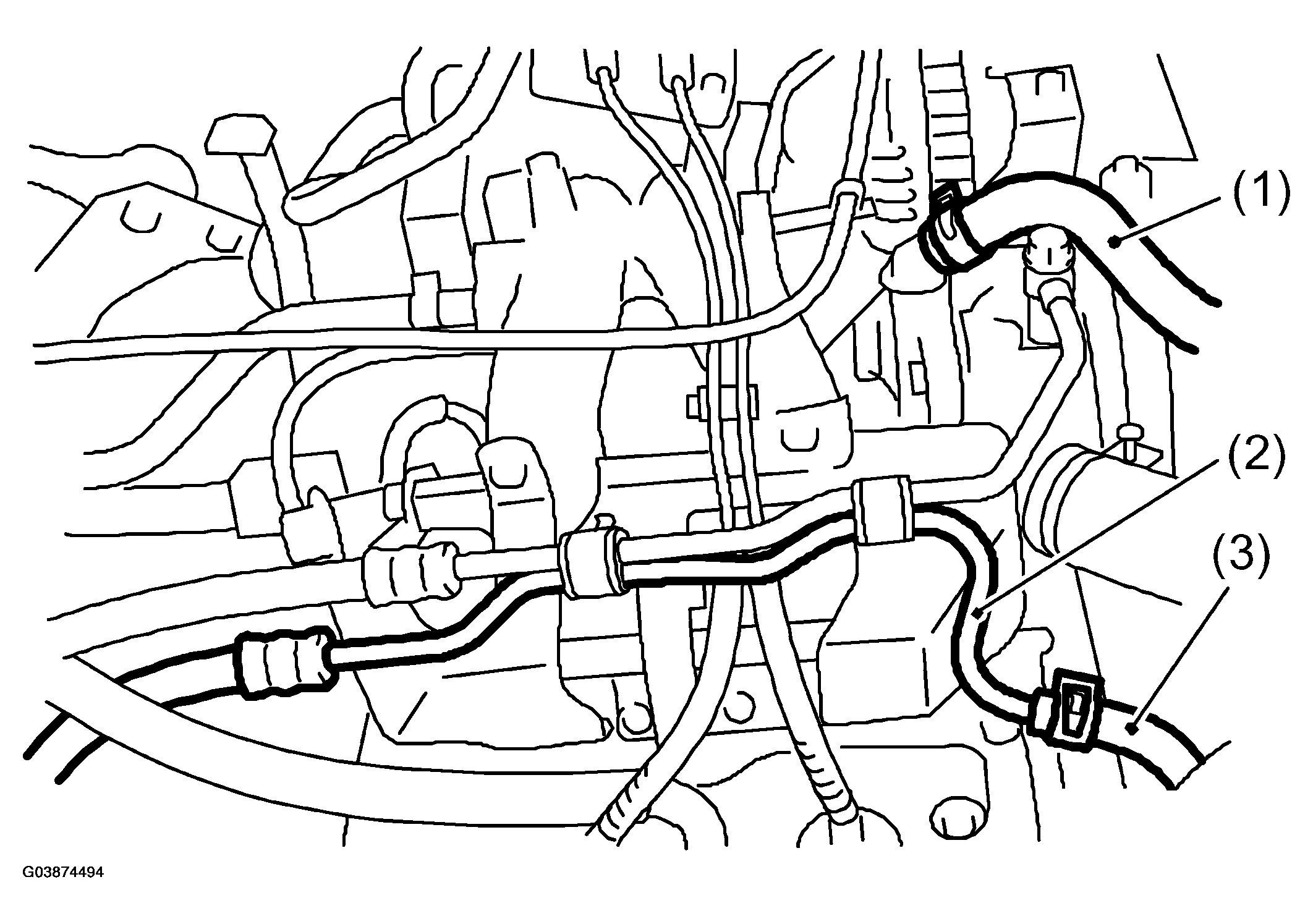

Fig 1: Connecting Pipes D To Return Hose And Suction Hose To Oil Pump

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Suction hose
2. Pipe D
3. Return hose

Feed the power steering fluid to the specified level.
