Stop Light & Brake Switch: Inspection

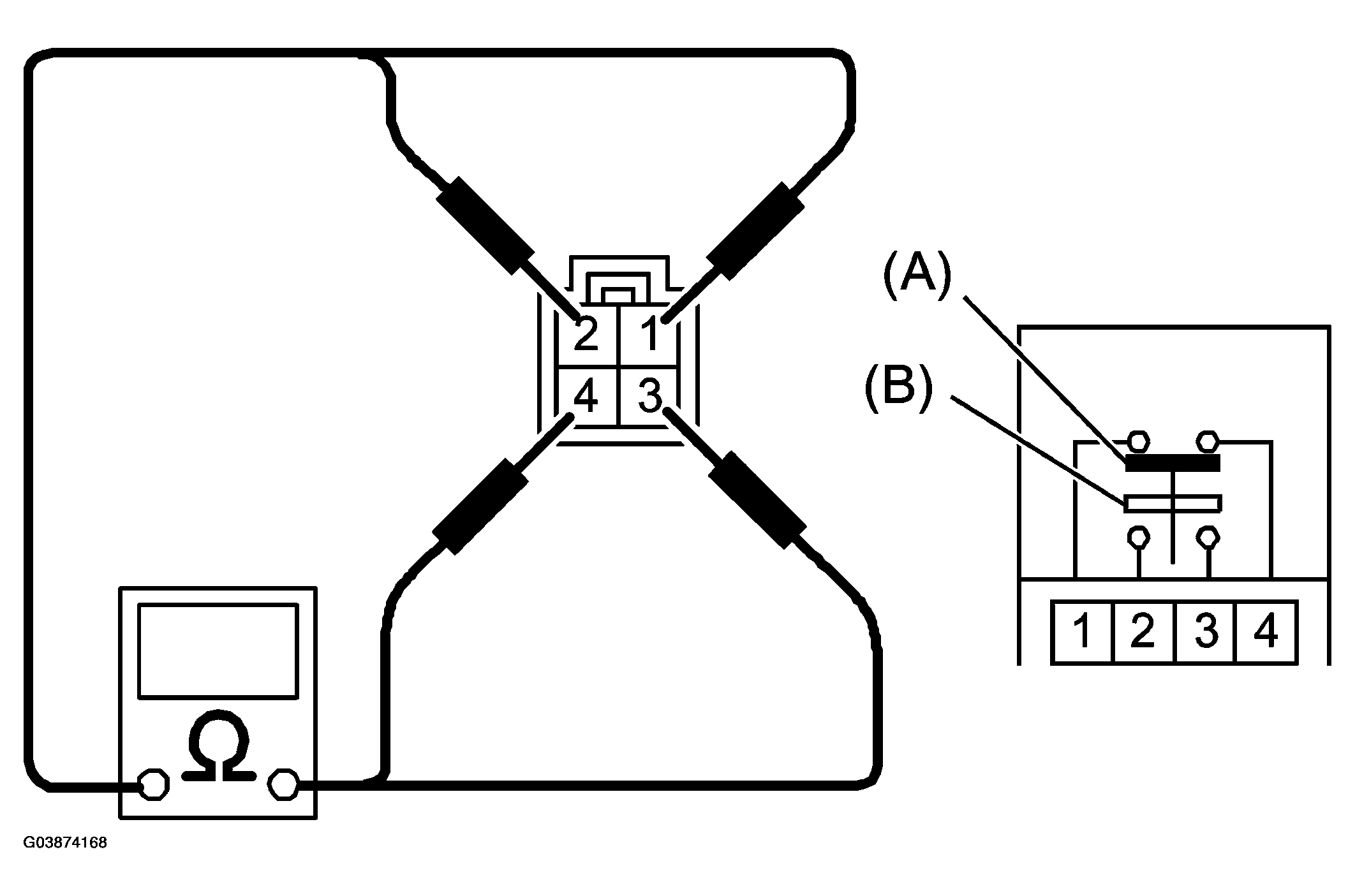

Measure the brake switch (A) and stop light switch (B) resistance.
RESISTANCE SPECIFICATIONS
| Switch | Pedal | Terminal No. | Standard |
|---|---|---|---|
| Brake | Released | 1 and 4 | Less than 1 O |
| Depressed | 1 and 4 | More than 1 MO | |
| Stop light | Released | 2 and 3 | More than 1 MO |
| Depressed | 2 and 3 | Less than 1 O |
If NG, replace the stop light and brake switch.
