Fuel Sub Level Sensor: Adjustment/Replacement: Installation

Install in the reverse order of removal.

NOTE: Use a new gasket.
  1. Ensure the sealing portion is free from fuel or foreign particles before installation.
  2. Tighten the nuts and bolts to specified torque in the order as shown in the figure.

    Tightening torque:

    4.4 Nm (0.45 kgf-m, 3.3 ft-lb)

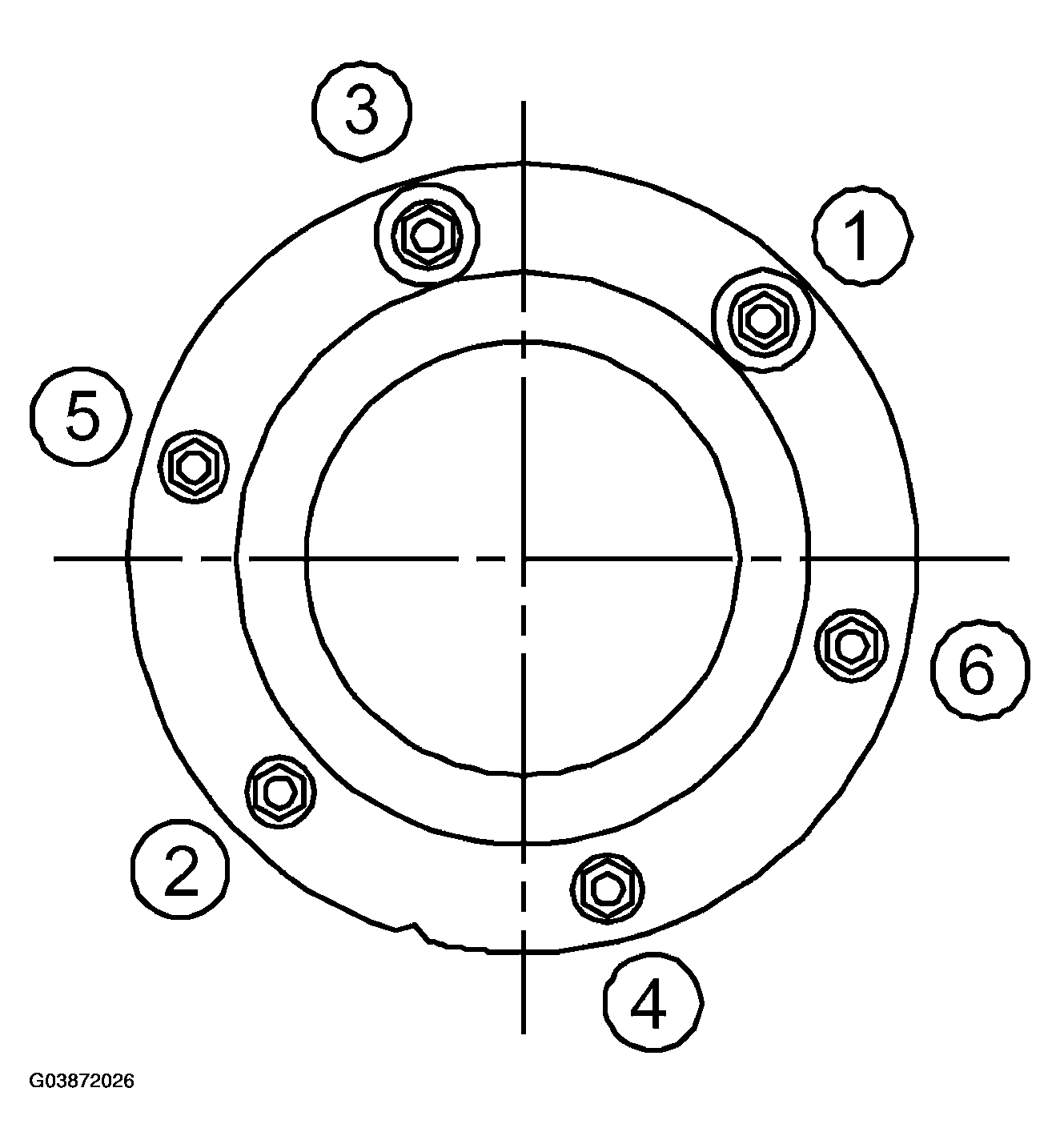

    Fig 1: Identifying Tightening Sequence Of Fuel Sub Level Sensor
    G03872026Courtesy of SAAB-SCANIA OF AMERICA, INC.
