A/T Shift Lock Solenoid & "P" Range Switch: Removal

Disconnect the ground cable from battery.

Remove the console box.

Disconnect the connector.

Remove the grip.

Remove the indicator light from indicator cover.

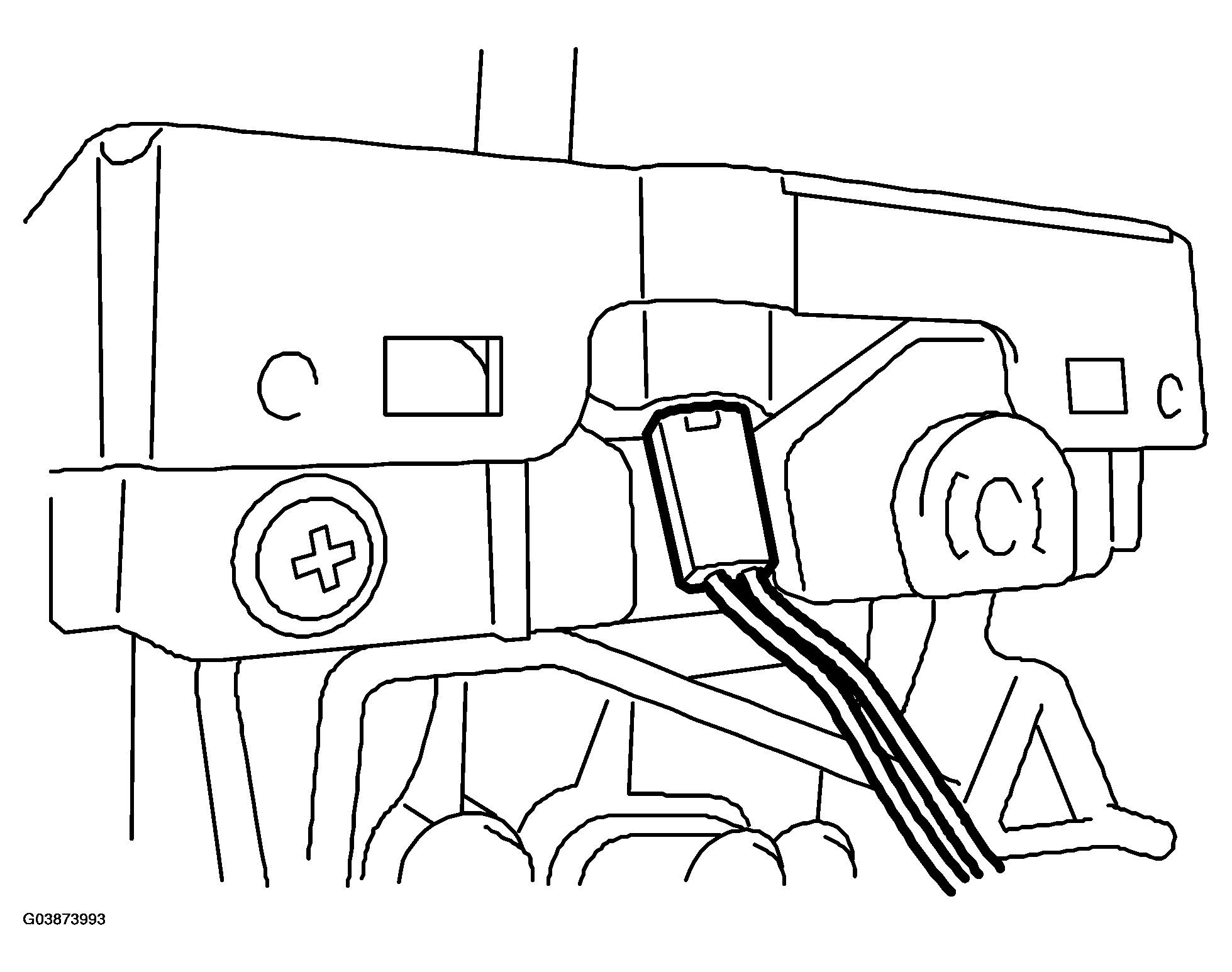

Fig 1: Removing Indicator Light From Indicator Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the indicator cover.

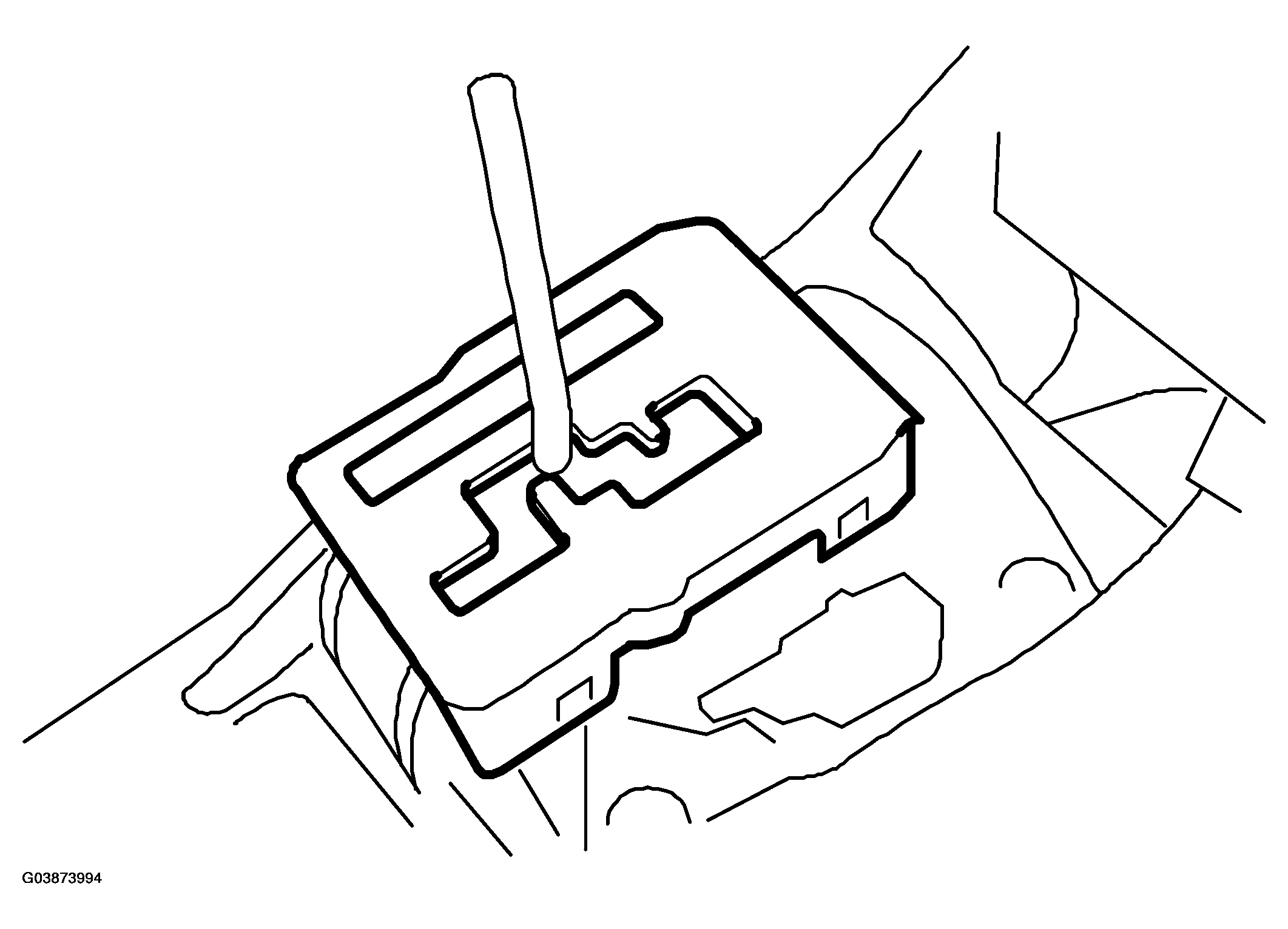

Fig 2: Removing Indicator Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the slider.

Remove the cushion.

Remove the clip, and then remove the "P" range switch.

Fig 3: Removing Range Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the cover.

Remove the clamp and remove the shift lock solenoid.
