Clutch pedal switch (133)

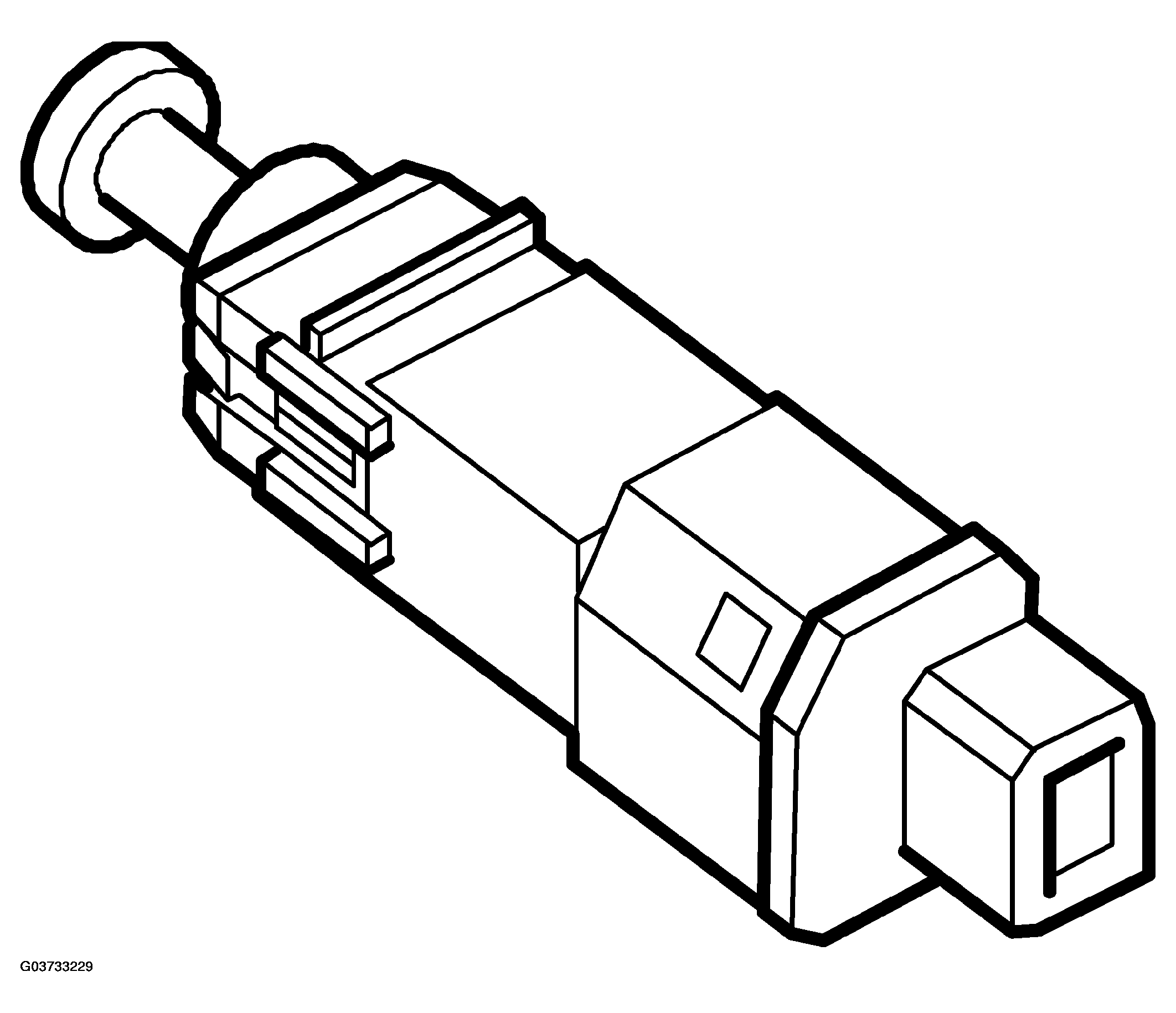

Fig 1: Identifying Clutch Pedal Switch
G03733229Courtesy of SAAB-SCANIA OF AMERICA, INC.
CLUTCH PEDAL SWITCH DESCRIPTION

Location On pedal bracket
Characteristics, pins 1-2 Normally closed when pedal released
