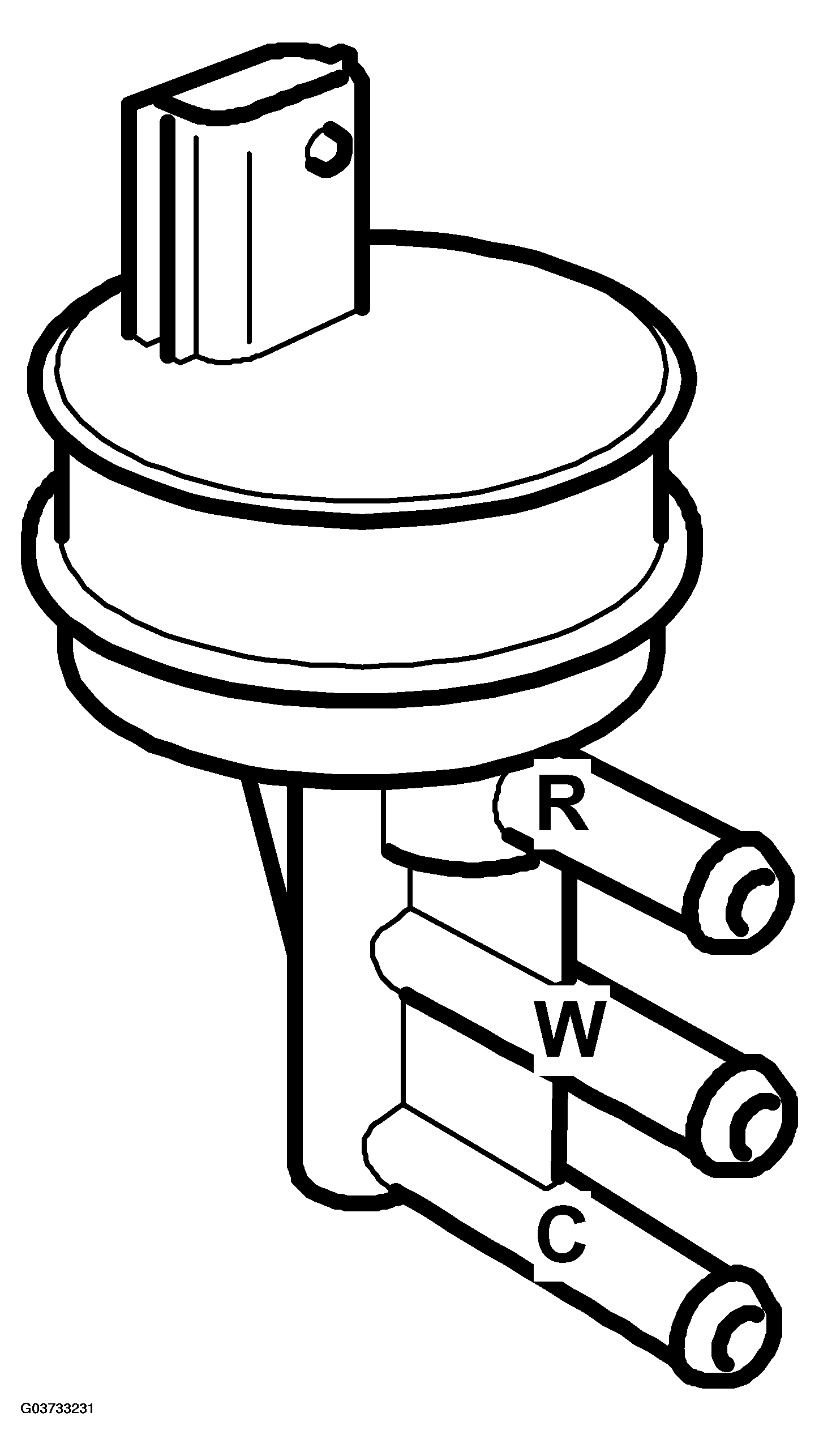

Charge air control valve (179a)
Courtesy of SAAB-SCANIA OF AMERICA, INC. CHARGE AIR CONTROL VALVE DESCRIPTION
| Location |
|
On bracket on front edge of cylinder head |
| Characteristics |
|
R zero current closed. C and W are always open and connected to each other. |
| Number of windings |
|
1 |
| Resistance at 20°C (68°F) |
Ohm |
8+/-1 |
| Control voltage |
12 V PWM |
32 Hz |
