DTC P1662: Charge Air Control Valve Circuit Open/Short To Ground: Notes

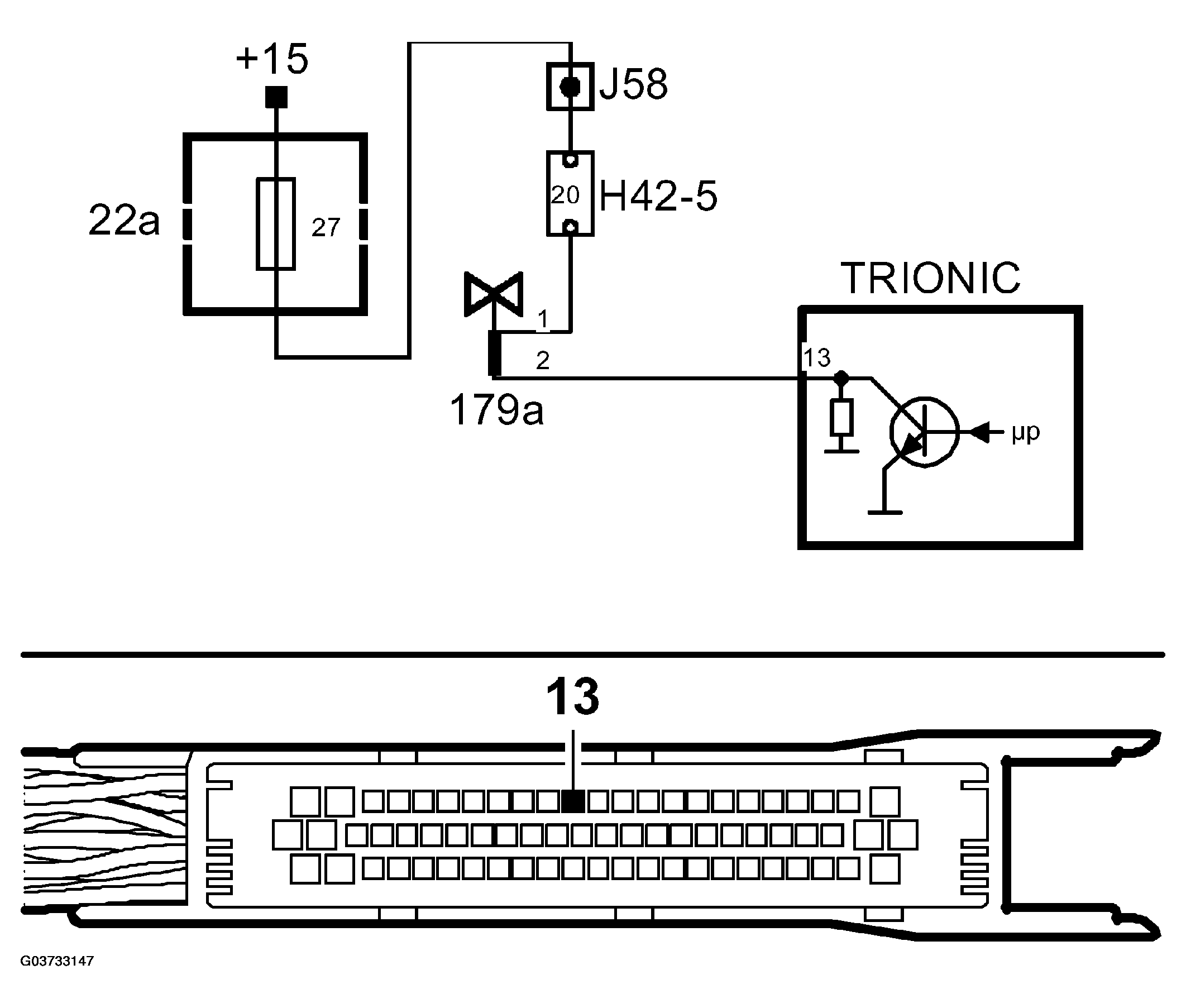

Fig 1: P1662 Charge Air Control Valve - Circuit Diagram

G03733147

Courtesy of SAAB-SCANIA OF AMERICA, INC.
