Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Fault Diagnosis, Fault Codes >> DTC P0112: Intake Air Temperature Sensor Circuit - Short to Ground >> Notes

DTC P0112: Intake Air Temperature Sensor Circuit - Short to Ground: Notes

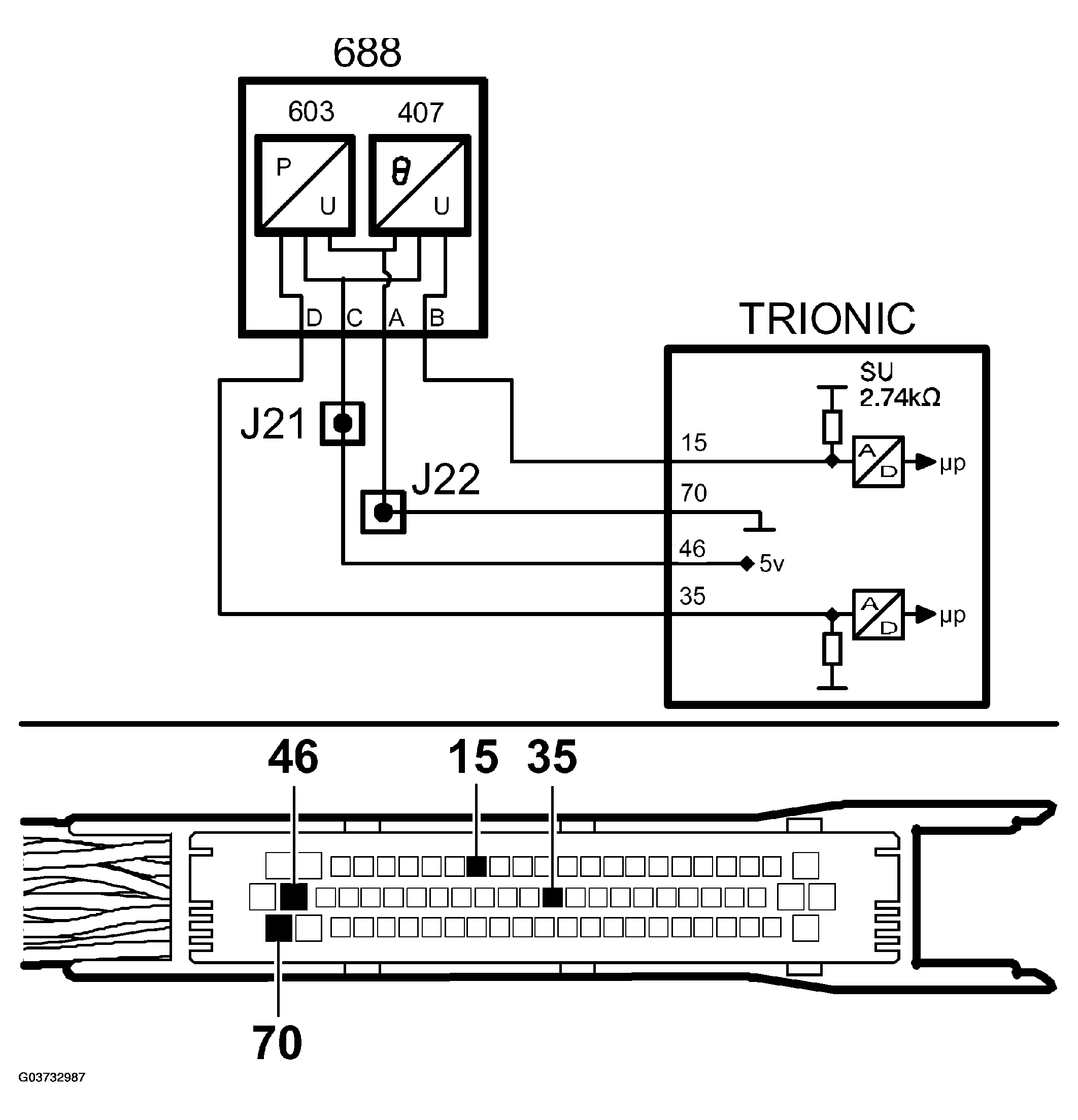

Fig 1: P0112: Intake Air Temperature Sensor - Circuit Diagram

G03732987

Courtesy of SAAB-SCANIA OF AMERICA, INC.
