DTC P0103: Mass Air Flow Circuit - High Input: Notes

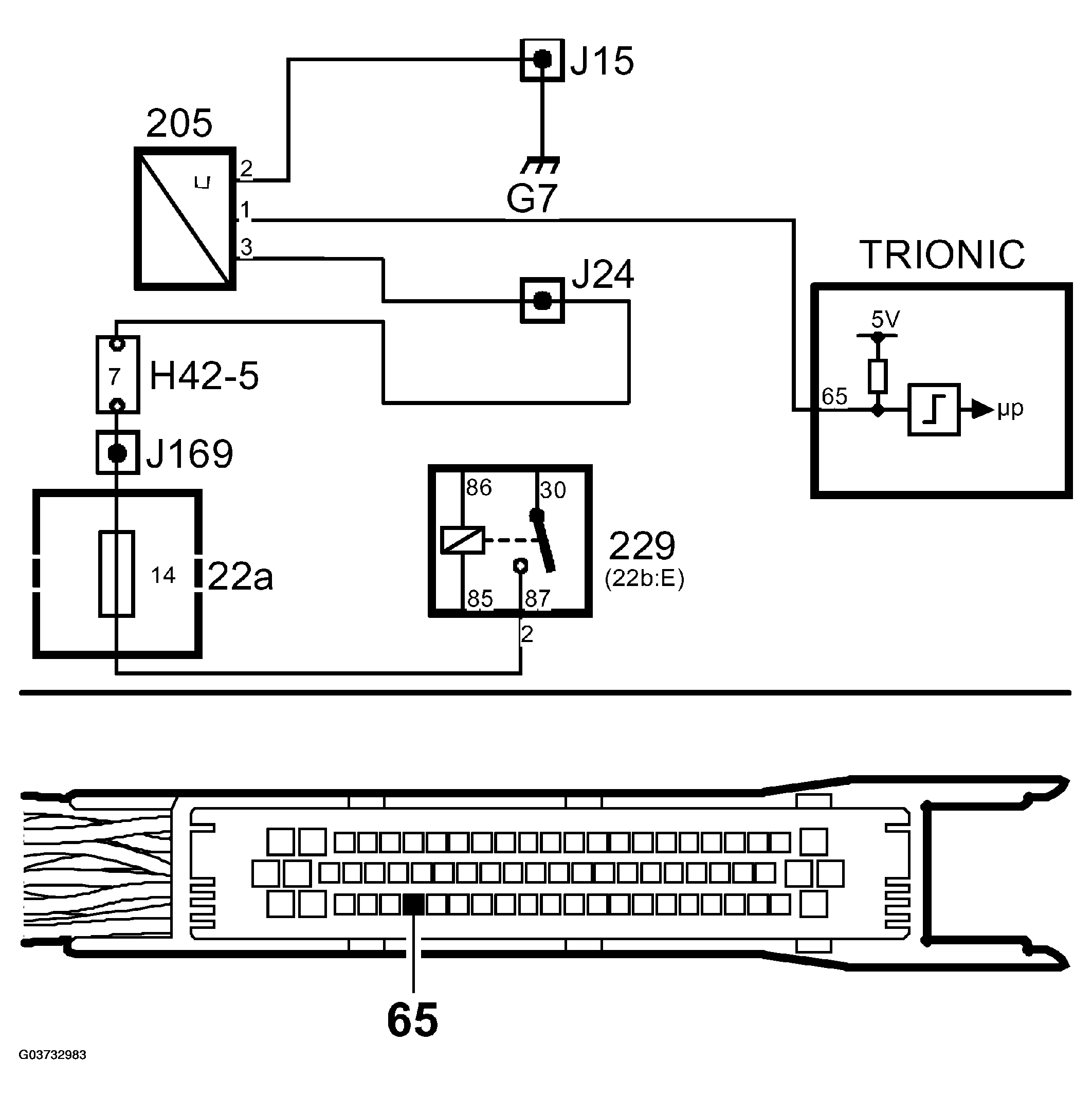

Fig 1: P0103: Mass Air Flow Circuit - Circuit Diagram

G03732983

Courtesy of SAAB-SCANIA OF AMERICA, INC.
