Sensor, intake air (688)

4-cyl. petrol

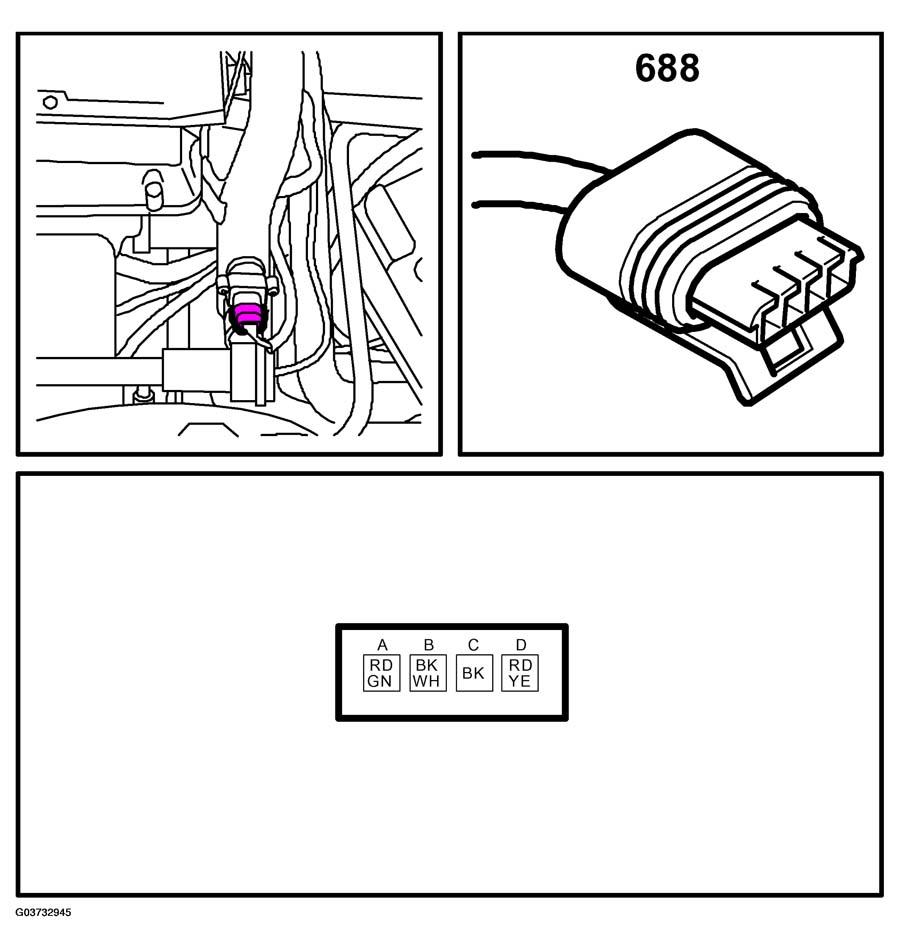

Fig 1: Identifying Intake Air Sensor (4-Cyl. Petrol) Connector Pinout
G03732945Courtesy of SAAB-SCANIA OF AMERICA, INC.

PSG16

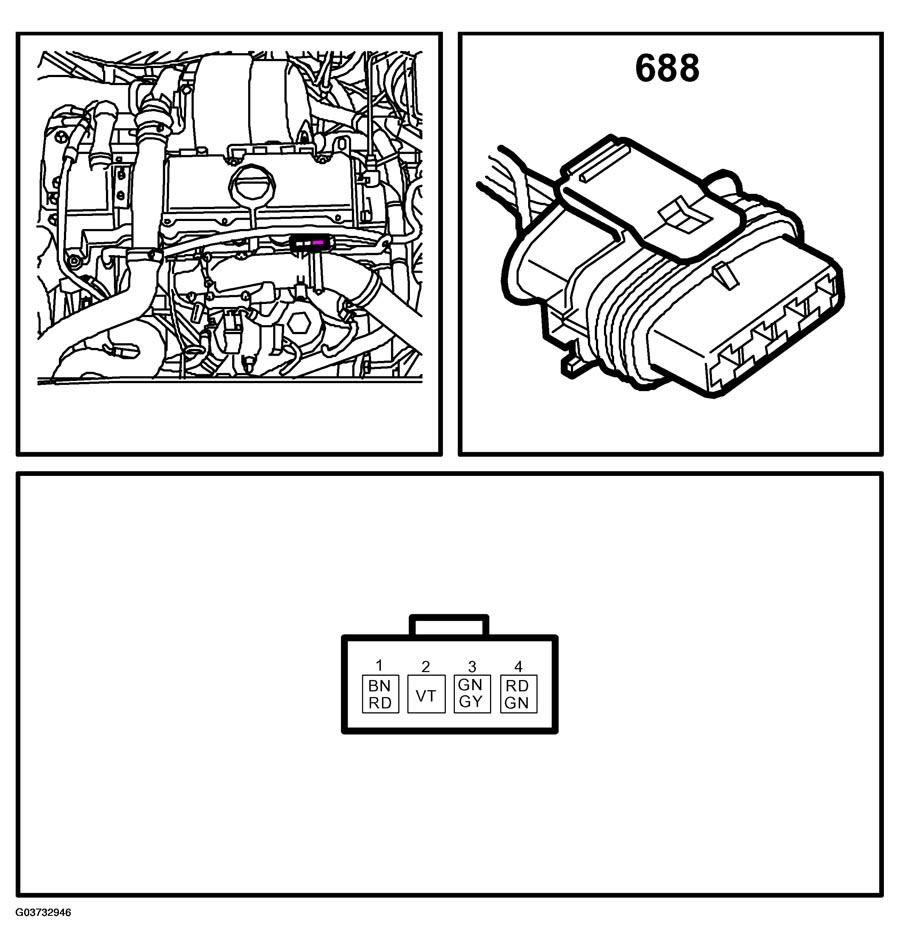

Fig 2: Identifying Intake Air Sensor (PSG16) Connector Pinout
G03732946Courtesy of SAAB-SCANIA OF AMERICA, INC.
