Ignition discharge module (346)

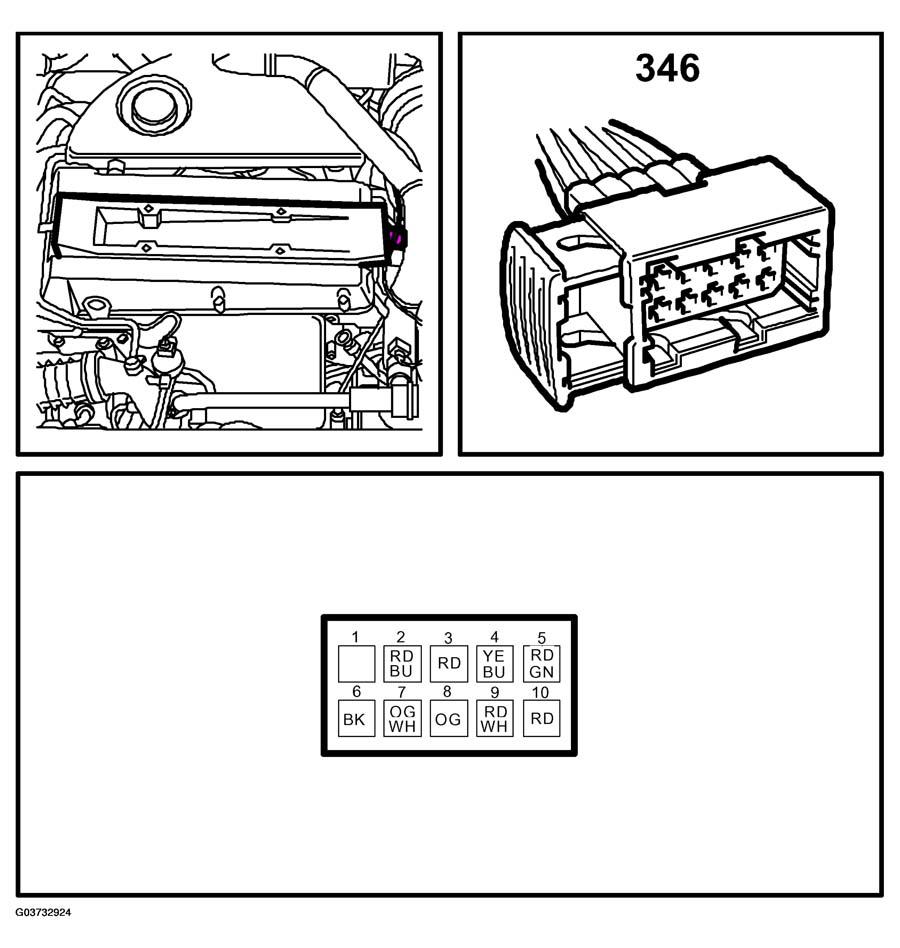

Fig 1: Identifying Ignition Discharge Module Connector Pinout

G03732924

Courtesy of SAAB-SCANIA OF AMERICA, INC.
