Grounding point G7, 4-cyl. petrol: Notes

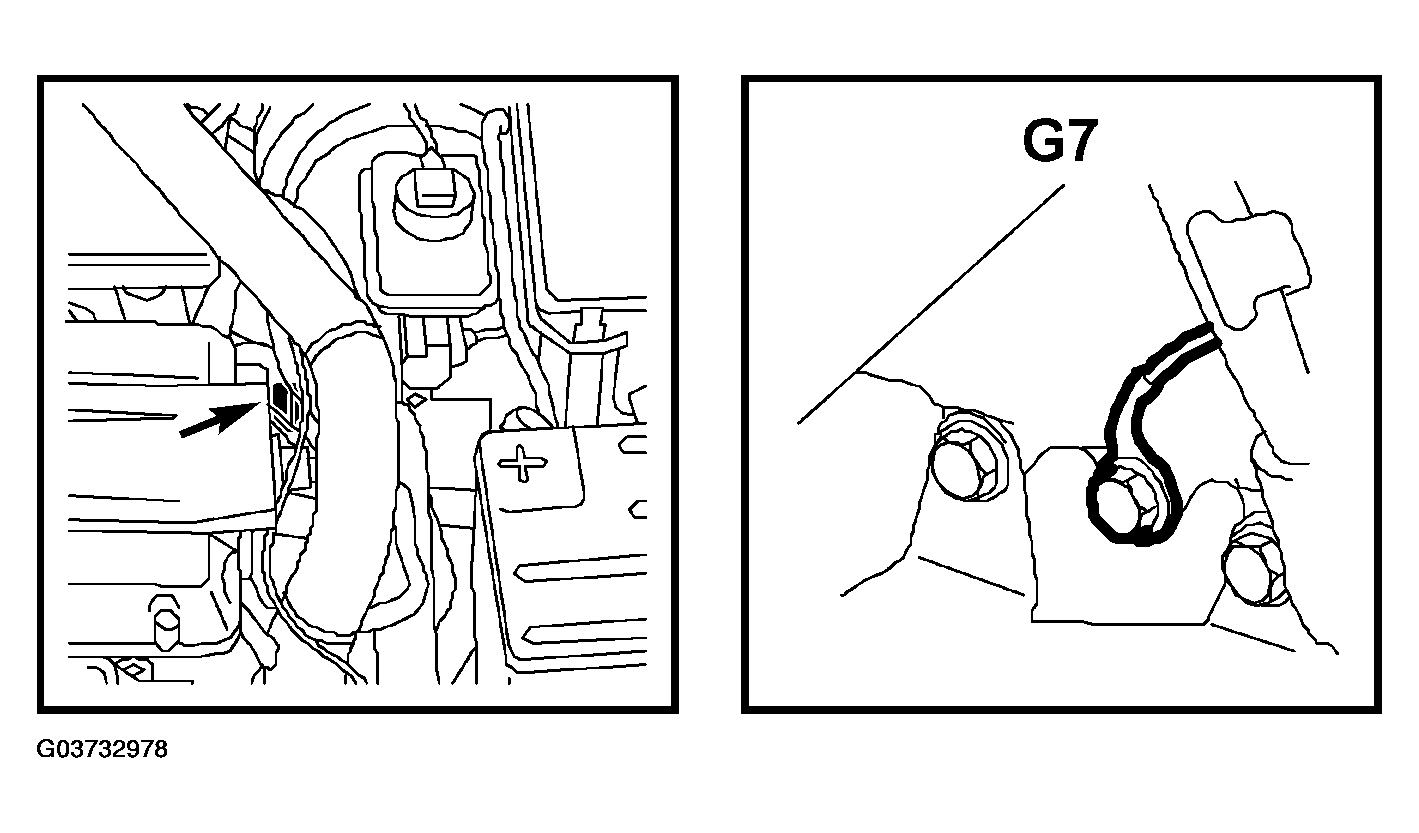

Fig 1: Identifying Grounding Point G7 (4-Cyl. Petrol)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

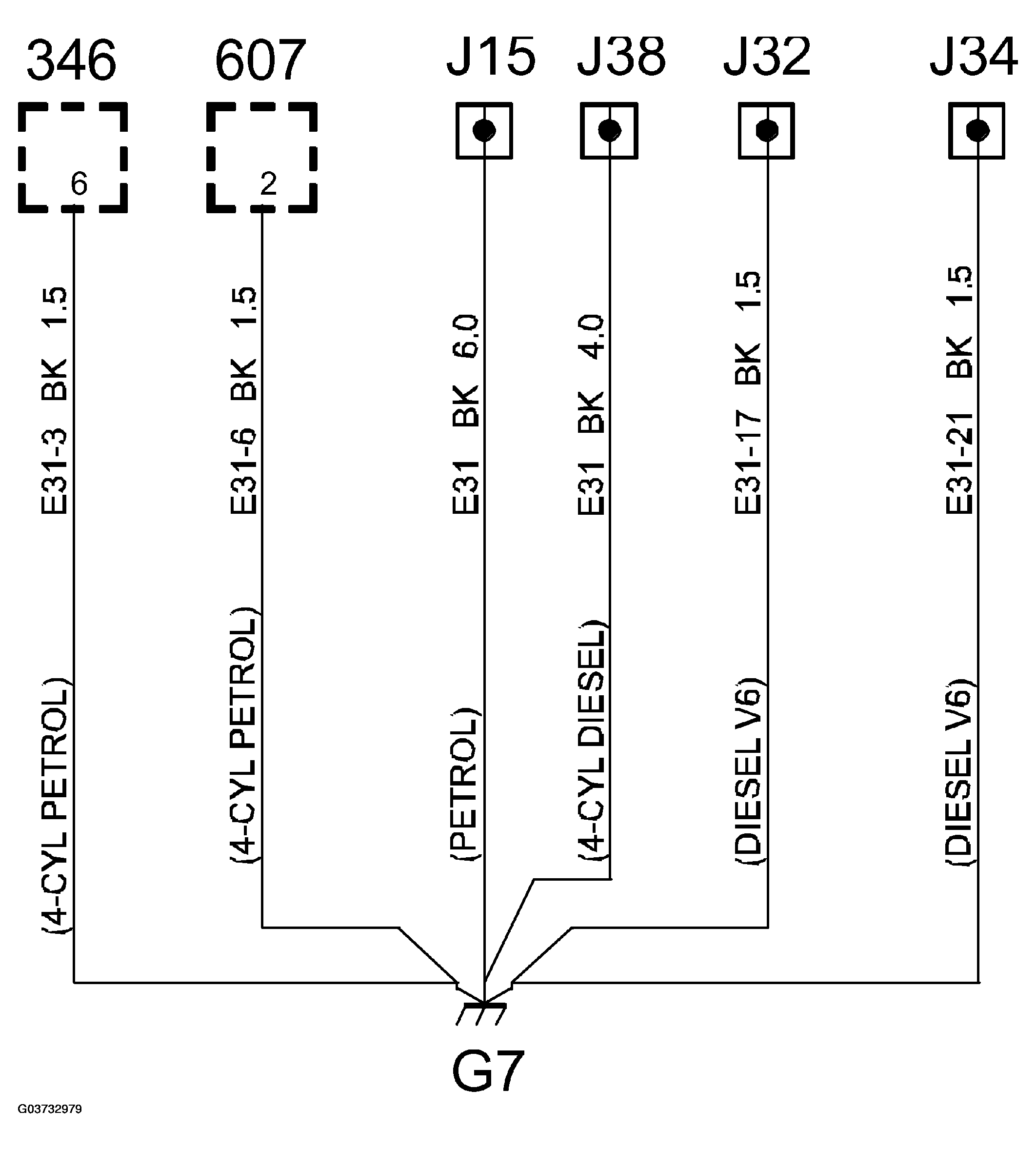

Fig 2: Grounding Point G7 (4-Cyl. Petrol) Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
