Crankshaft position sensor (345)

4 cylinder petrol

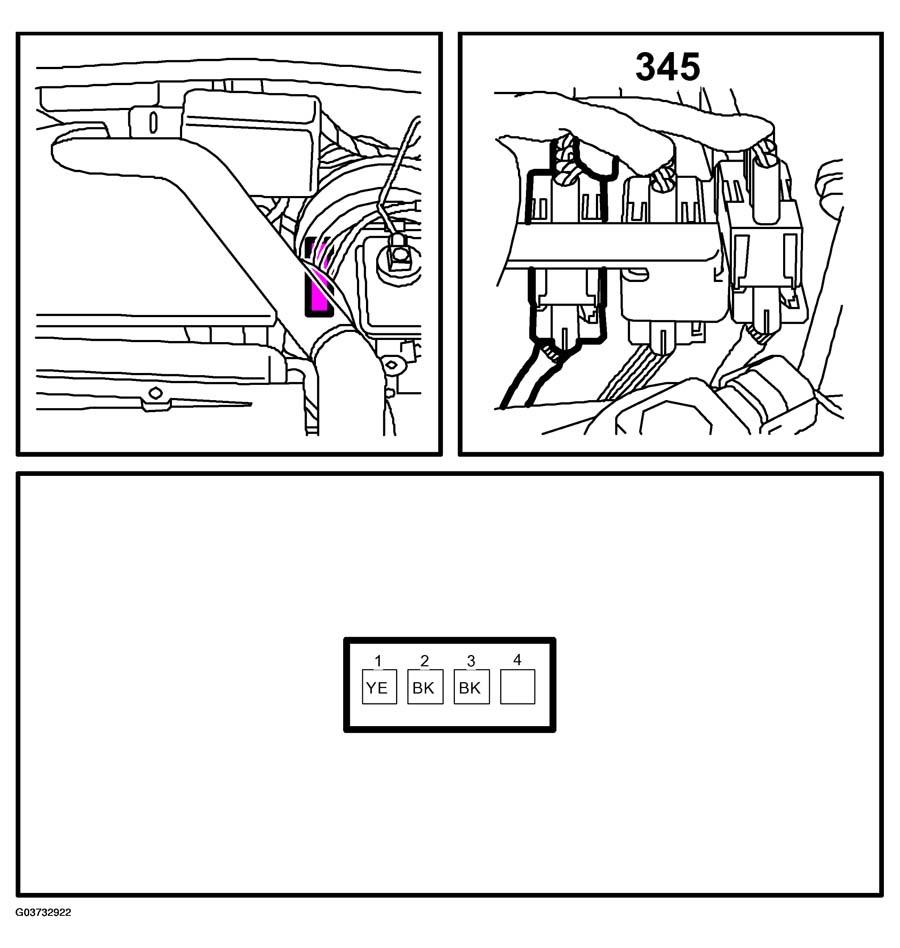

Fig 1: Identifying Crankshaft Position Sensor (4-Cylinder Petrol) Connector Pinout
G03732922Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

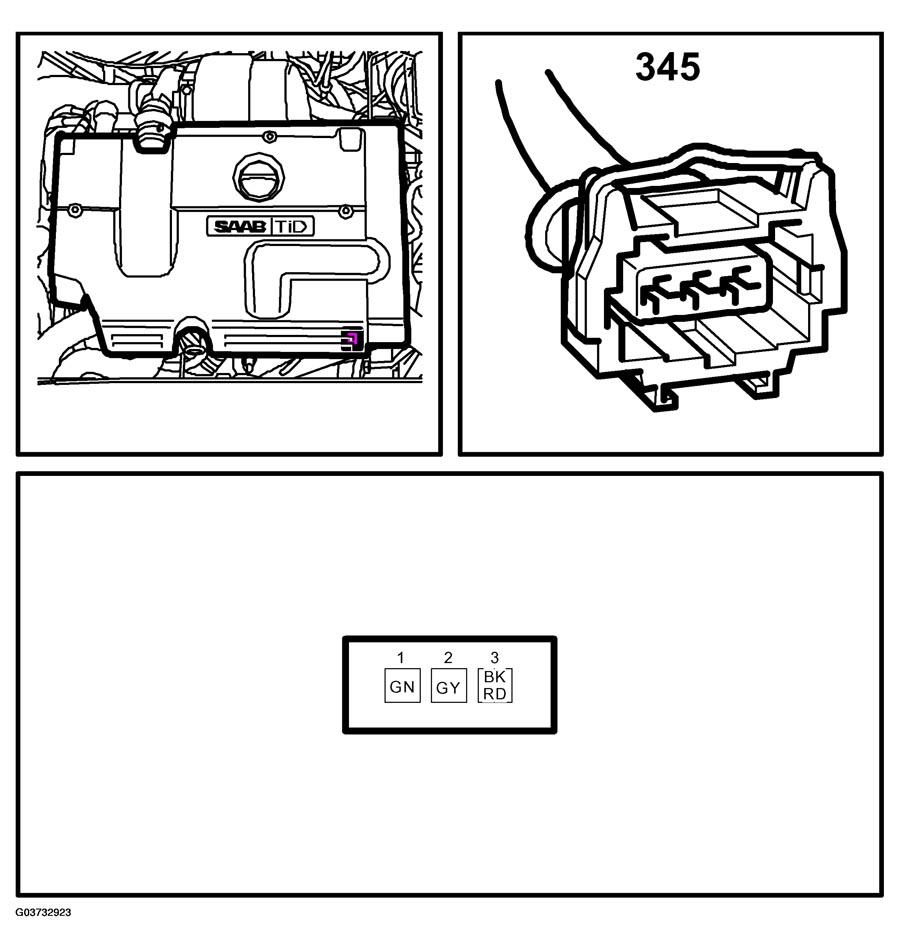

Fig 2: Identifying Crankshaft Position Sensor (4-Cyl Diesel) Connector Pinout
G03732923Courtesy of SAAB-SCANIA OF AMERICA, INC.
