Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Adjustment - Replacement >> Relay, A/C >> To fit

To fit

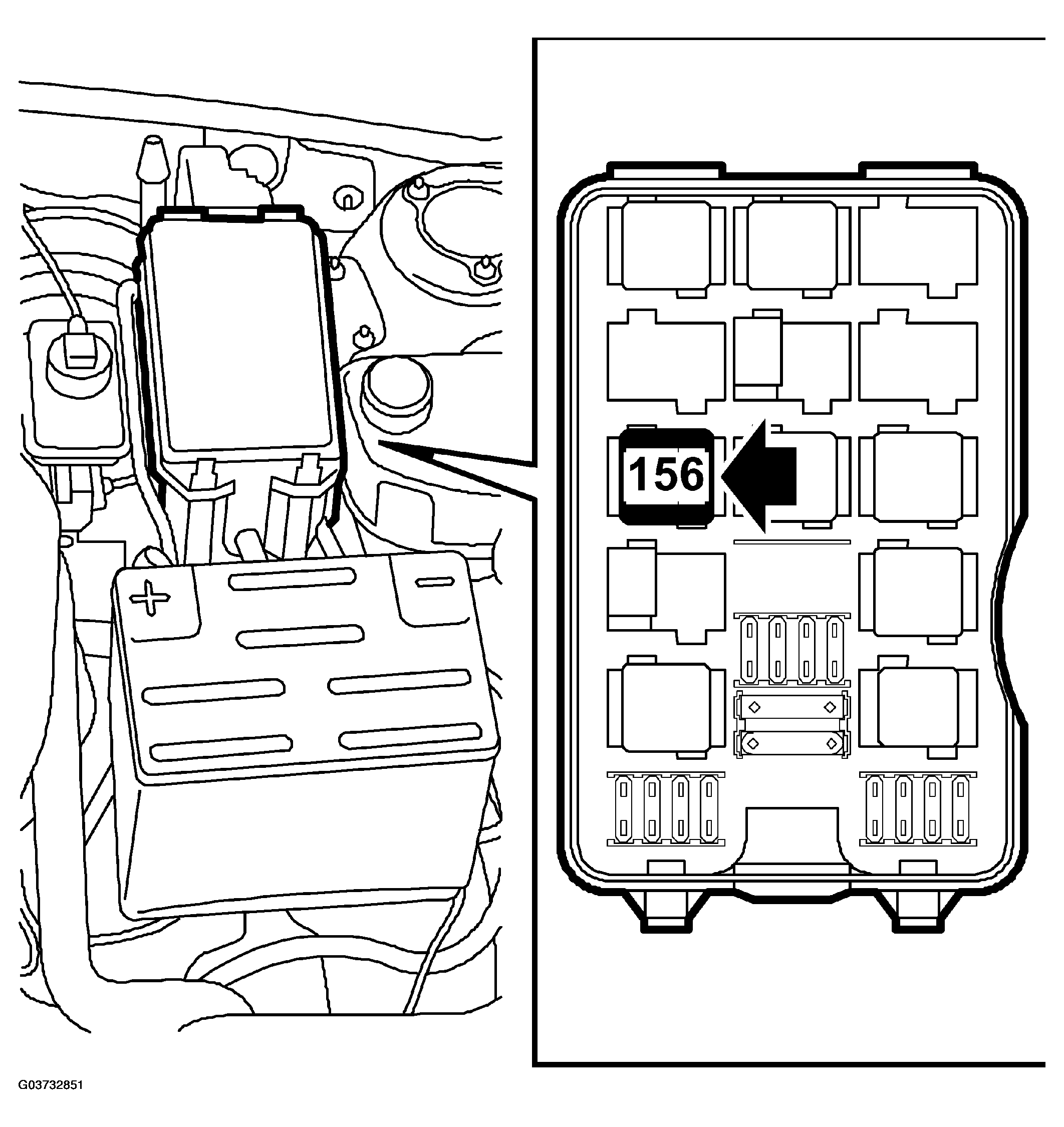

Fig 1: Installing Lid On Box Containing Relays And Fuses In Engine Bay
G03732851Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spray the contacts in the relay holder with Kontakt 61 (part no. 30 04 520).
  2. Fit the relay.
  3. Fit the lid.
