To fit

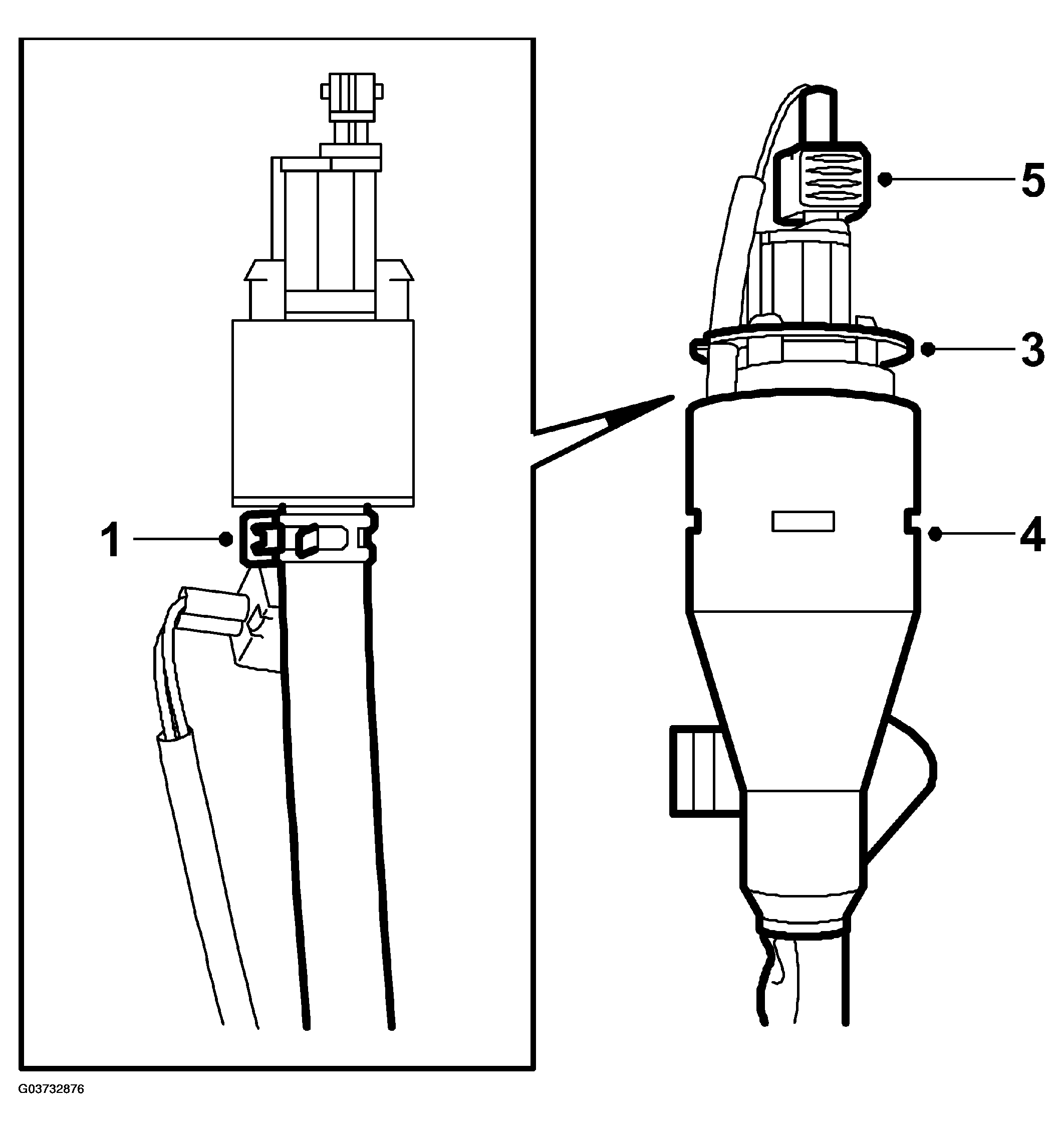

Fig 1: Illustration For Steps 1, 3, 4 & 5
G03732876Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Connect the valve to the hose.
  2. Connect the hose.
  3. Refit the washer.
  4. Fit the cover over the valve, making sure the cables end up in the washer opening.
    IMPORTANT: Take care with the foam rubber filter so that it is not damaged or incorrectly fitted.
  5. Spray with Kontakt 61 and plug in the connector.
  6. Fit the front cover.

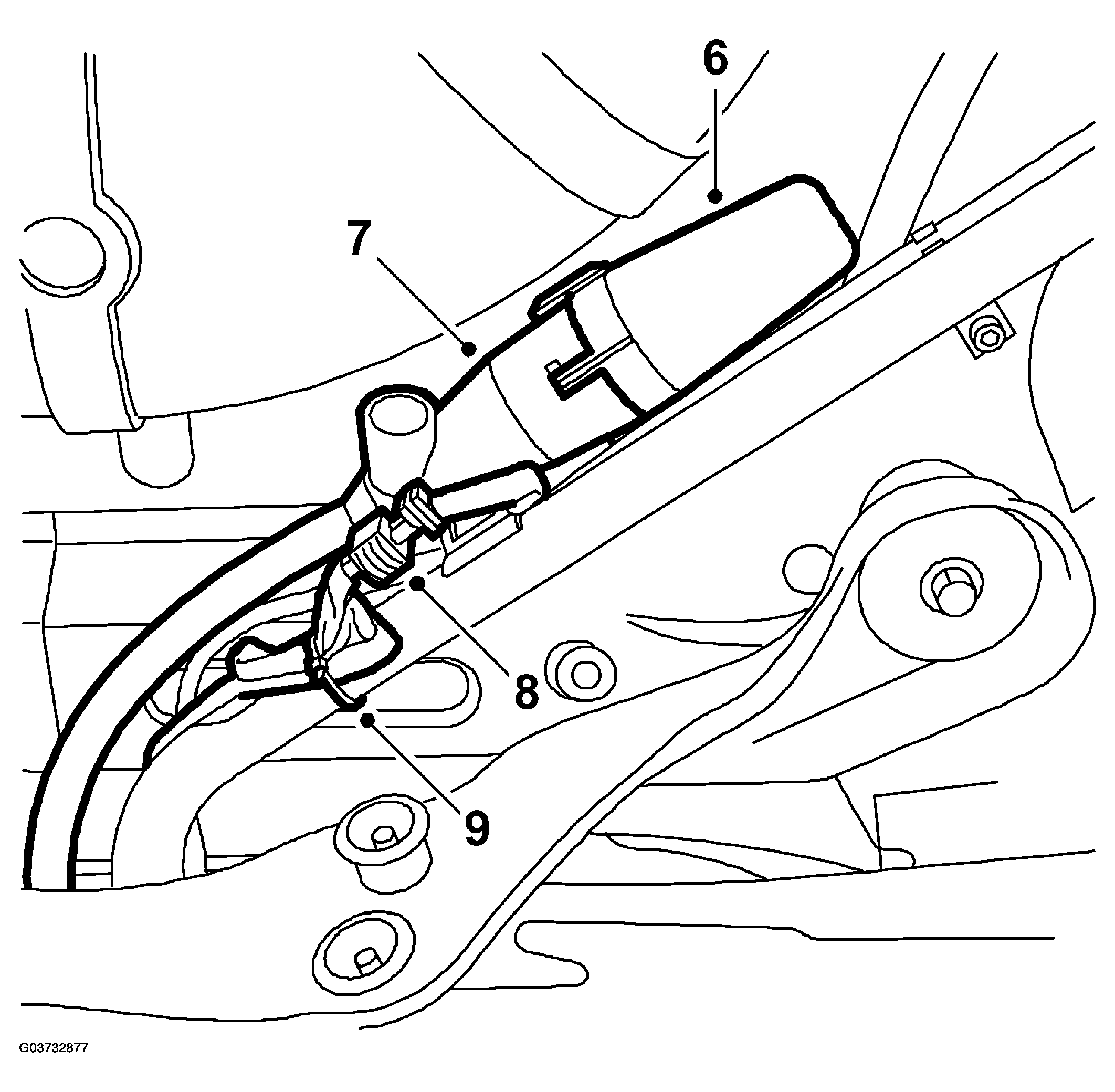

    Fig 2: Illustration For Steps 6 To 9
    G03732877Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit the purge device to the filler pipe.
  8. Spray with Kontakt 61 and plug in the connector to the purge device.
  9. Secure the cables with a cable tie.
  10. Lower the car to the floor.
