Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Adjustment - Replacement >> Charge air absolute pressure sensor >> To fit

To fit

  1. Apply vaseline (part no. 30 04 520) or equivalent to the sensor threads. Fit the sensor.

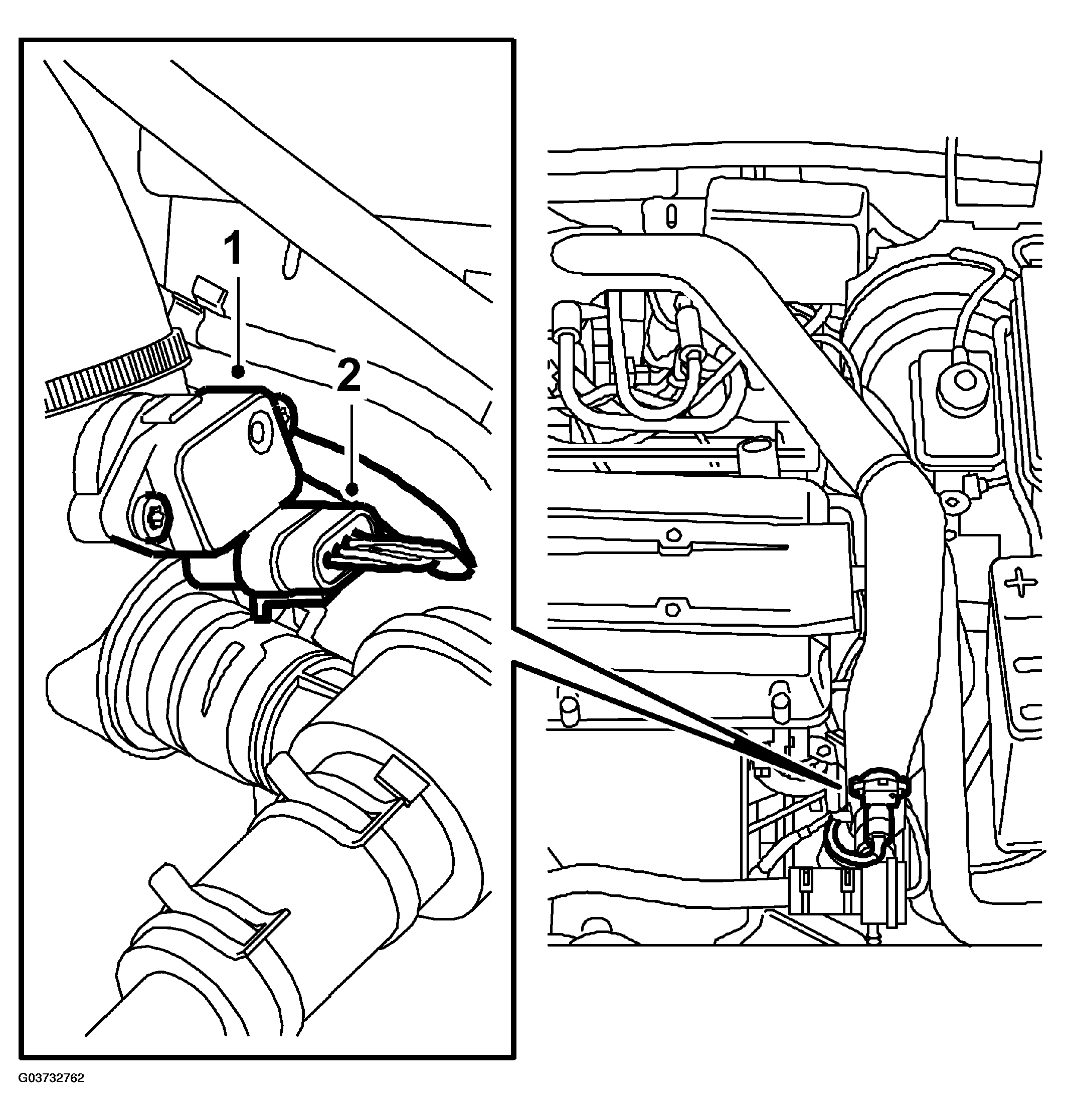

    Fig 1: Illustration For Steps 1 To 2
    G03732762Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
