Load angle sensor, front (704F)

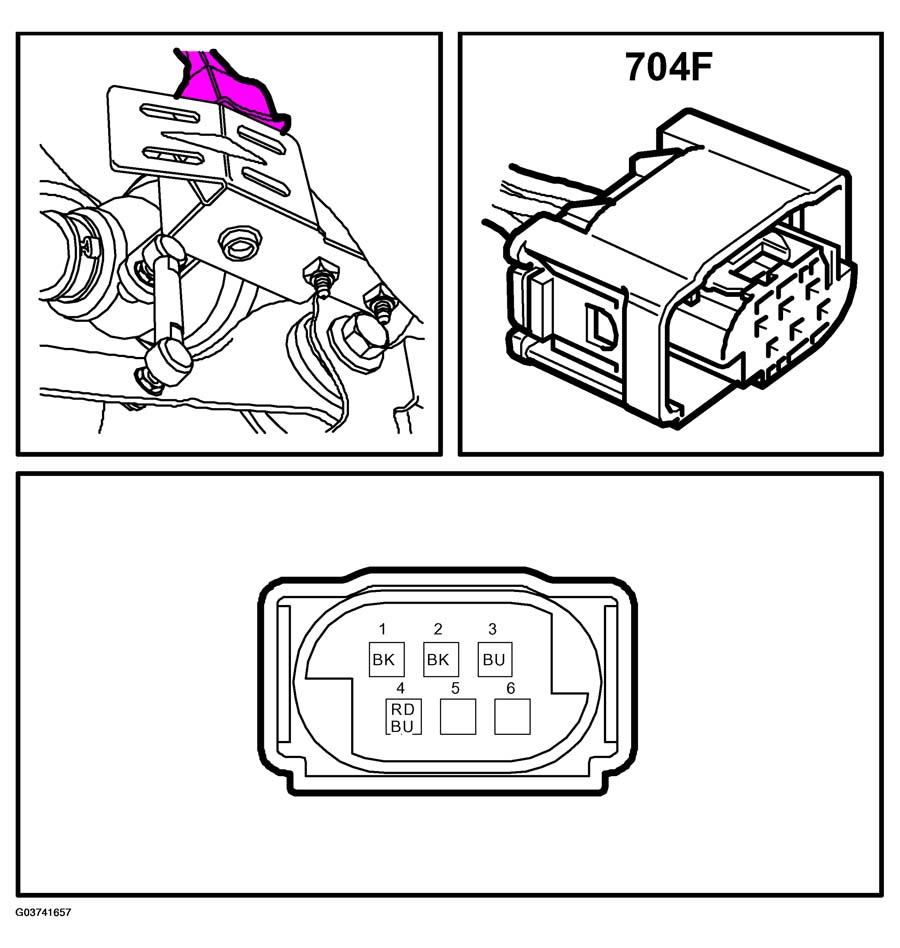

Fig 1: Identifying Connector Location - Load Angle Sensor, Front (704F)

G03741657

Courtesy of SAAB-SCANIA OF AMERICA, INC.
