To remove

  1. Remove the headlamp, see HEADLAMP  .
  2. Unscrew the control module.

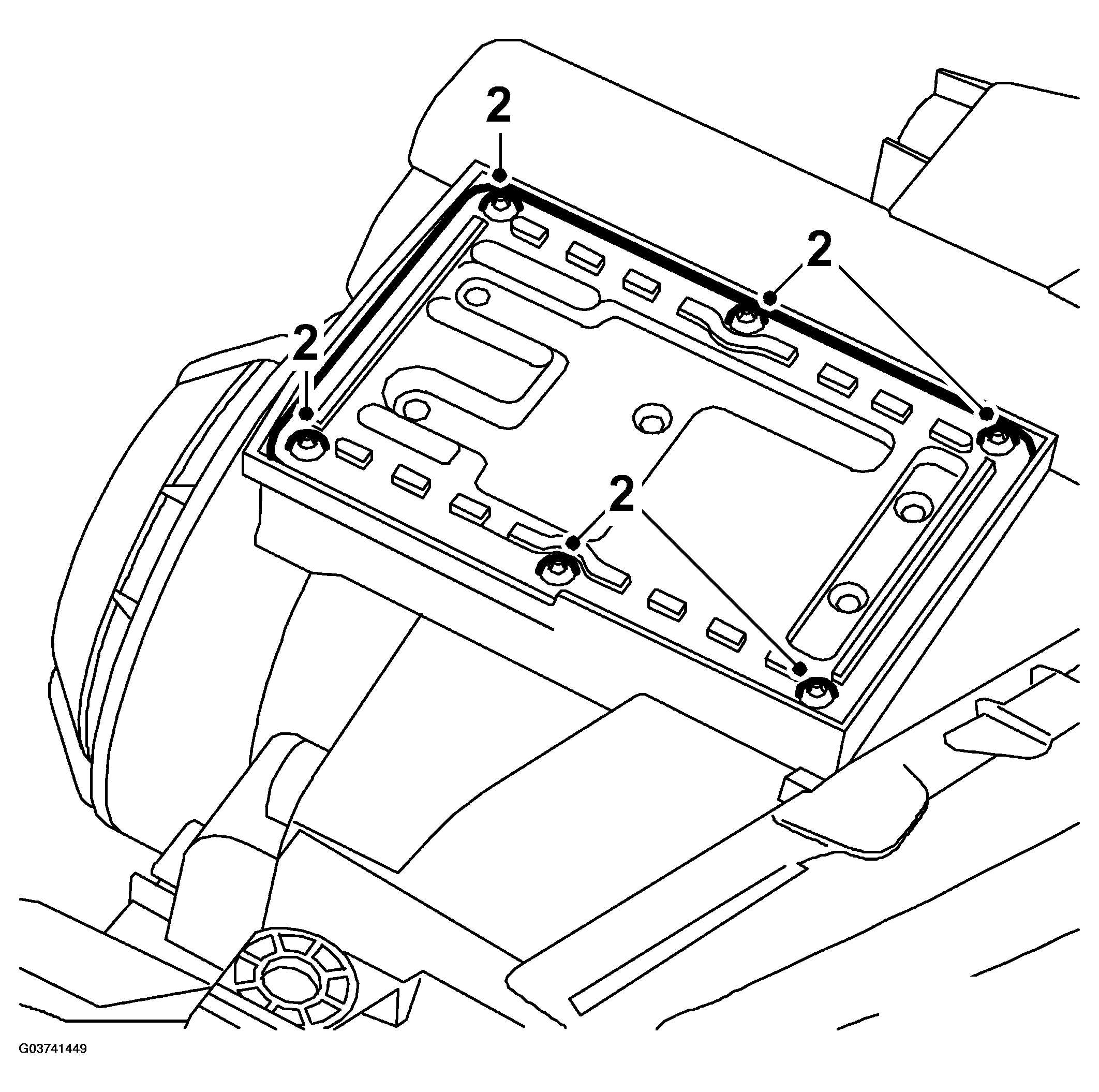

    Fig 1: Unscrewing Control Module
    G03741449Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector and lift up the control module.

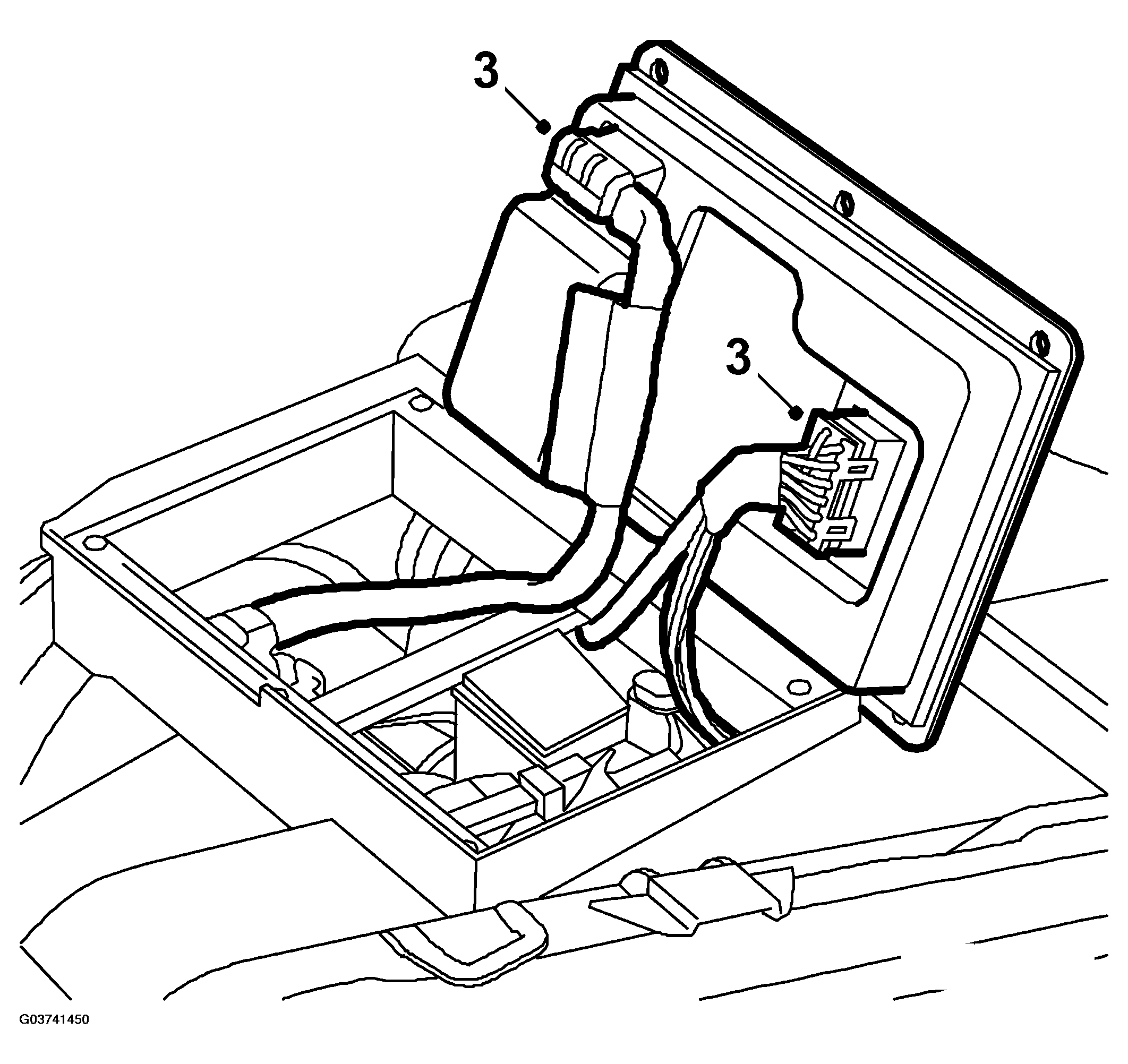

    Fig 2: Unplugging Connector
    G03741450Courtesy of SAAB-SCANIA OF AMERICA, INC.
