Replacement of halogen lamp

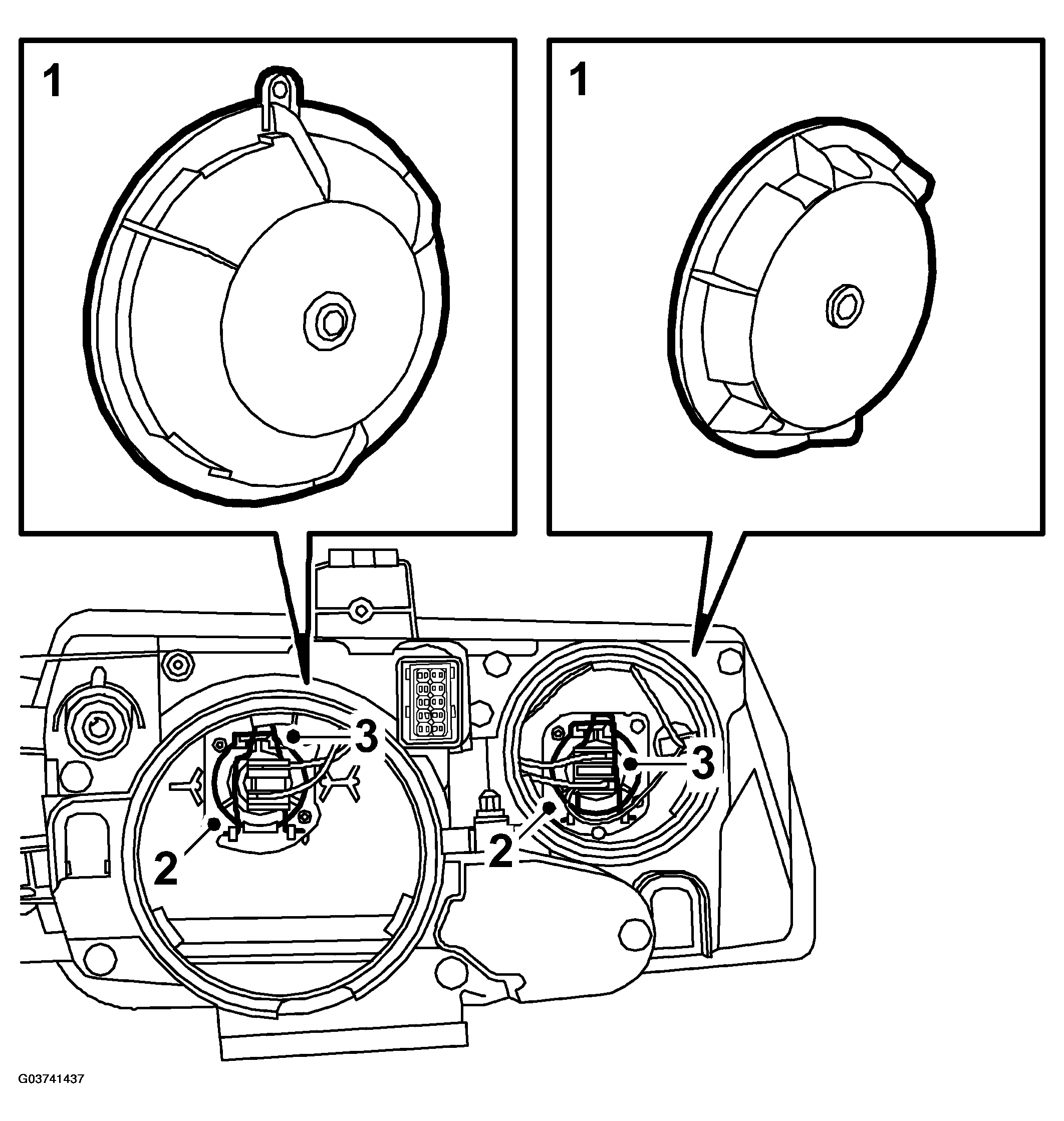

Fig 1: Replacing Halogen Lamp
G03741437Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Fit bulbs with correct rating only, the wiring can otherwise be damaged.
  1. Remove the cover on the back of the headlamp.
  2. Unplug the connector to the halogen bulb.
  3. Unhook the mounting bracket holding the halogen bulb and change the bulb.
