To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to .
  1. Plug in the control module connector and fit the clip.

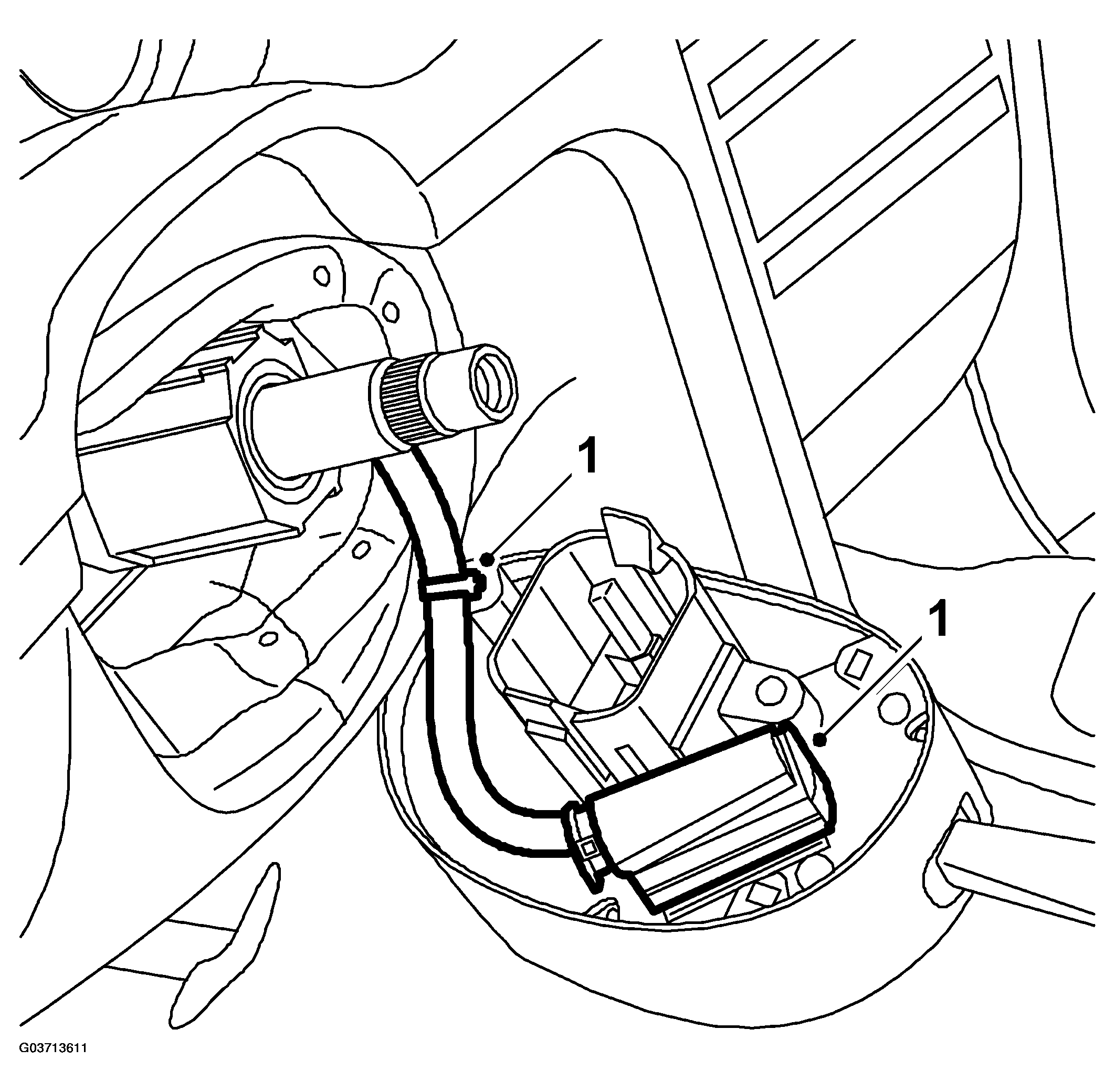

    Fig 1: Illustration For Step - 1
    G03713611Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the control module to the steering shaft.

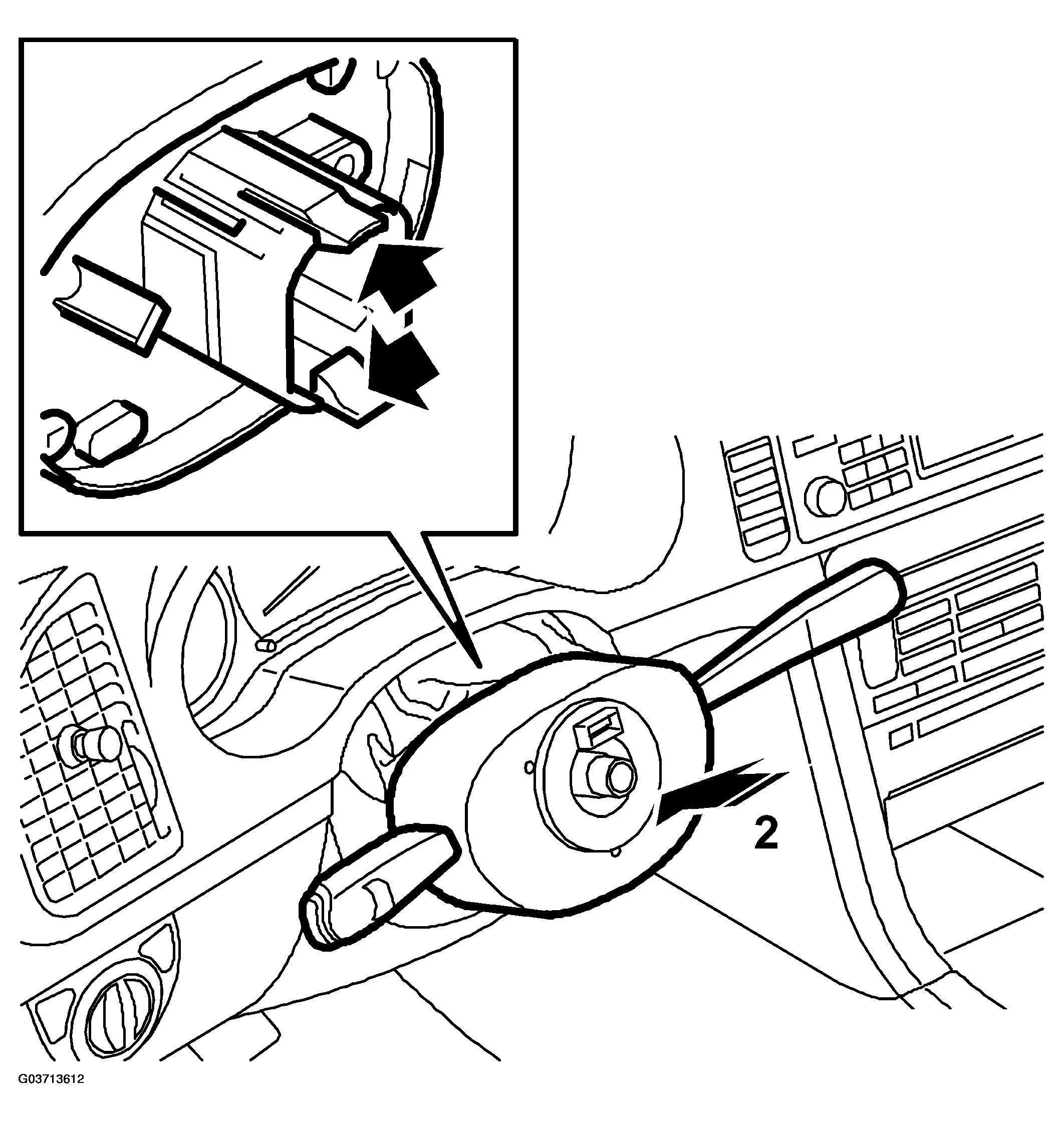

    Fig 2: Illustration For Step - 2
    G03713612Courtesy of SAAB-SCANIA OF AMERICA, INC.

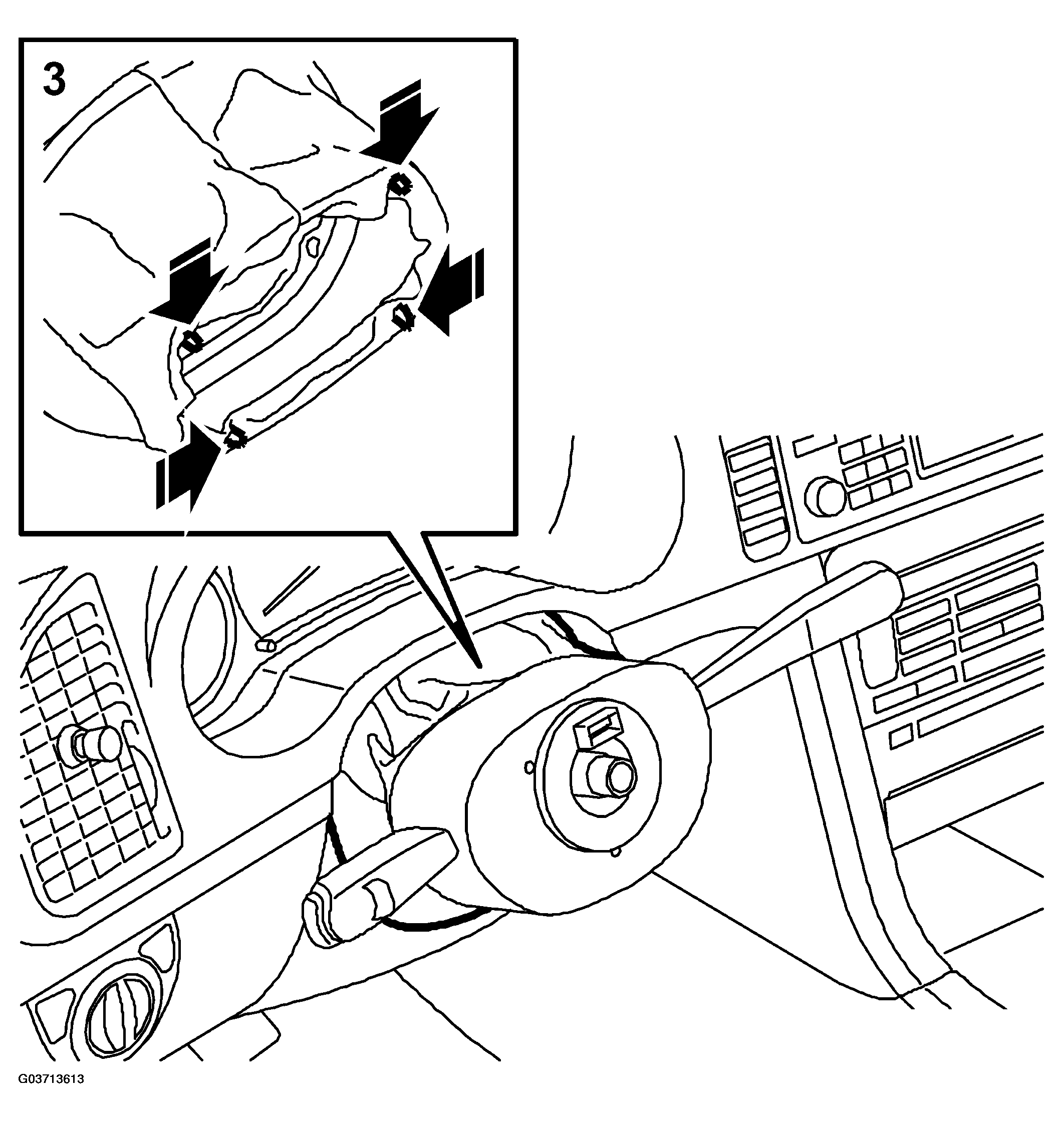

    Fig 3: Illustration For Step - 3
    G03713613Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the gaiter to the control module.
  4. Fit the steering wheel.
  5. Carry out "Procedure after changing the control module".
