Main components

  1. Front seat-belt with belt tensioner (236D, 236P)

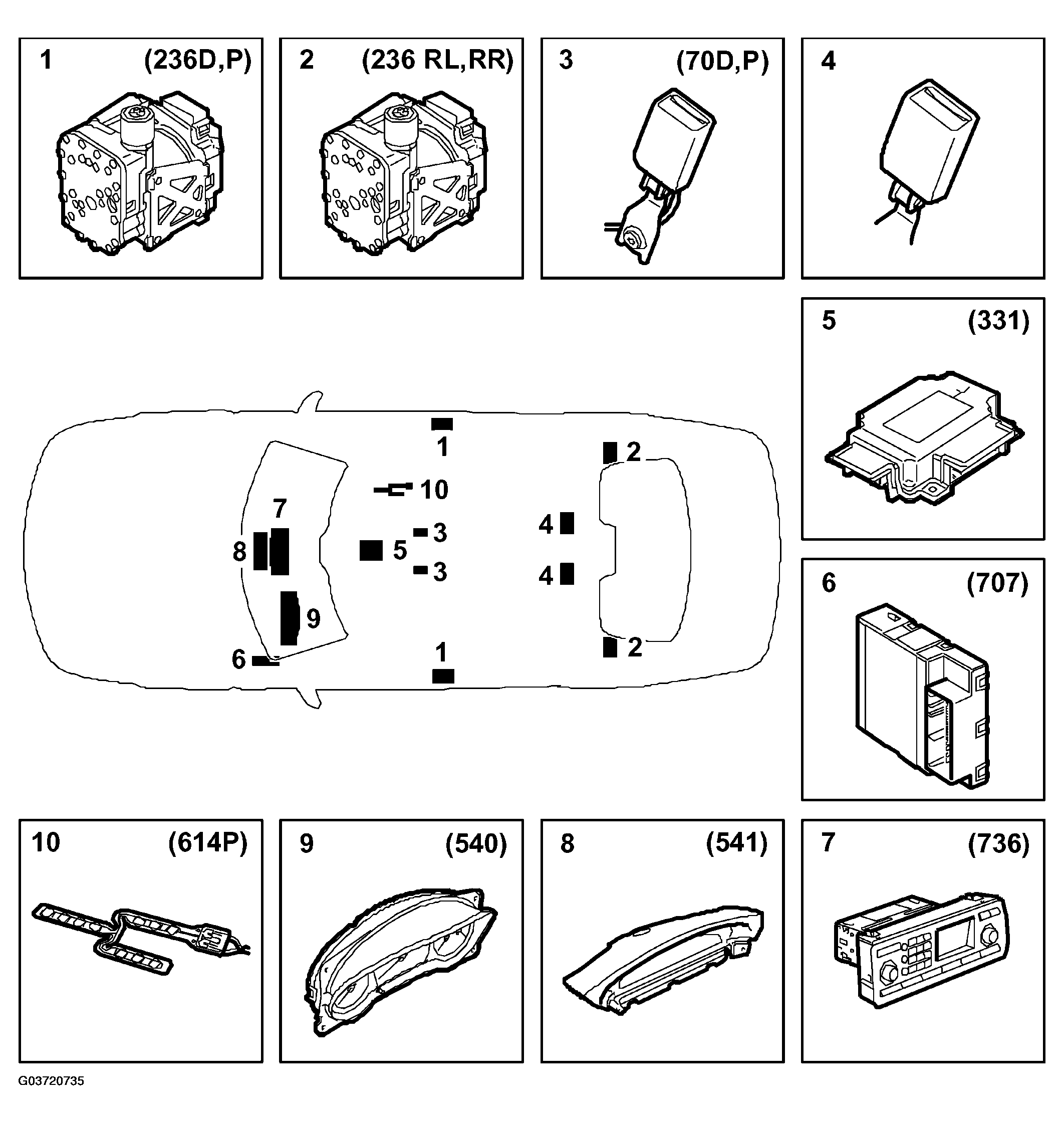

    Fig 1: Identifying Front Seat-Belt With Belt Tensioner
    G03720735Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Outer rear seat-belts with belt tensioners (certain markets only) (236RL, 236RR)
  3. Front seat-belt buckle sensor (70D, 70P)
  4. Rear seat-belt buckle
  5. Airbag control module (331)
  6. Body Control Module (707)
  7. ICM (736)
  8. SID (541)
  9. Main instrument display panel, MIU (540)
  10. Occupied seat cushion sensor, passenger, front (614P)
