H8-2 Connector End View: Location

Location: Gray connector in the right A-pillar by the windscreen

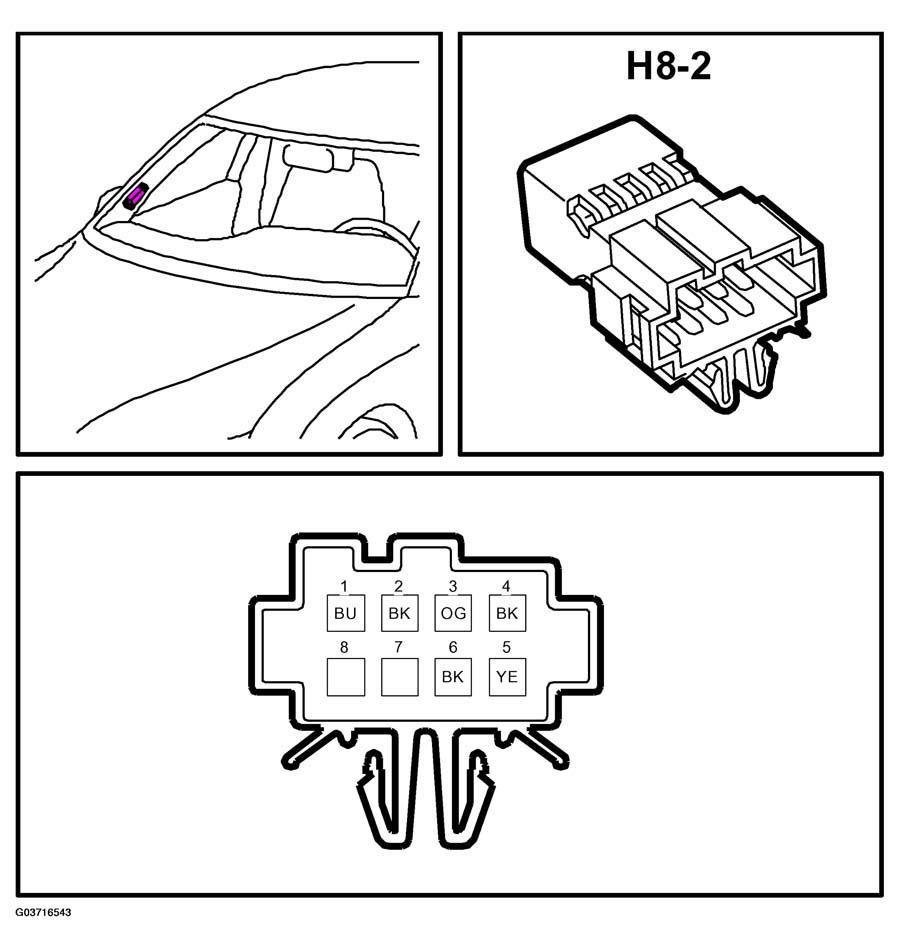

Fig 1: H8-2 Connector End View

G03716543

Courtesy of SAAB-SCANIA OF AMERICA, INC.
