H2-4 Connector End View: Location

Location: in front of the rear wheel housing

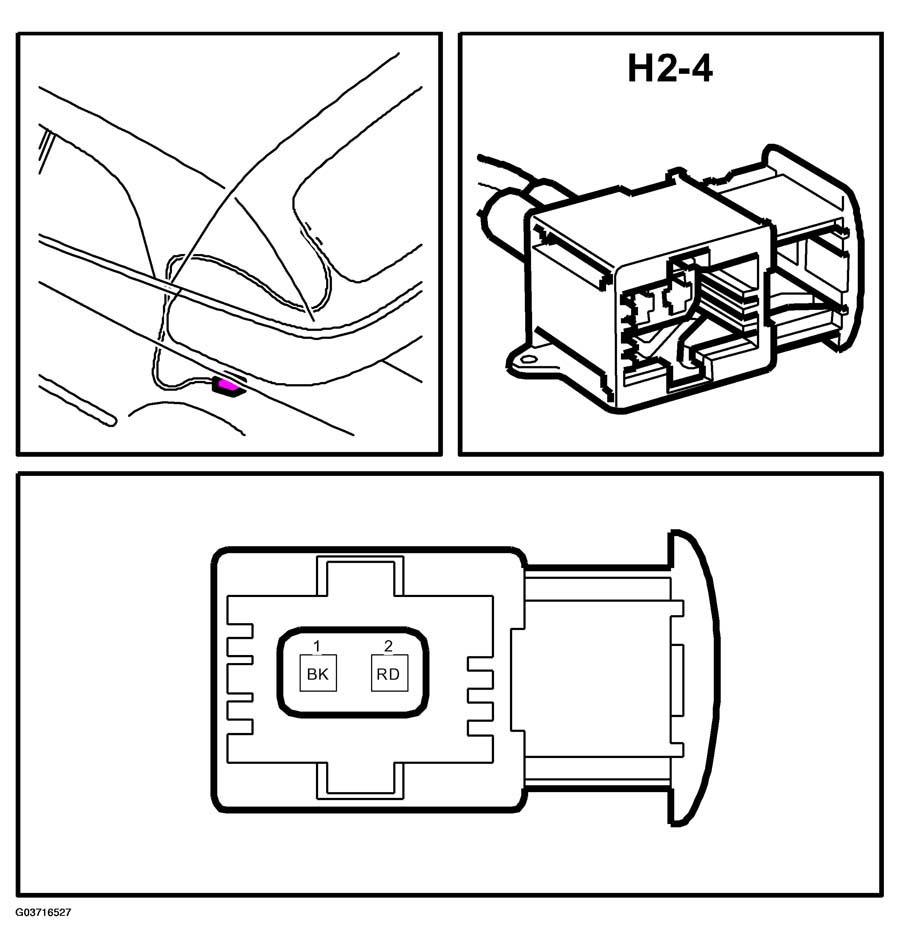

Fig 1: H2-4 Connector End View

G03716527

Courtesy of SAAB-SCANIA OF AMERICA, INC.
