To fit

WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the control module.

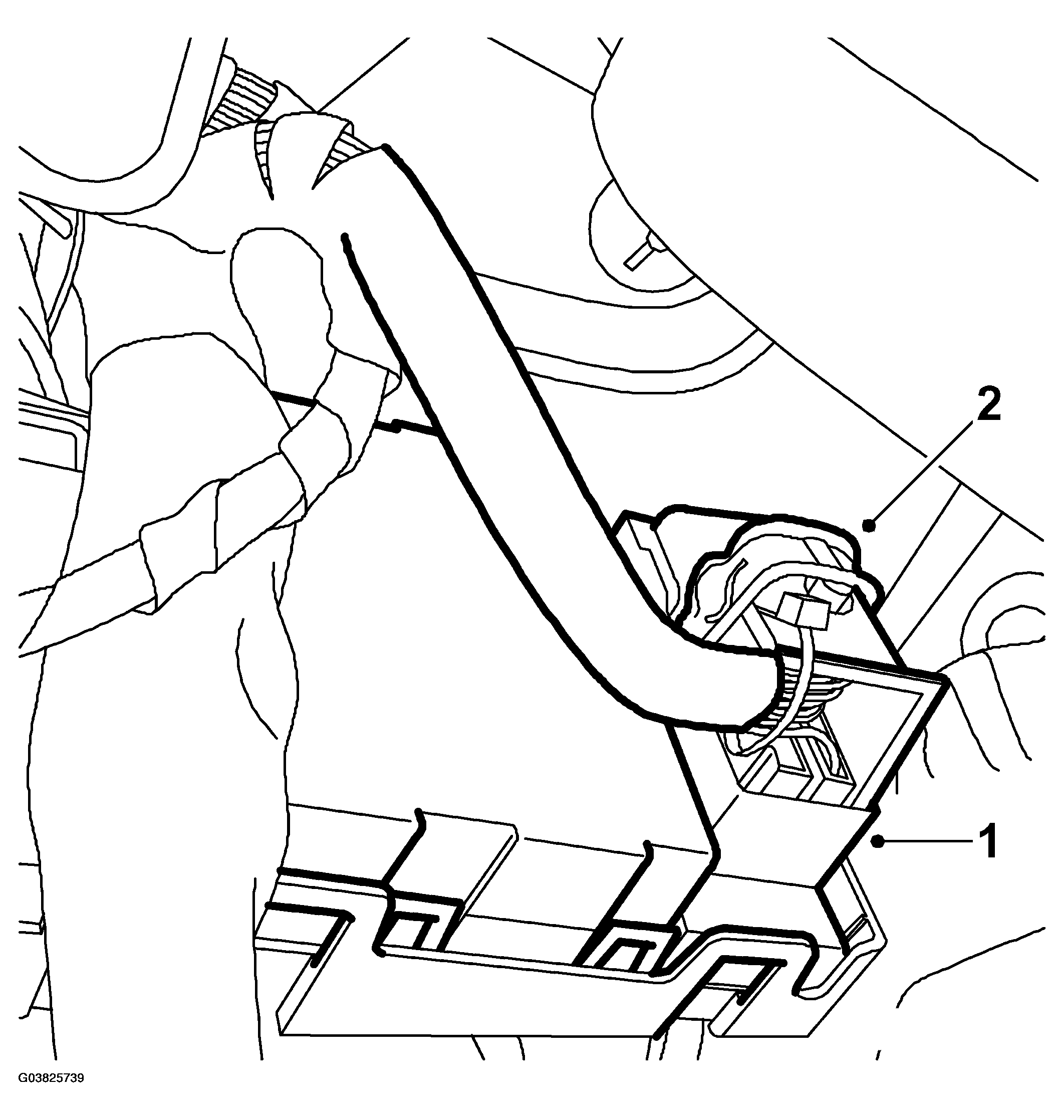

    Fig 1: Illustration For Step - 1-2
    G03825739Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  2. Plug in the connector.
  3. Fit the lower section of the dashboard

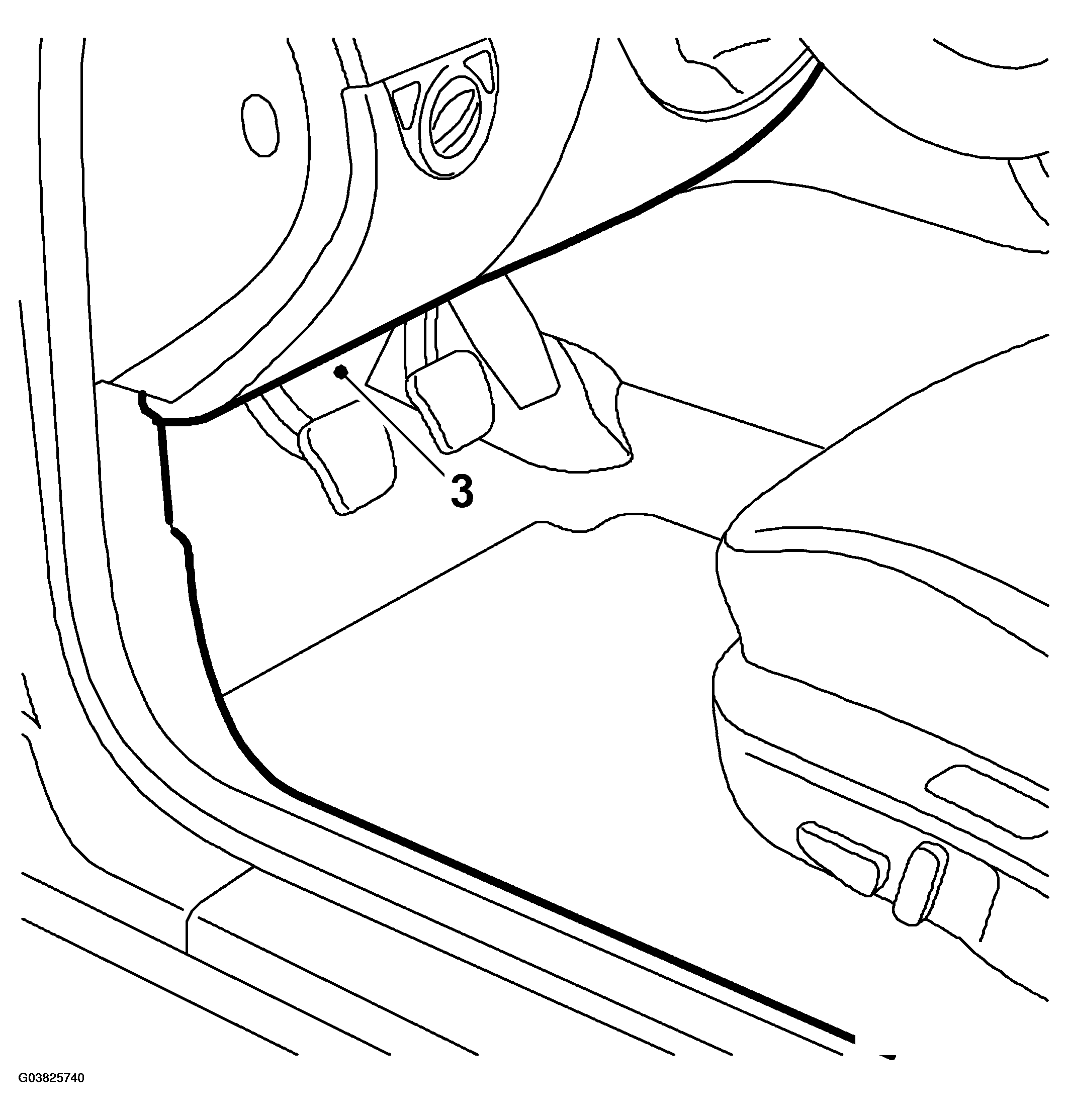

    Fig 2: Illustration For Step - 3
    G03825740Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. If the control module has been replaced:  Carry out PROCEDURES AFTER CHANGING A CONTROL MODULE  .
