Control module, STC (565)

WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  on the RH rear wheel housing

K27A

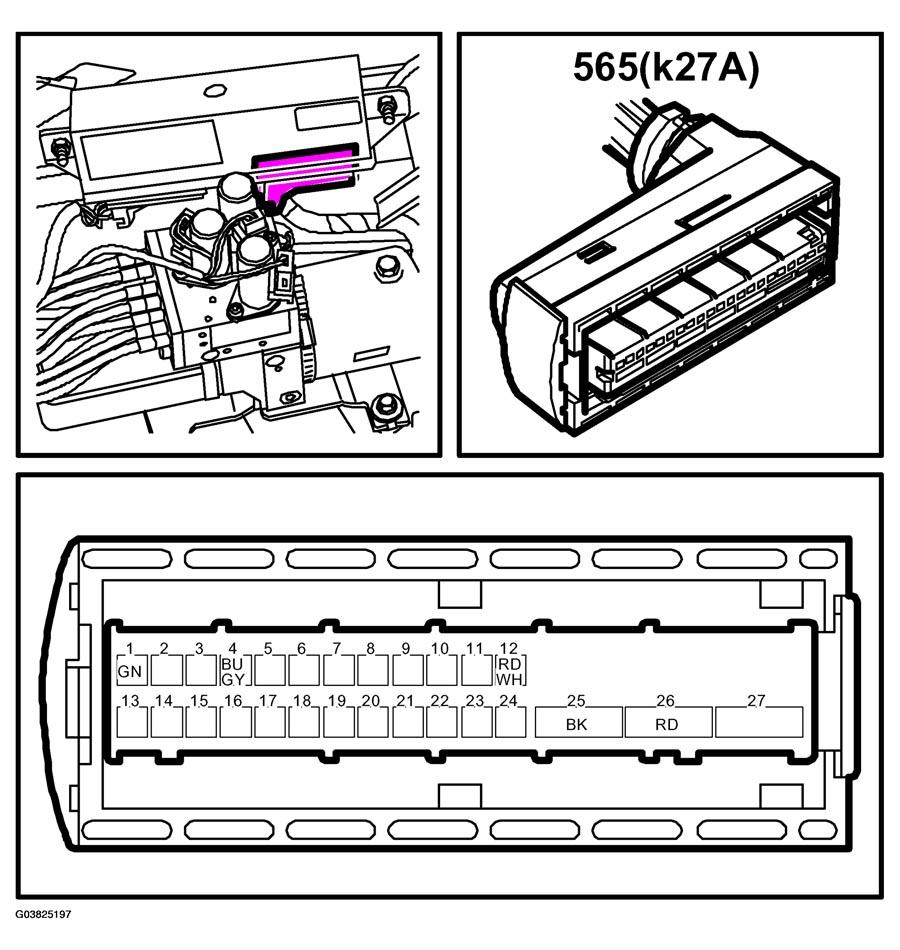

Fig 1: Identifying Connector Terminal - Control Module, STC (K27A)
G03825197Courtesy of SAAB-SCANIA OF AMERICA, INC.

K27B

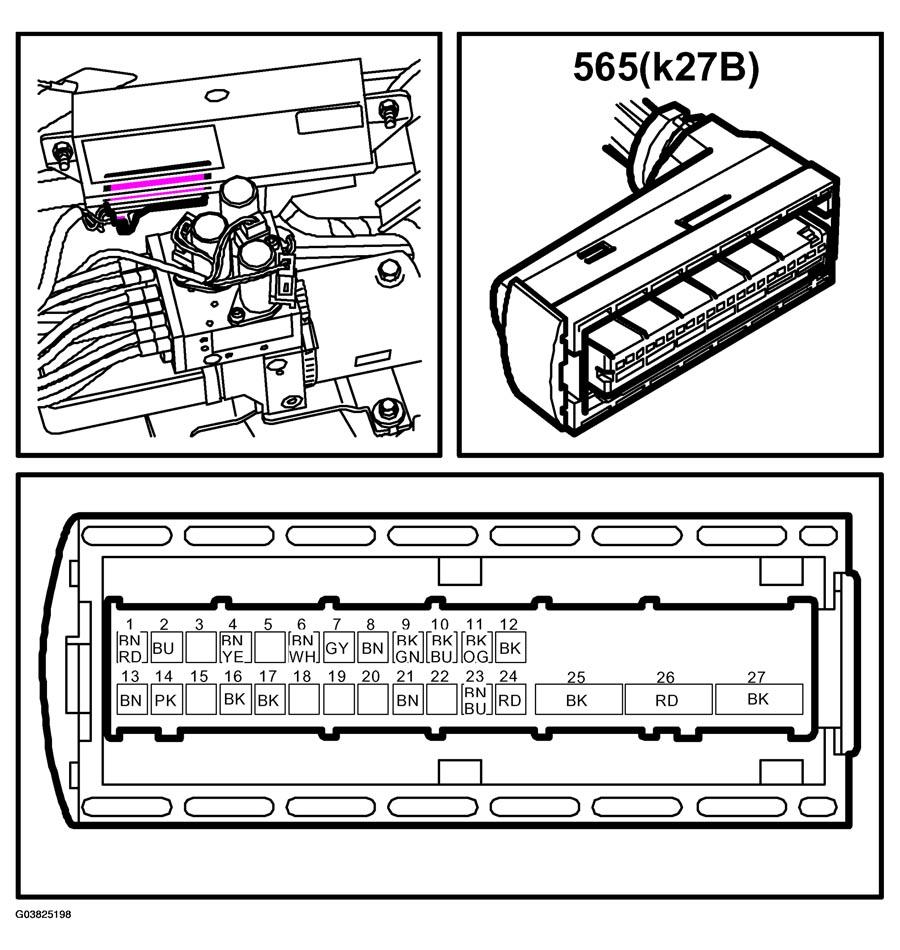

Fig 2: Identifying Connector Terminal - Control Module, STC (K27B)
G03825198Courtesy of SAAB-SCANIA OF AMERICA, INC.
