Main components, cooling system

WARNING: This page is about a different car, the 2005 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

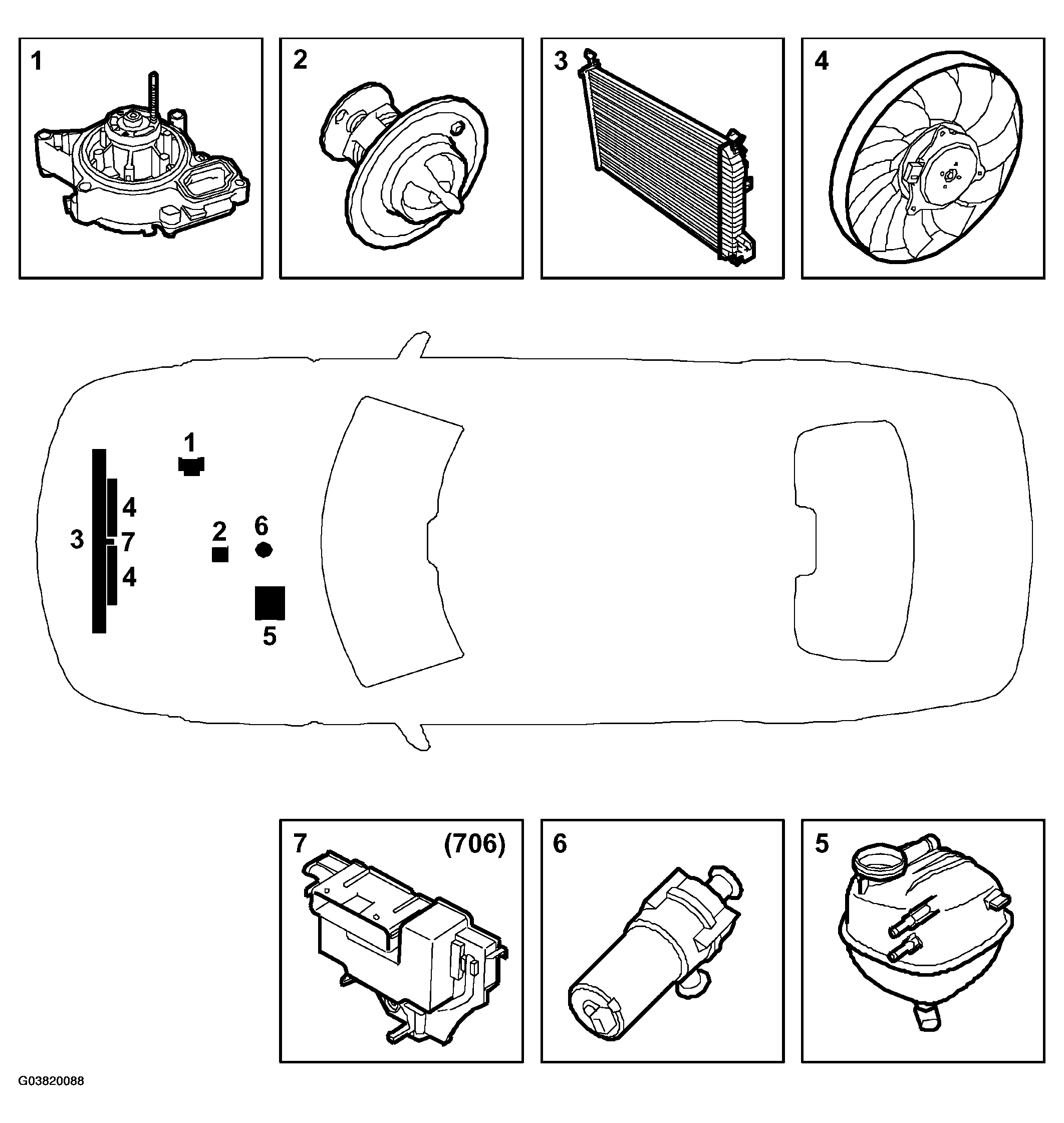

Fig 1: Identifying Main Components, Cooling System
G03820088Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Water pump
  2. Thermostat
  3. Radiator
  4. Radiator fans (2 off)
  5. Expansion tank
  6. Coolant pump
  7. Radiator fan module (706)
