Safety-related torque limitation, 7x: General

The following function can limit engine torque for safety reasons when there is a fault in the throttle control.

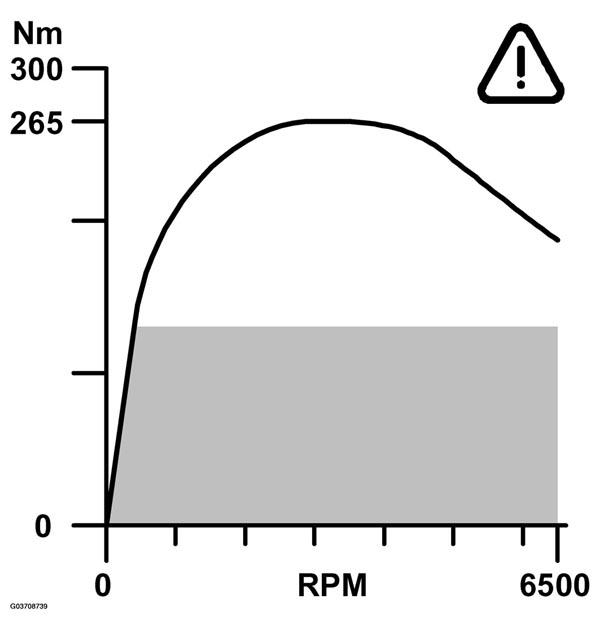

Fig 1: Identifying Safety-Related Torque Limitation Graph 7X

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Max throttle when pedal released (70)
