Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Technical Description >> Request for engine torque, 1x >> Pedal request >> Adaptation of pedal position

Adaptation of pedal position

When the pedal is fully released, the voltage value from potentiometer 1 for the released pedal will be adapted and constitute the idling speed position for the pedal.

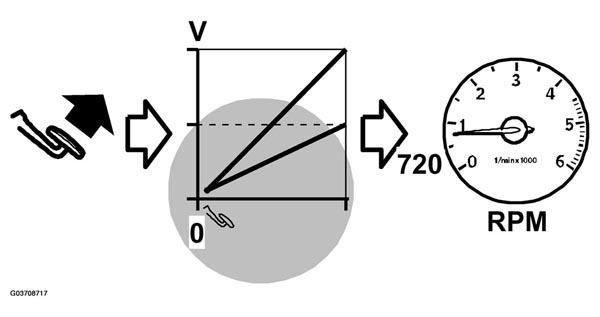

Fig 1: Identifying Adaptation Of Pedal Position
G03708717Courtesy of SAAB-SCANIA OF AMERICA, INC.
