Fuel pump relay (102)

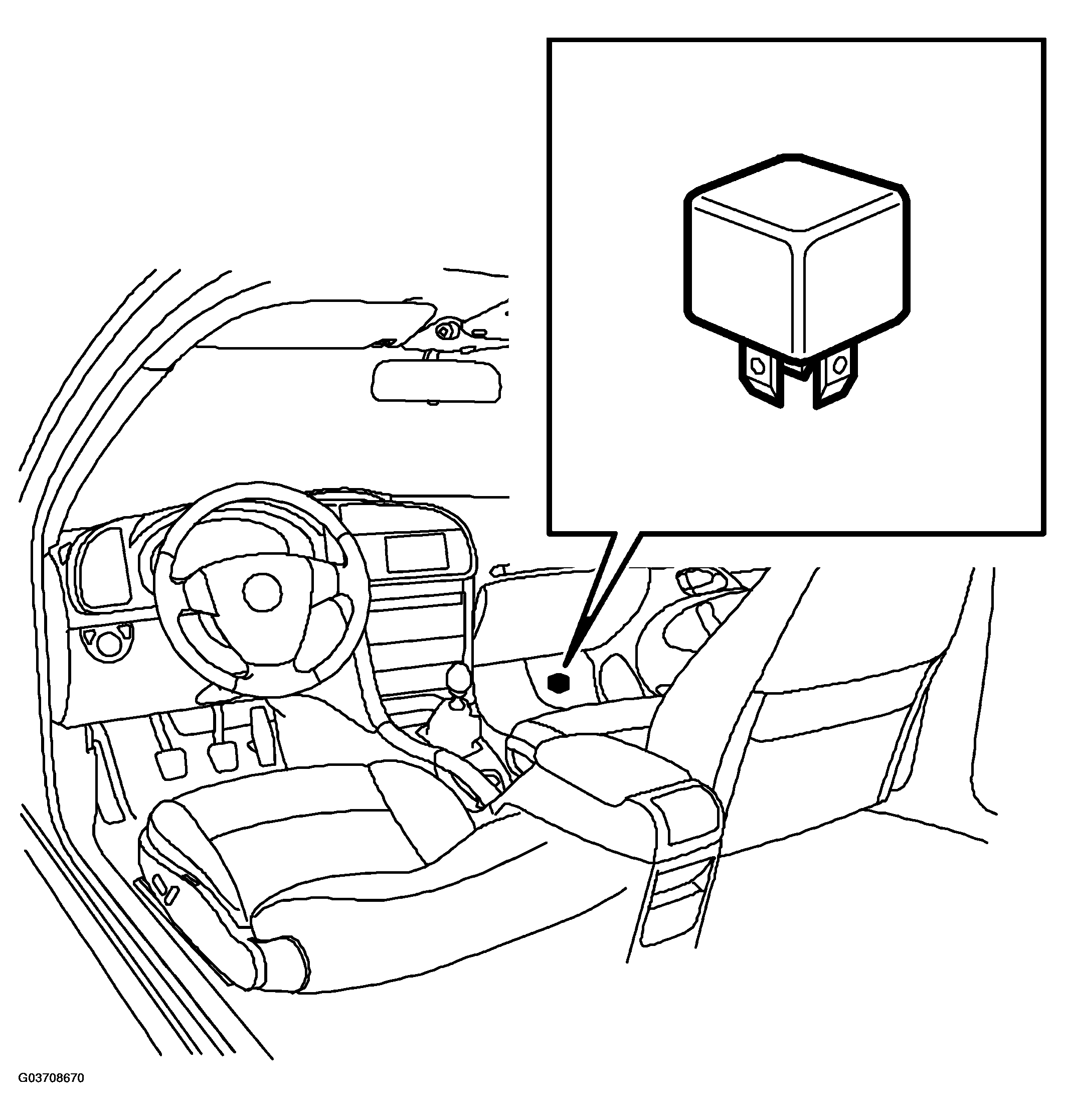

Fig 1: Identifying Fuel Pump Relay (102)
G03708670Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PUMP RELAY (102) TECHNICAL DATA

Resistance, winding at 20°C (68°F) Ohm 85+/-5
Nominal control voltage V 12
Rated current A 30
