Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Component Location >> Pressure sensor A/C (620) >> PSG16

Pressure sensor A/C (620): PSG16

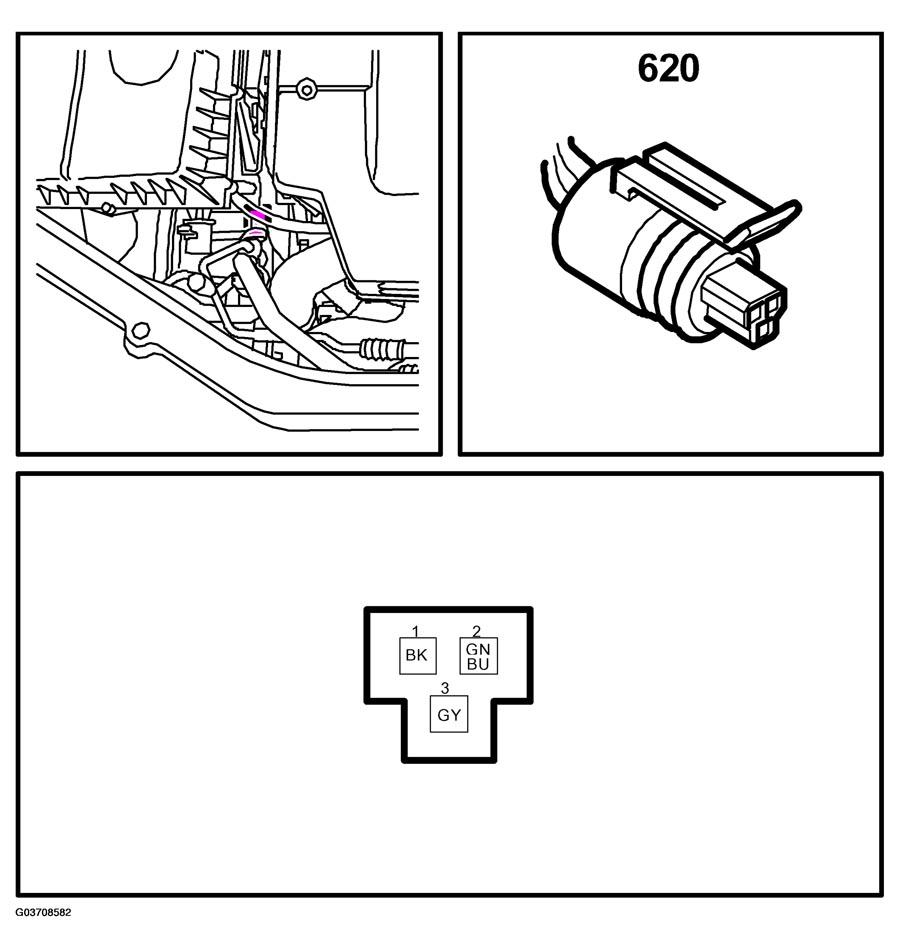

Fig 1: Identifying Pressure Sensor A/C (620) (PSG16)

G03708582

Courtesy of SAAB-SCANIA OF AMERICA, INC.
