Injector, cyl. 2 (206b): Location:: Simtec

under the cable duct

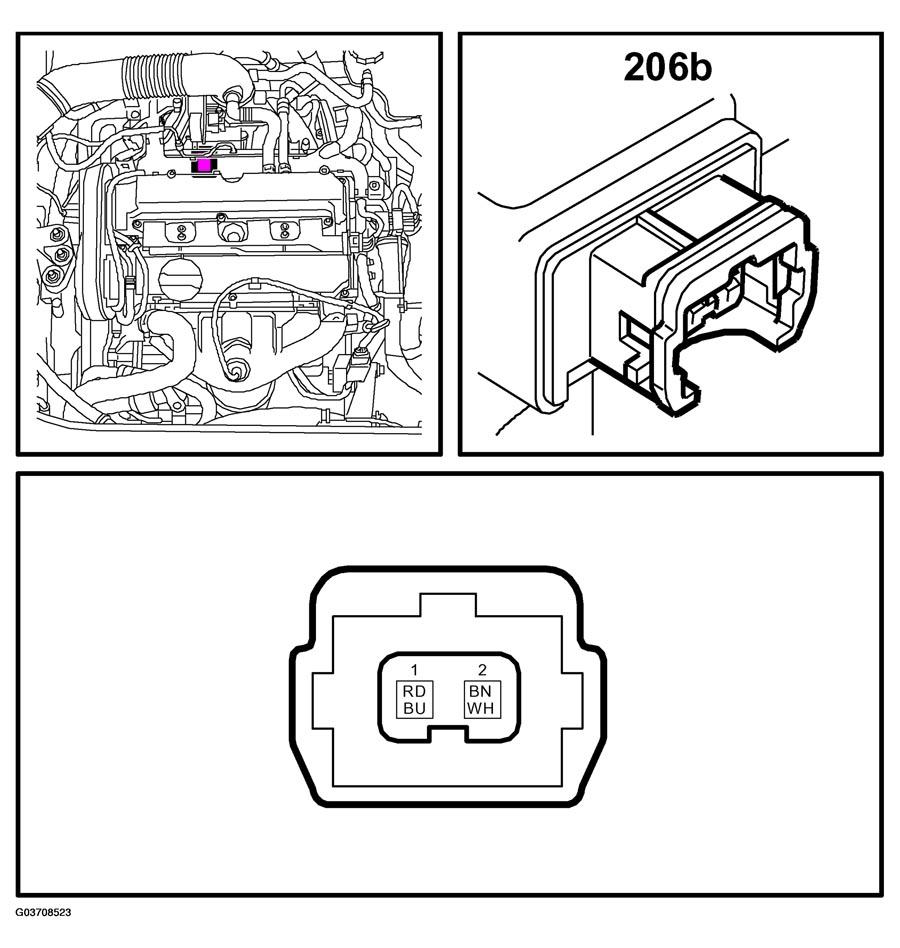

Fig 1: Identifying Injector Cyl 2 Connector Pinout (Simtec)

G03708523

Courtesy of SAAB-SCANIA OF AMERICA, INC.
