Generator (2): Location:: T8

on the front long side of the engine (right)

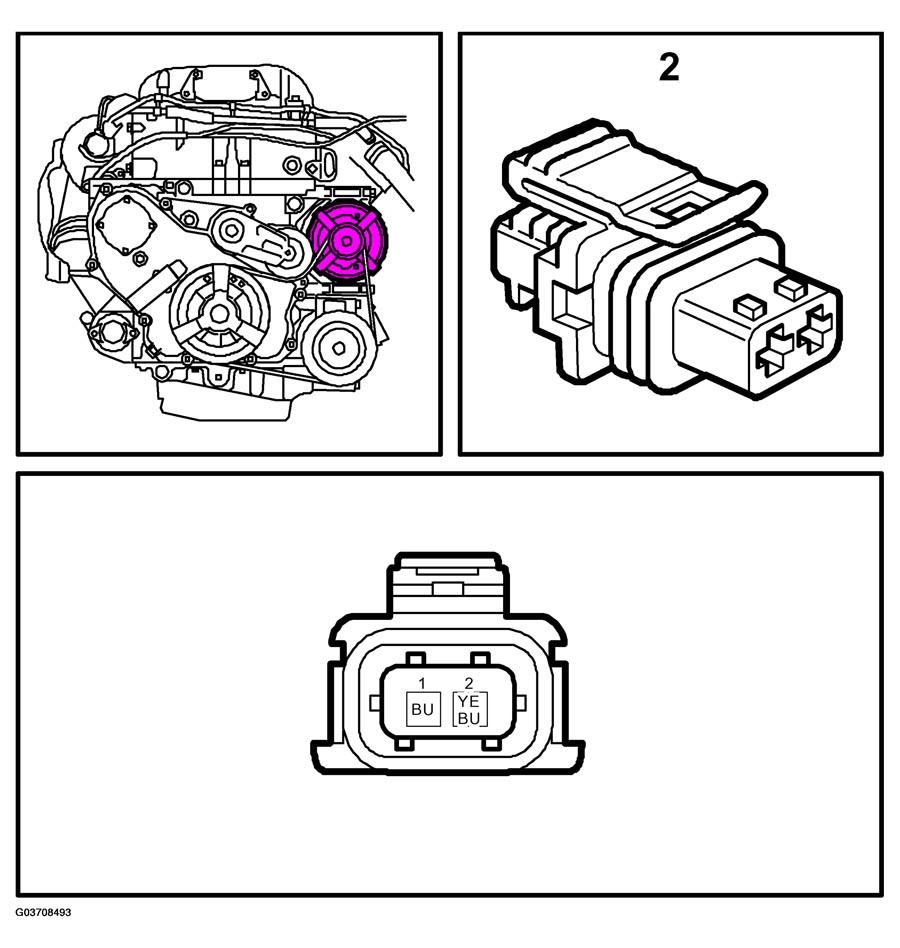

Fig 1: Identifying Generator Connector Pinout (T8)

G03708493

Courtesy of SAAB-SCANIA OF AMERICA, INC.
