Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Component Location >> Main relay, engine control system (229) >> Location: >> PSG16

Main relay, engine control system (229): Location:: PSG16

in underhood electrical center 342

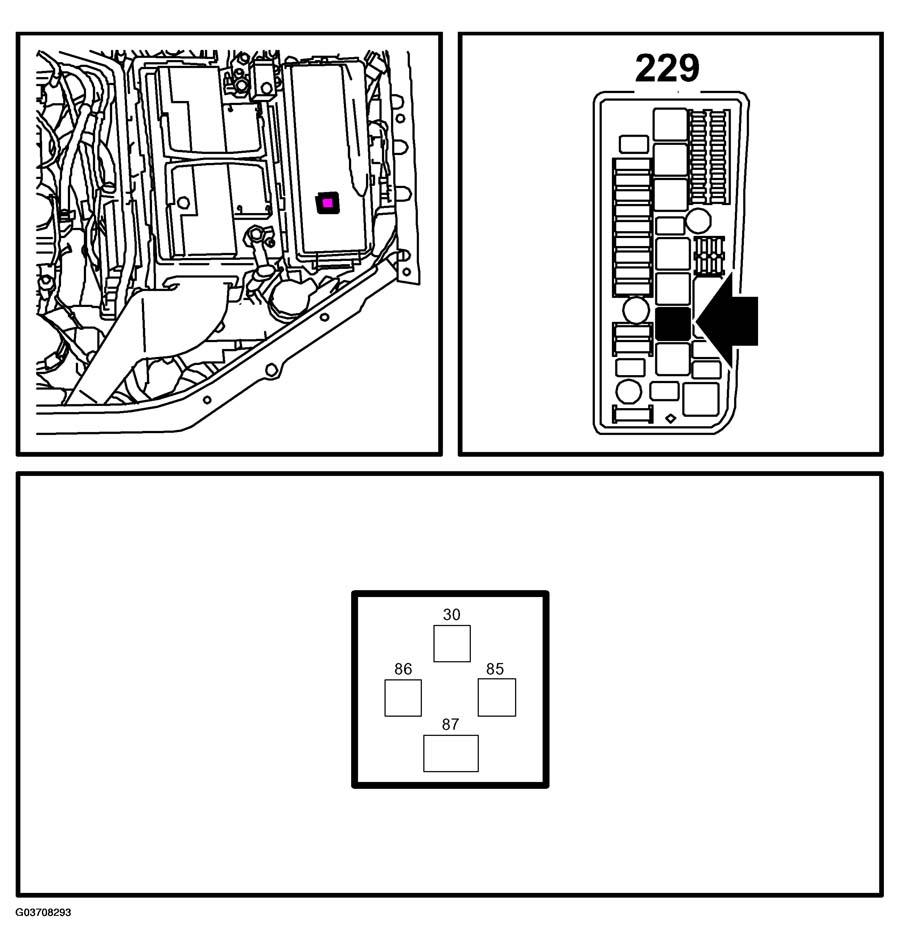

Fig 1: Identifying Fuel Pump Relay Connector Pinout (PSG16)

G03708293

Courtesy of SAAB-SCANIA OF AMERICA, INC.
