To fit

  1. Fit the CD player/changer into the bracket.
  2. Fit the two CD player/changer retaining screws.

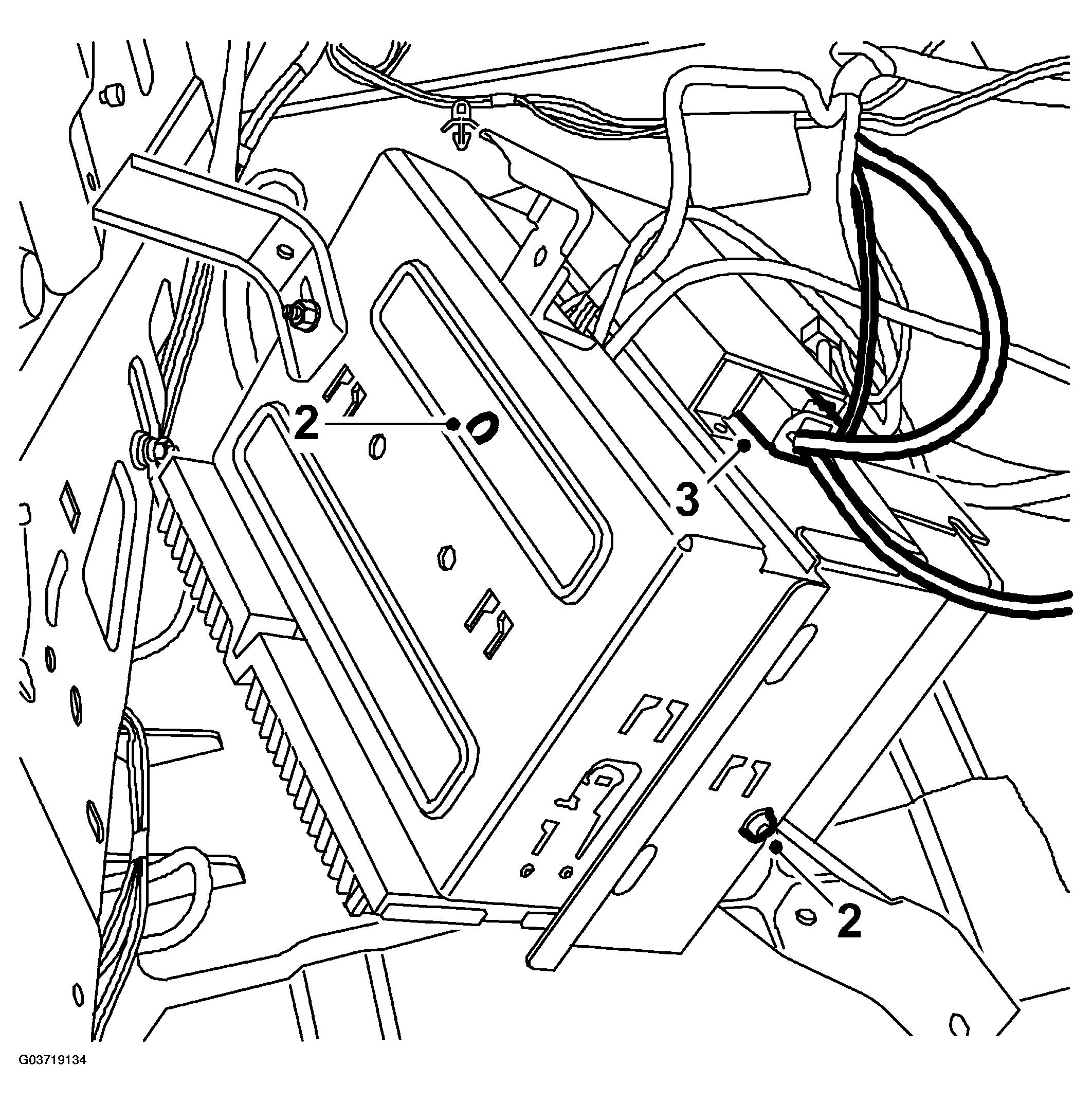

    Fig 1: Illustration For Step 2
    G03719134Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  3. Plug in the connector.
  4. Fit the bracket with the CD player/changer.
  5. Fit the bracket screws.

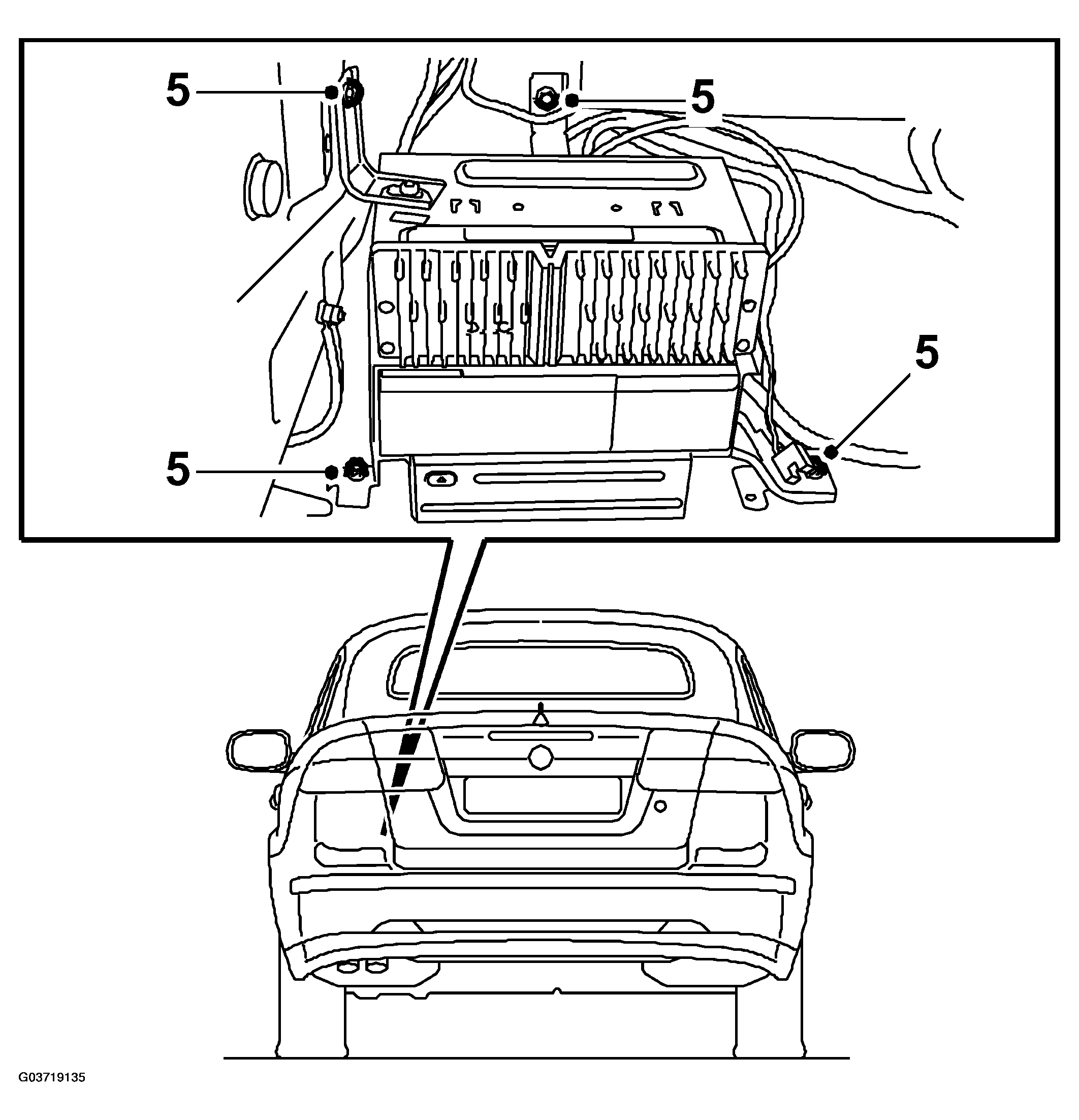

    Fig 2: Illustration For Step 5
    G03719135Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Carry out actions after replacement of control module.
  7. Check the function.
  8. Fit the luggage compartment LH side trim.
