Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Body & Frame >> Glass, Windows And Mirrors >> Adjustment/Replacement >> Side window, front door >> To remove

To remove

  1. Open the window approx. 5 cm.
  2. Remove Door trim, front, 4D and fold down the water barrier.

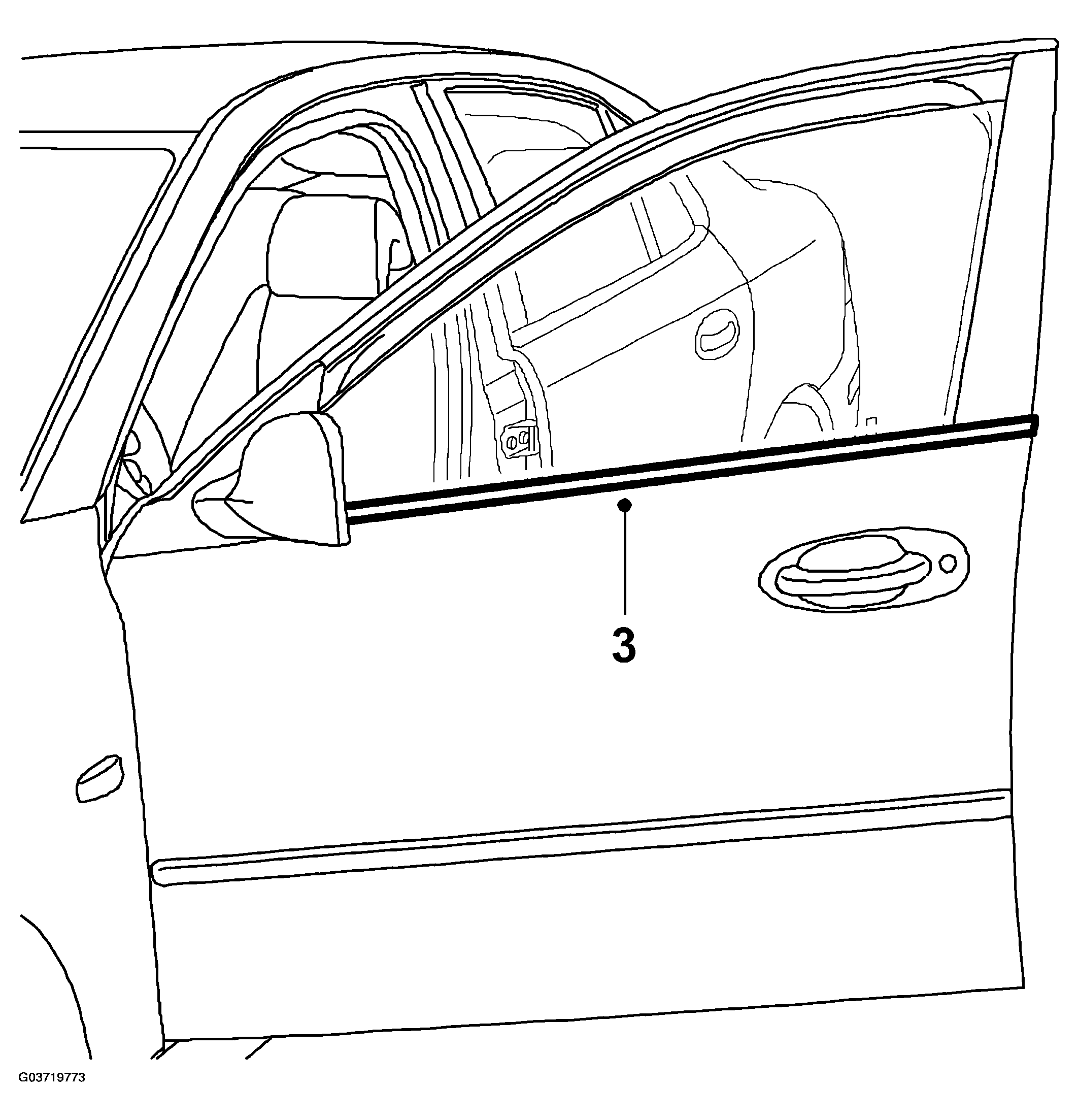

  3. Remove the outer weatherstrip. Lift up the rear edge using the removal tool.
    Fig 1: Illustration For Step 3
    G03719773Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Pull the strip out from the base of the door mirror.

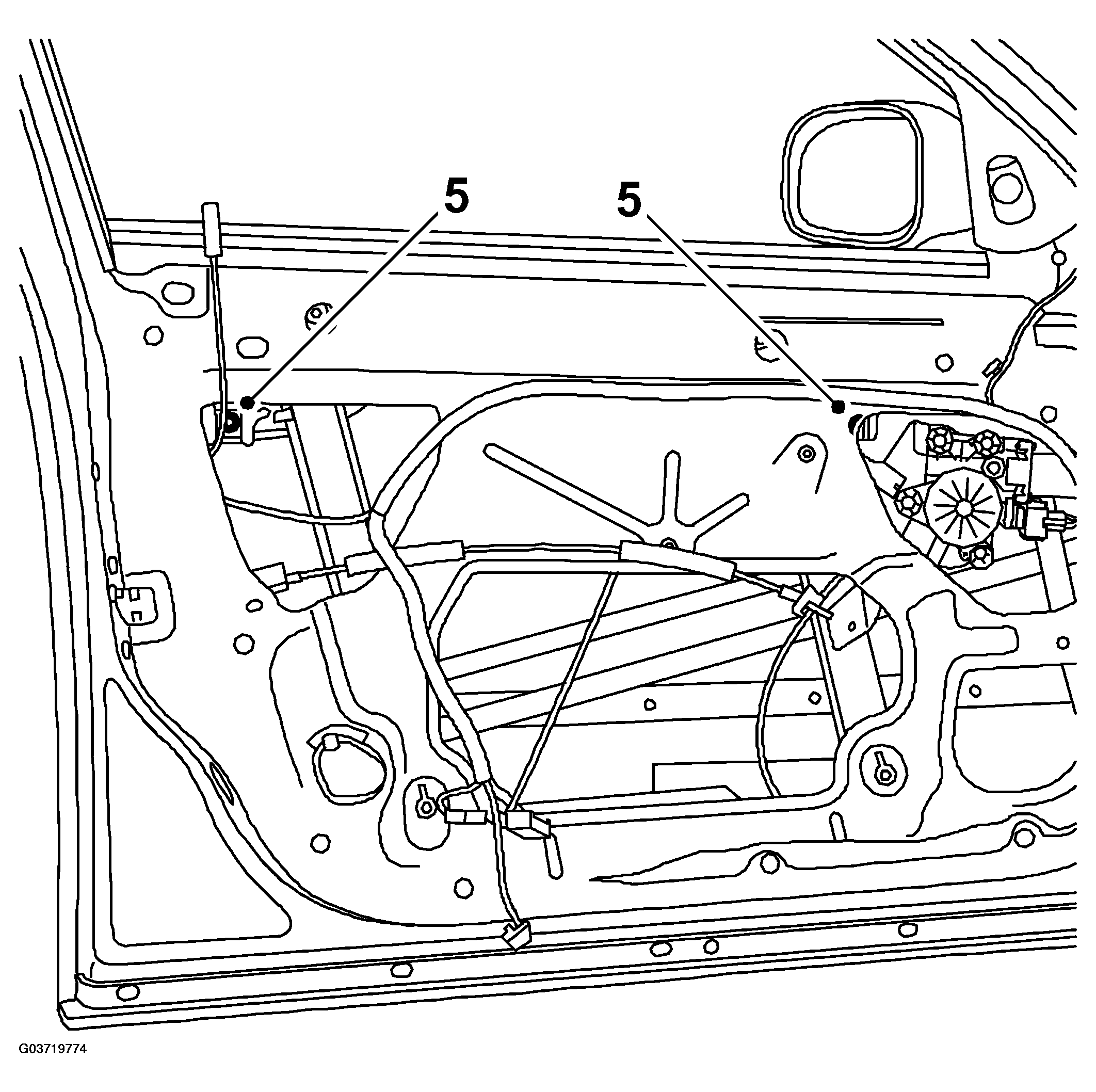

  5. Slacken the bolts to release the window.
    Fig 2: Illustration For Step 5
    G03719774Courtesy of SAAB-SCANIA OF AMERICA, INC.

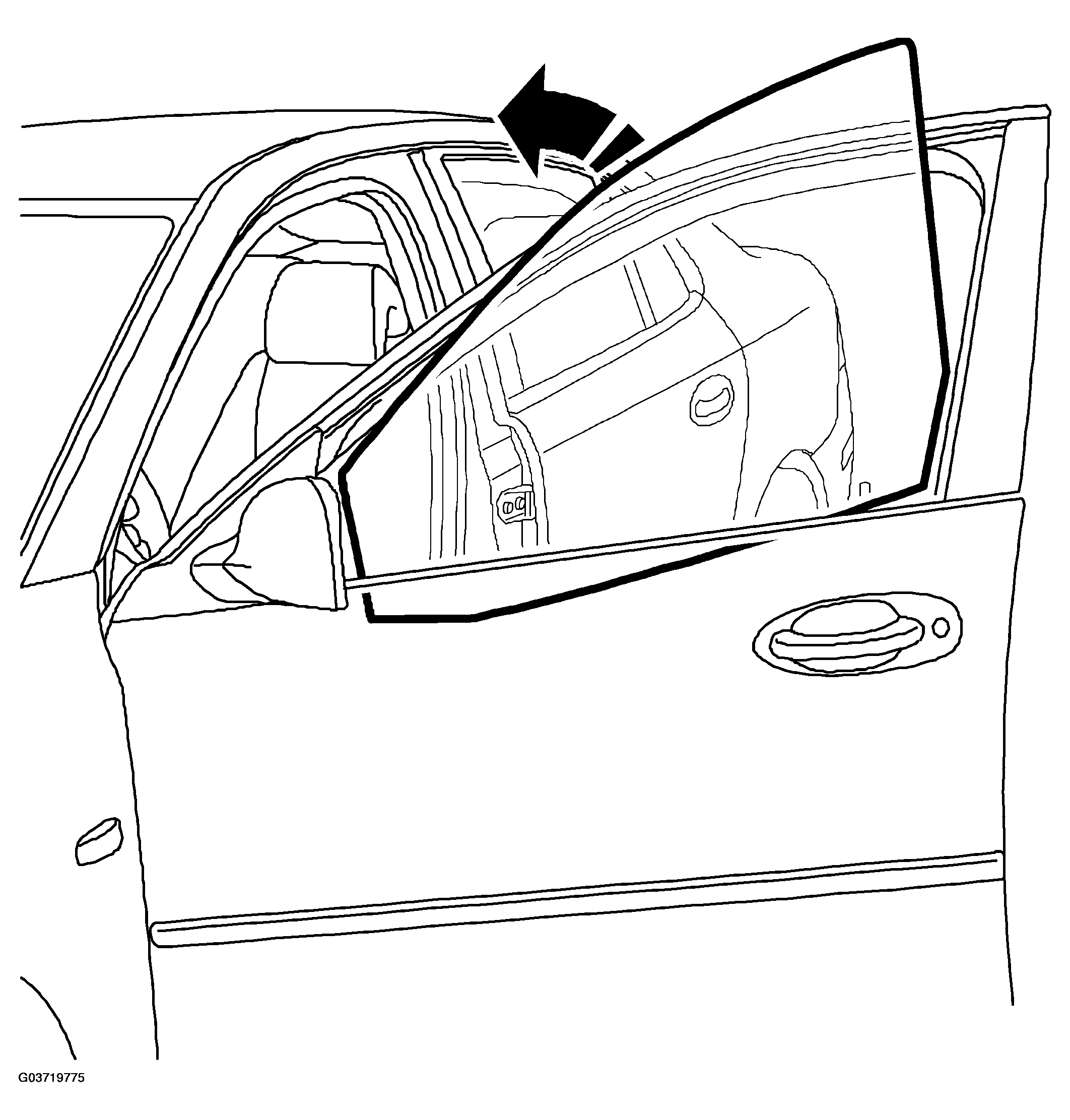

  6. Raise the rear edge of the window, angle it out slightly and lift it up.
    Fig 3: Raising Rear Edge Of Window
    G03719775Courtesy of SAAB-SCANIA OF AMERICA, INC.
