To remove

  1. Remove the door trim.
  2. Remove the cover in the window frame cover.

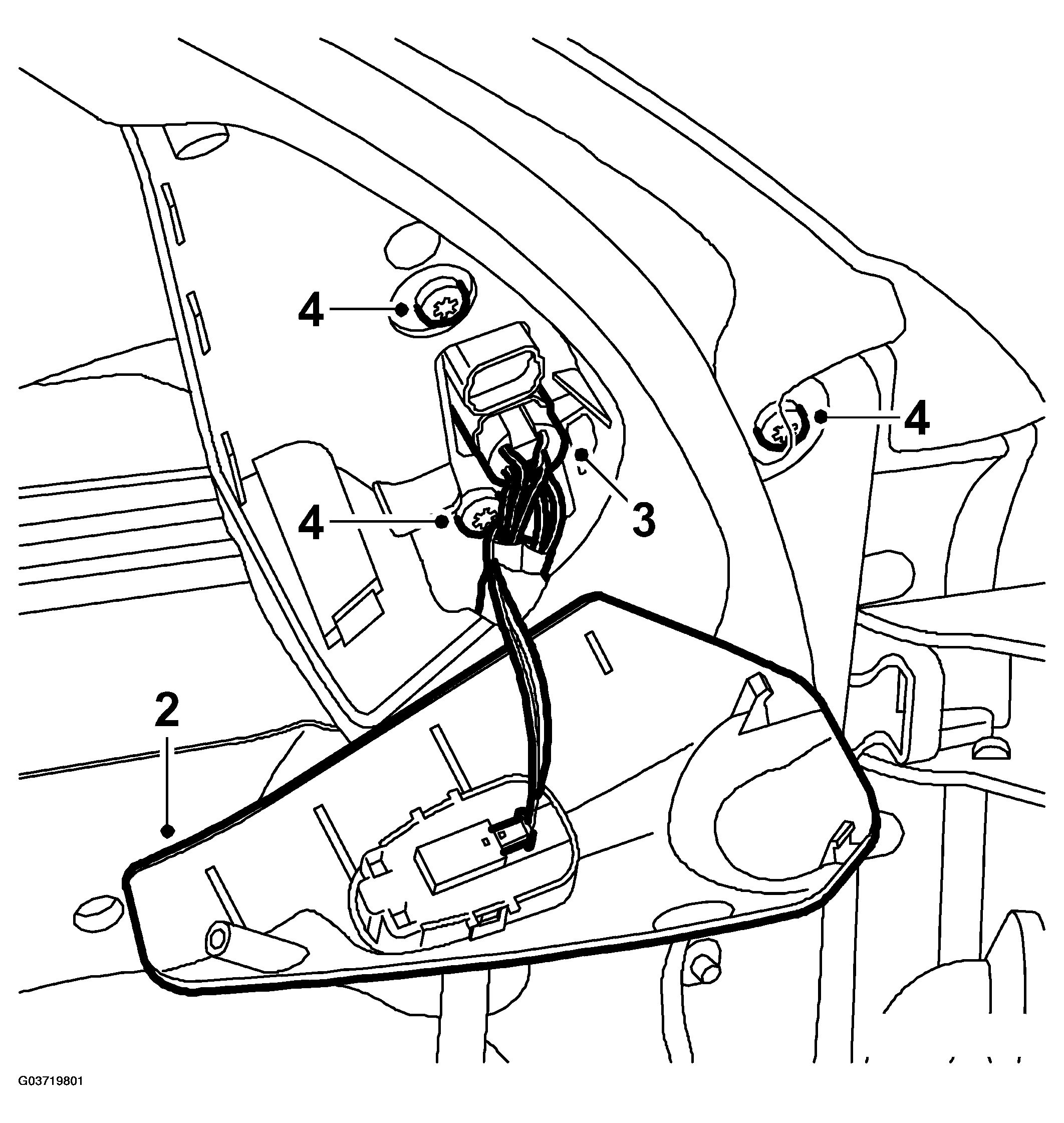

    Fig 1: Illustration For Steps 2-4
    G03719801Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Detach the door mirror connector.
  4. Remove the screws.
  5. Lift out the door mirror.
