Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Wash/Wipe Systems >> Adjustment/Replacement >> Washer fluid level sensor >> To remove

To remove

  1. Remove the front bumper casing.
  2. Unplug the level sensor connector.

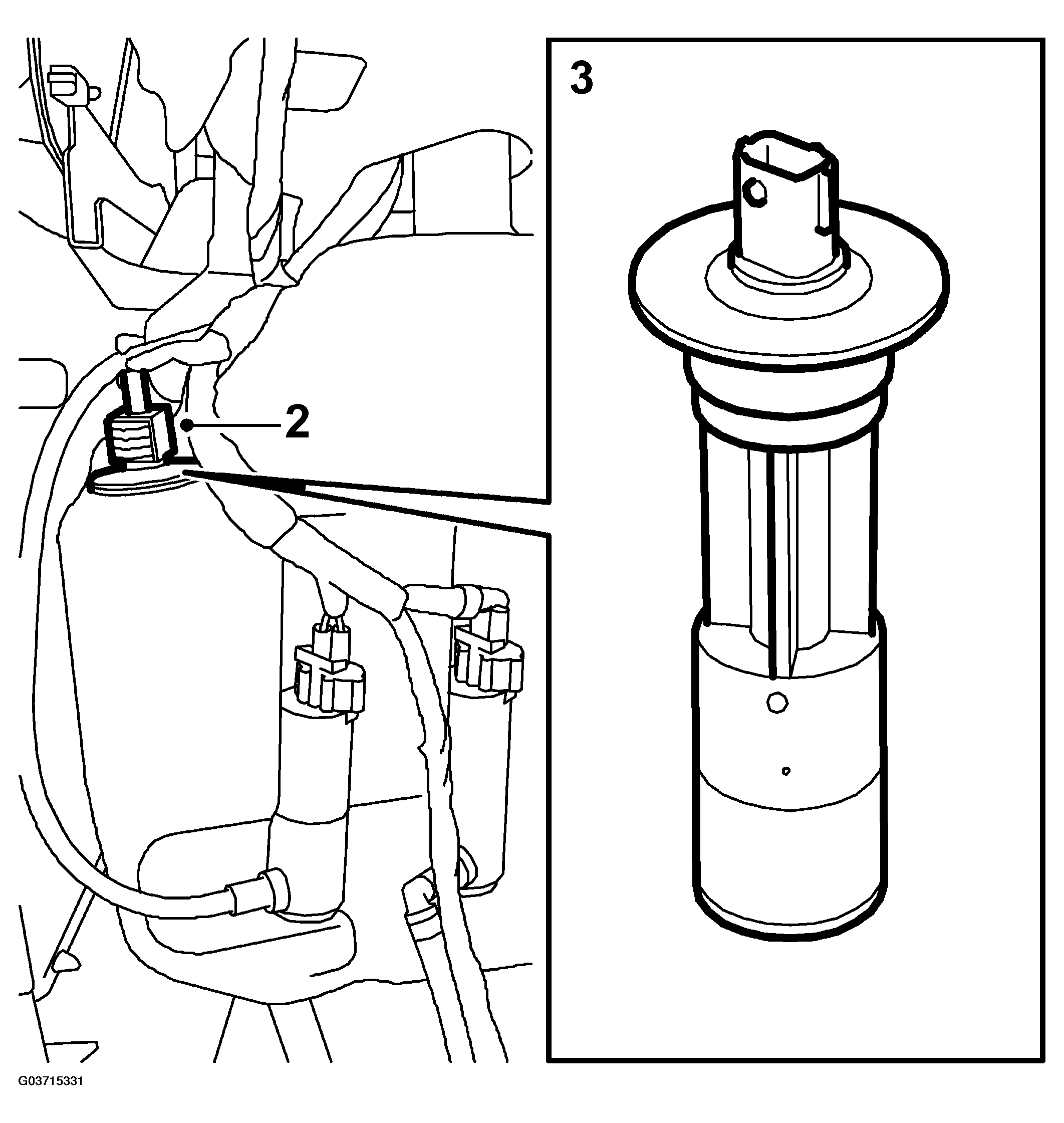

    Fig 1: Illustration For Step 2 And 3
    G03715331Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Withdraw the level sensor from the washer fluid reservoir.
