Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Wash/Wipe Systems >> Adjustment/Replacement >> Rain sensor, CV >> To remove

To remove

  1. Remove the upper windscreen frame trim.
  2. Unplug the connector.
    NOTE: Be careful when the catches are pushed out of the bracket so that the windscreen is not damaged.

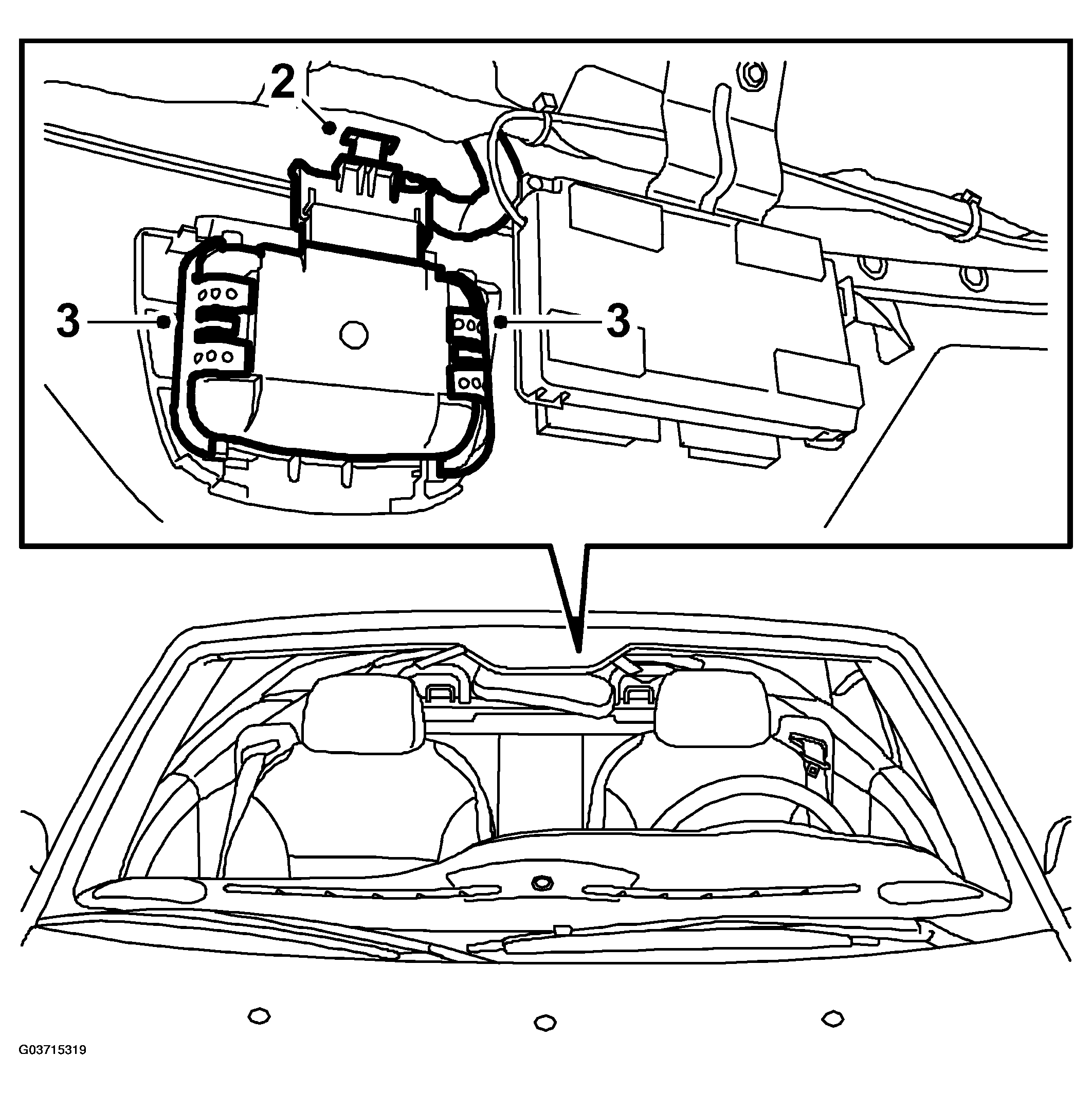

    Fig 1: Illustration For Step 2 And 3
    G03715319Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Release the clamps and remove the rain sensor by pressing the clamps out towards the windscreen.
