Pressure switch, power steering fluid (739): Connection

PIN DESCRIPTION

Pin No. Signal type Description
1 Signal The pin is grounded if fluid pressure is low. Connected to ECM pin 22(A).

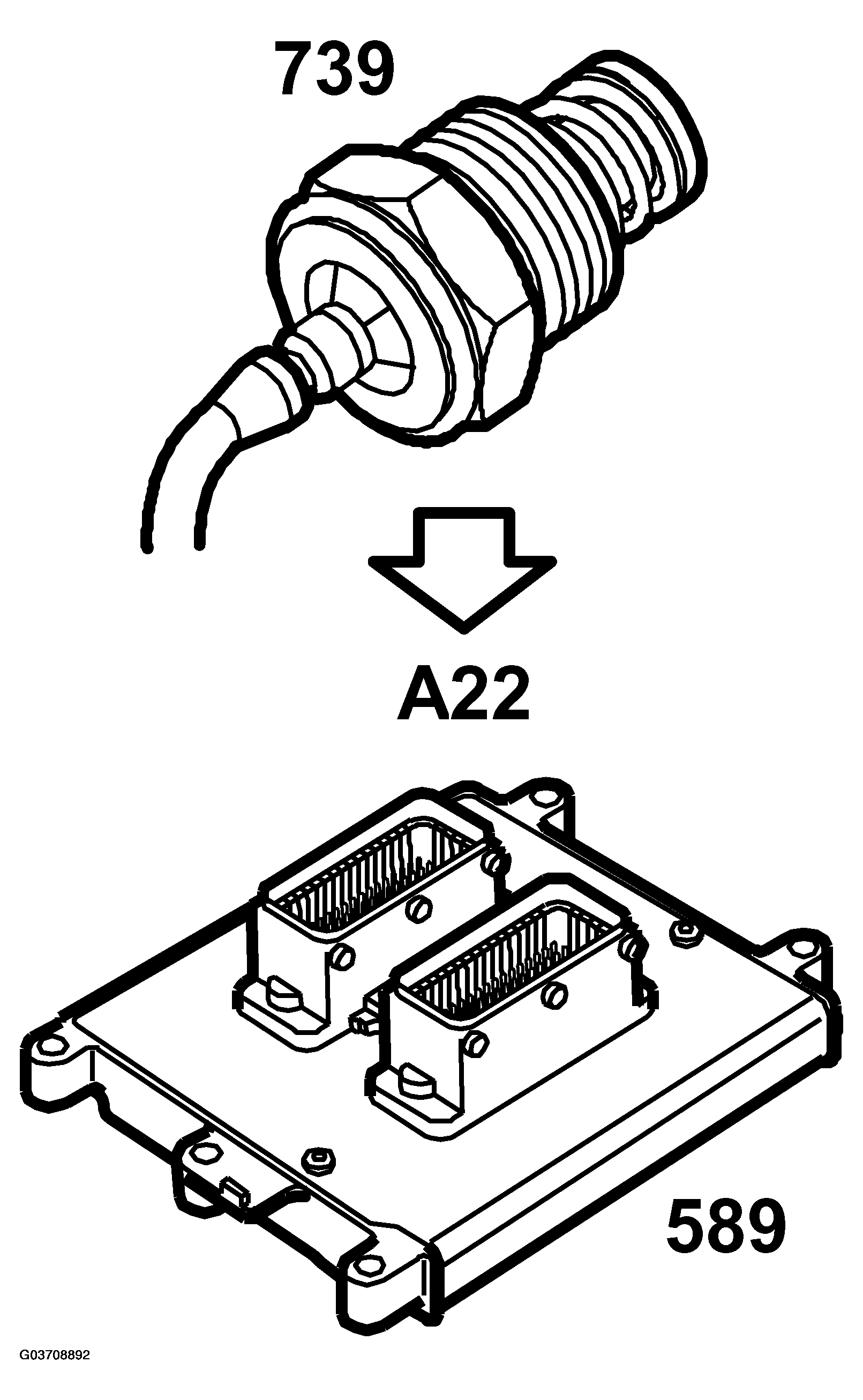

Fig 1: Identifying Power Steering Fluid Pressure Switch (739) Functional Diagram
G03708892Courtesy of SAAB-SCANIA OF AMERICA, INC.

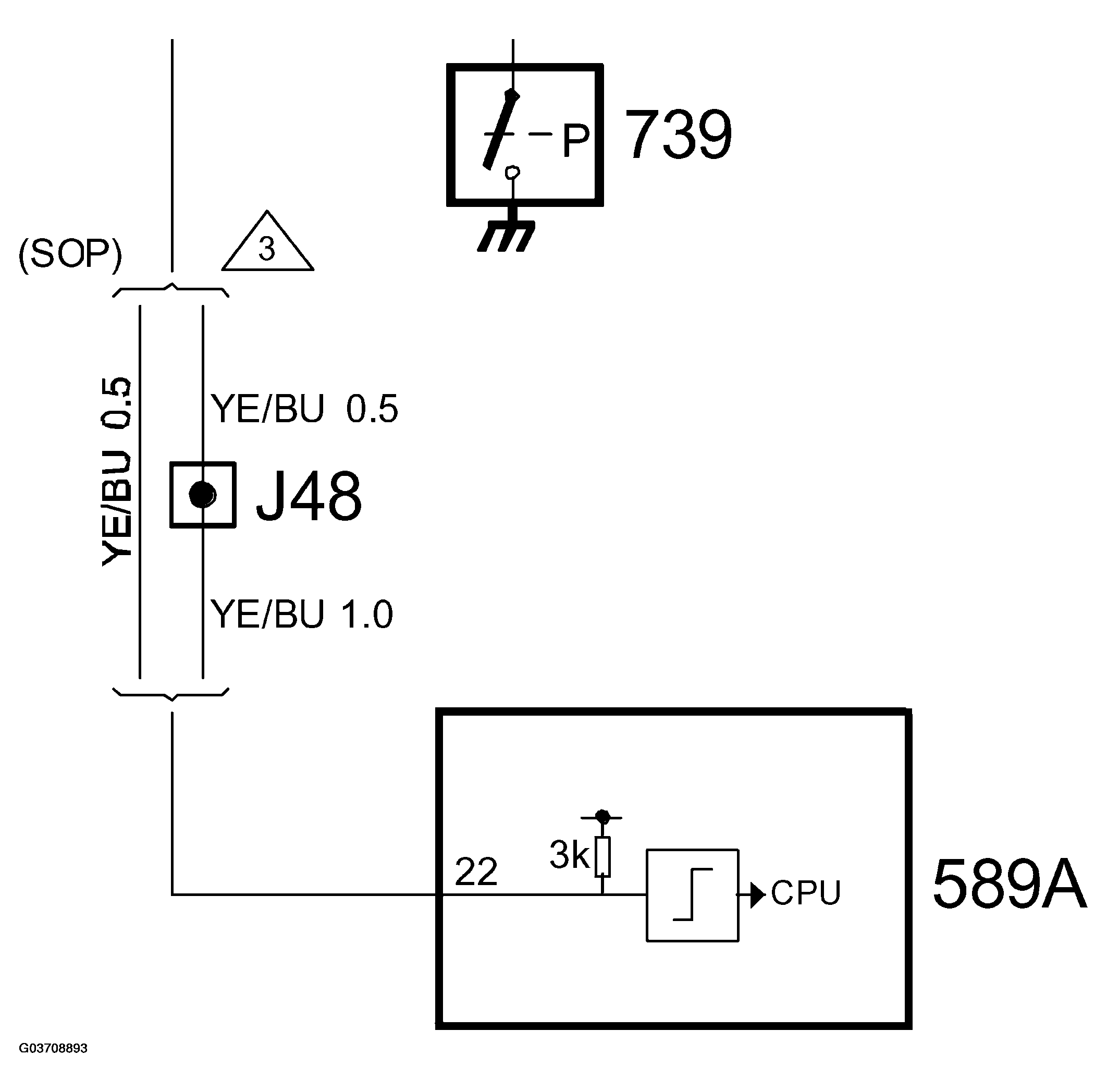

Fig 2: Identifying Power Steering Fluid Pressure Switch (739) Circuit Diagram
G03708893Courtesy of SAAB-SCANIA OF AMERICA, INC.
