DTC P1131: O2S Switch Point - Lean (Sensor 1): Notes

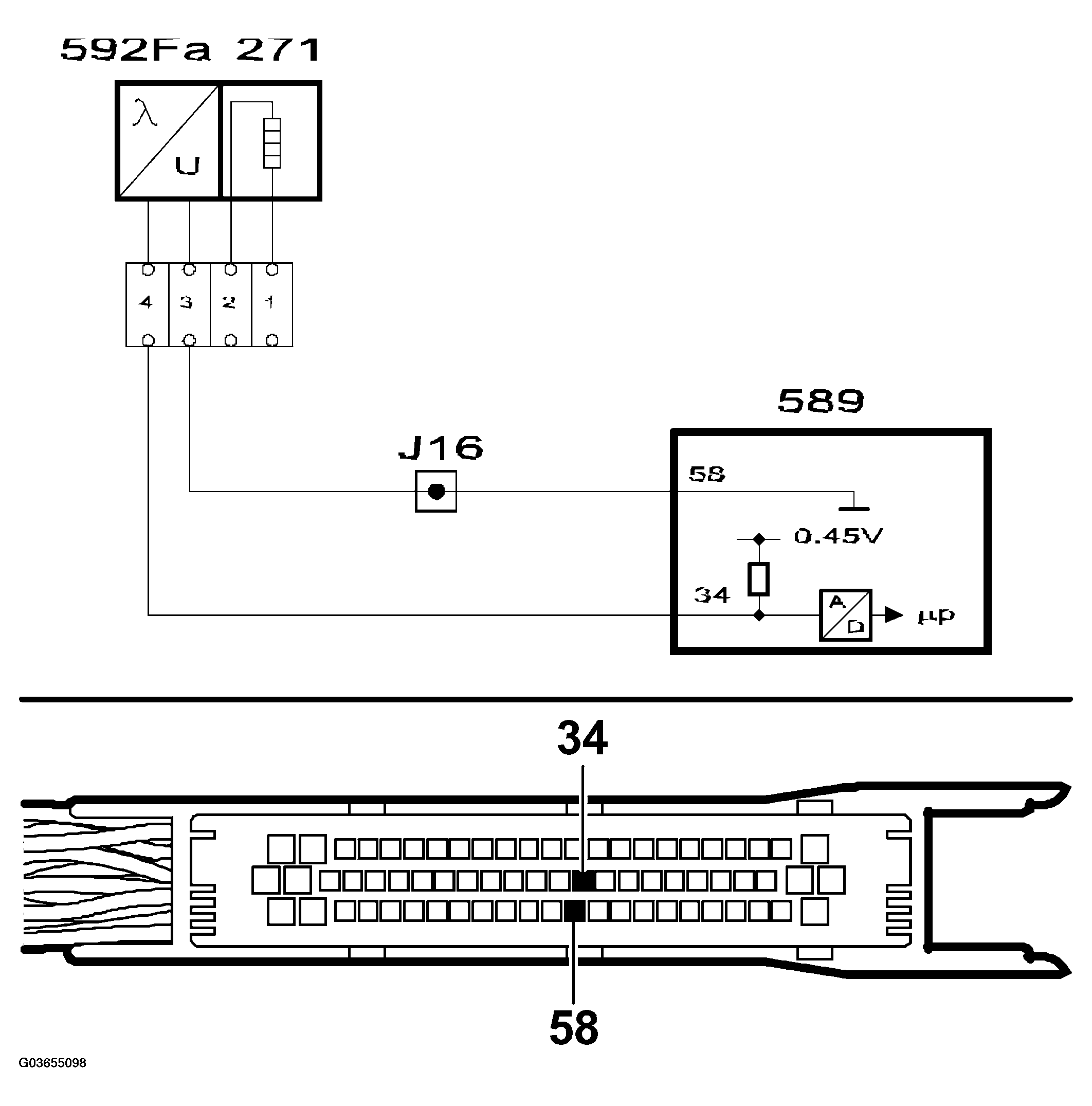

Fig 1: O2S Switch Circuit Diagram (P1131)

G03655098

Courtesy of SAAB-SCANIA OF AMERICA, INC.
