Home >> Saab >> 2003 >> 9-5 Linear, 4D Sedan, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4 CYL. >> Adjustment-Replacement >> Intake air temperature sensor >> To remove

To remove

  1. Remove the rubber cap and unplug the connector.

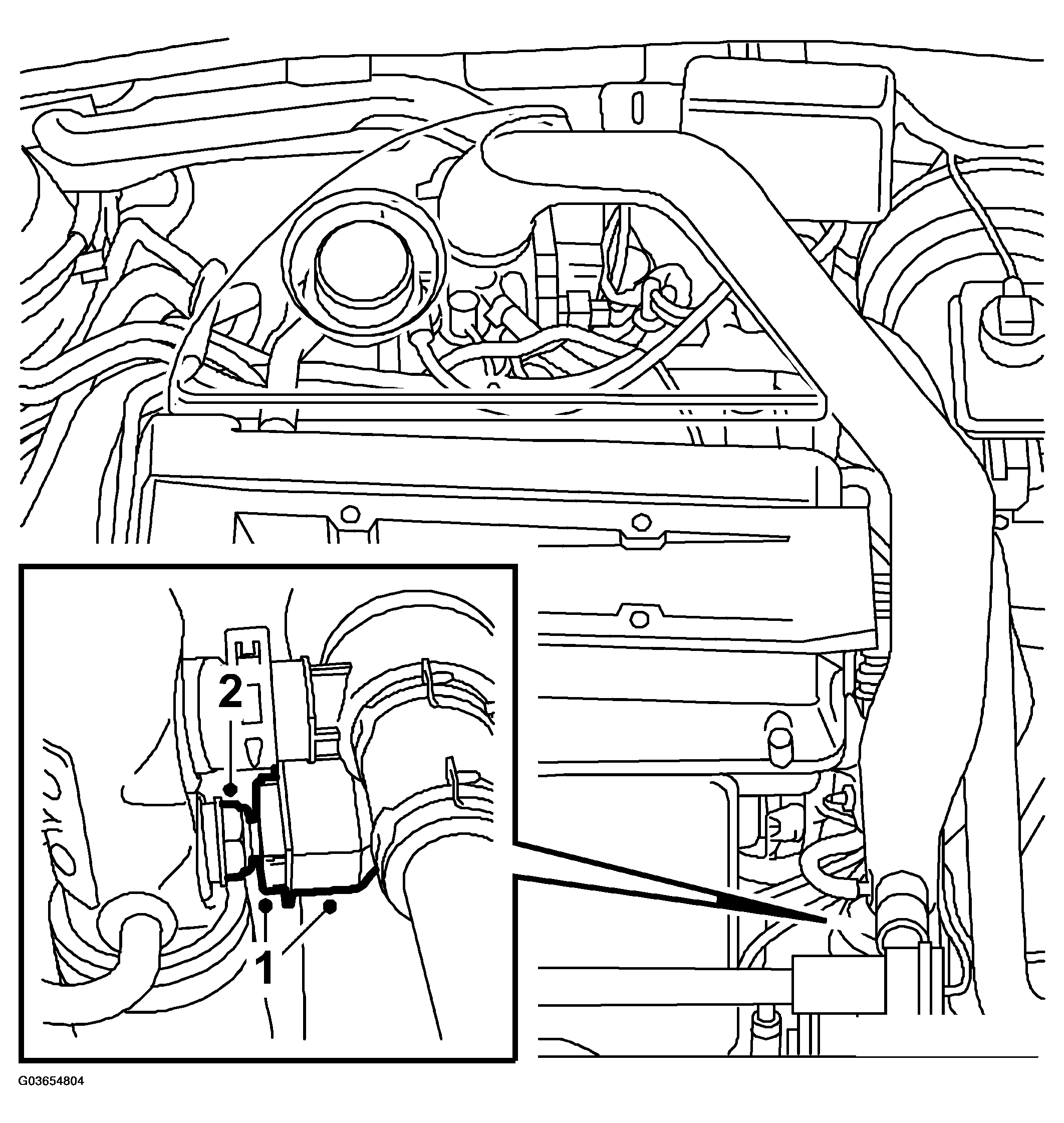

    Fig 1: Illustration For Steps 1-2
    G03654804Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the sensor.
