DTC P1532: Pedal Position Sensor 1 & 2 Circuit - Control Module Inputs Shorted To Each Other: Notes

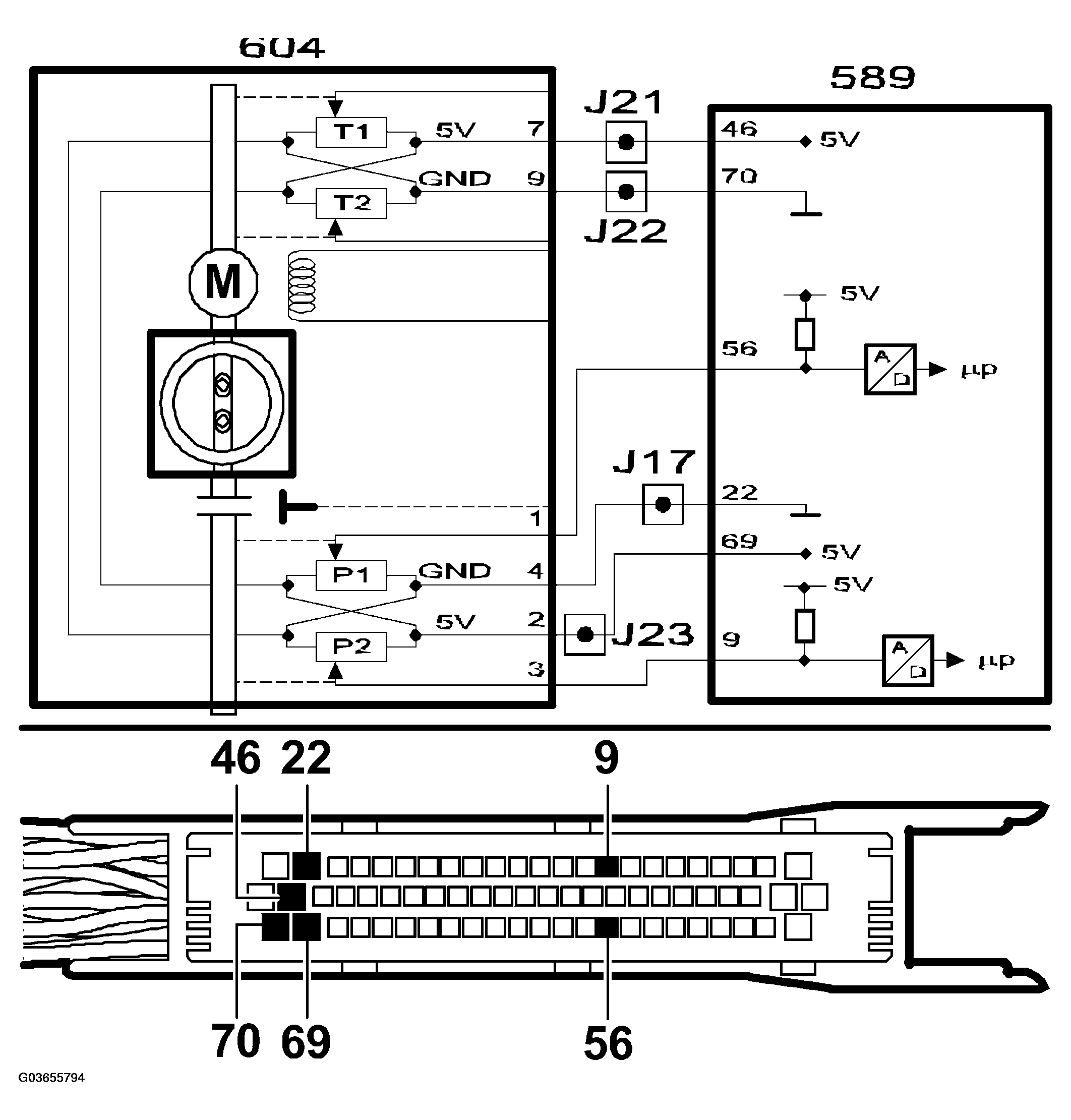

Fig 1: Fault Symptoms - P1532 Pedal Position Sensor 1 And 2 Circuit Diagram
G03655794Courtesy of SAAB-SCANIA OF AMERICA, INC.
