DTC P0134: O2S Circuit - No Activity Detected (Sensor 1): Notes

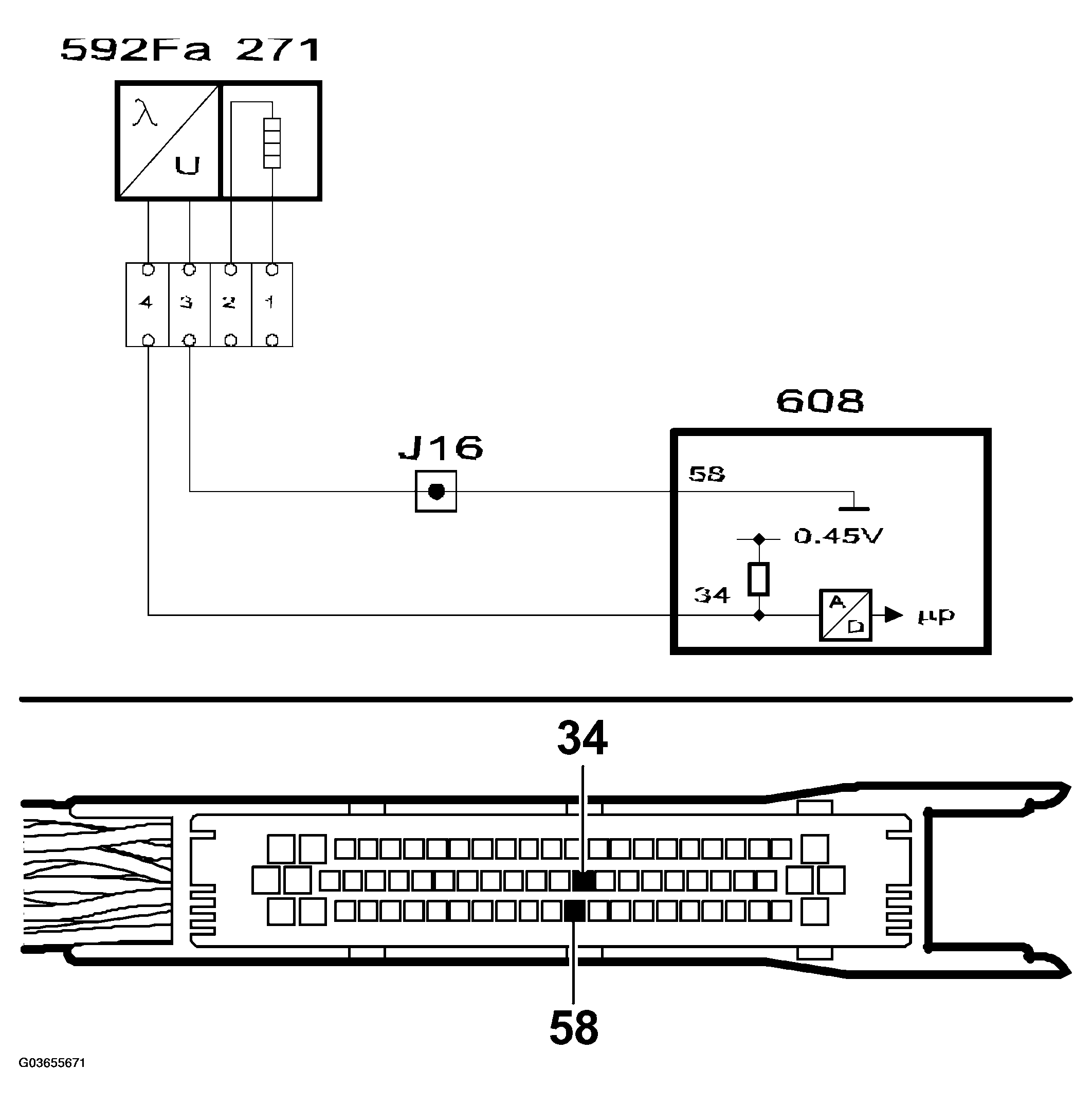

Fig 1: Identifying O2S Circuit Diagram - No Activity Detected Sensor 1

G03655671

Courtesy of SAAB-SCANIA OF AMERICA, INC.
