DTC P0133: O2S Circuit - Slow Response (Sensor 1): Notes

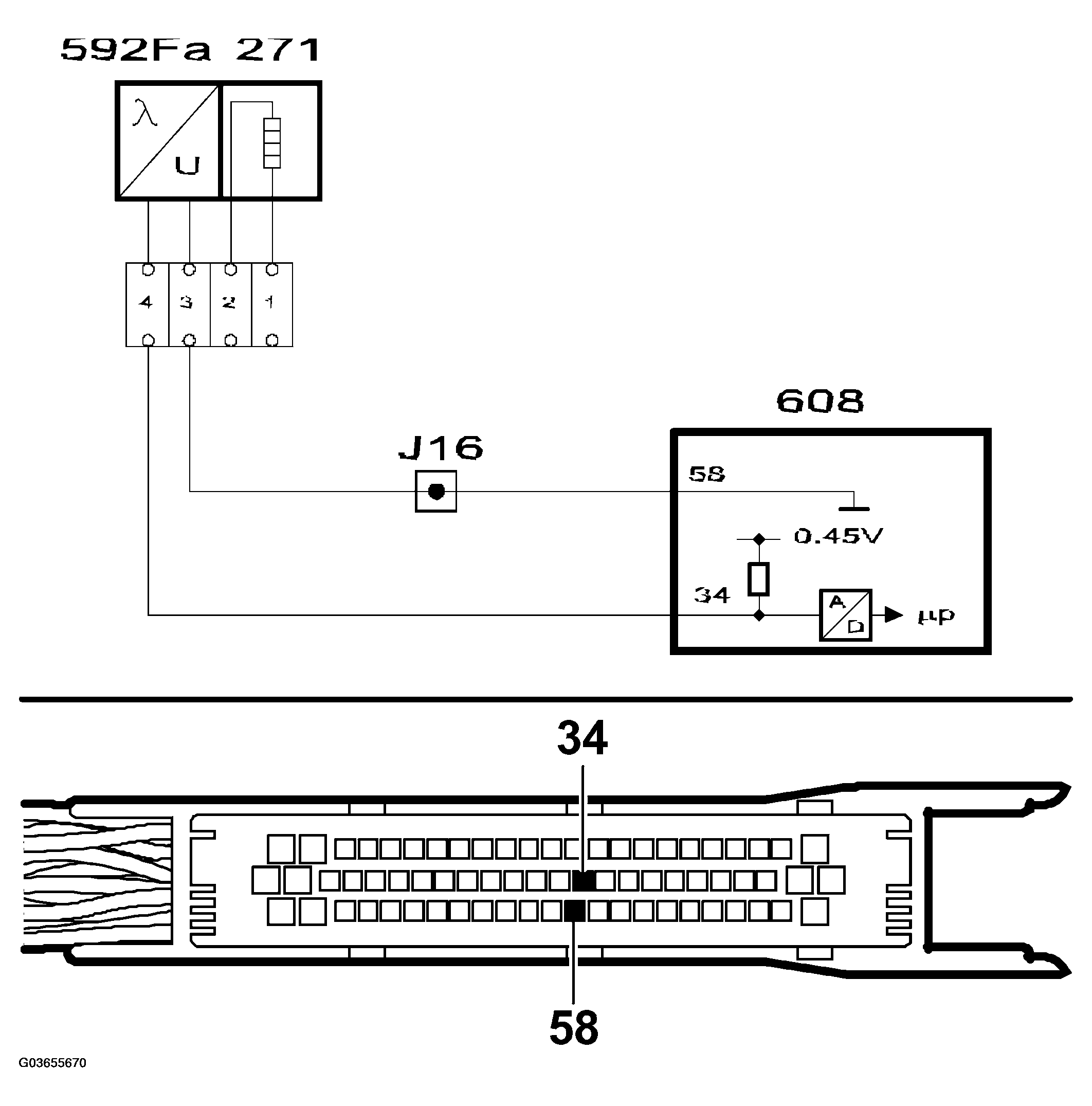

Fig 1: Identifying O2S Circuit Diagram - Slow Response Sensor 1

G03655670

Courtesy of SAAB-SCANIA OF AMERICA, INC.
